Product Info Plastic modular chain Accessories

We have a wide lineup of conveyor peripheral parts such as dedicated sprockets, idlers, Plastic rail, set collars, chain guide parts, frame support parts, product guide parts, and bearing units.

Please click on the images below to see how to use each accessory.

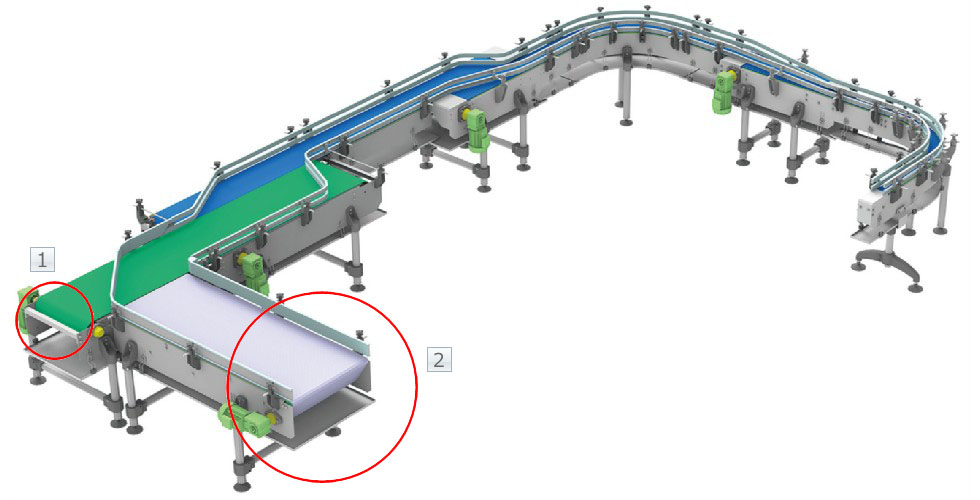

Plastic modular chain Accessories





×
(You can move it by dragging it)

Sprocket

  • ・Application

    This product transmits the motor's power to the chain.

    Please attach it to the conveyor drive shaft before use.

  • ・Usage image

    Sprocket

    [Click to enlarge]

To the list

×
(You can move it by dragging it)

Idler wheels/idler sprockets

  • ・Application

    Please attach it to the driven shaft of the conveyor.

To the list

×
(You can move it by dragging it)

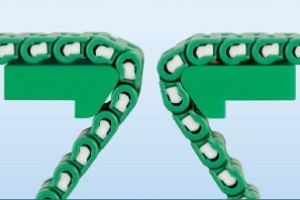

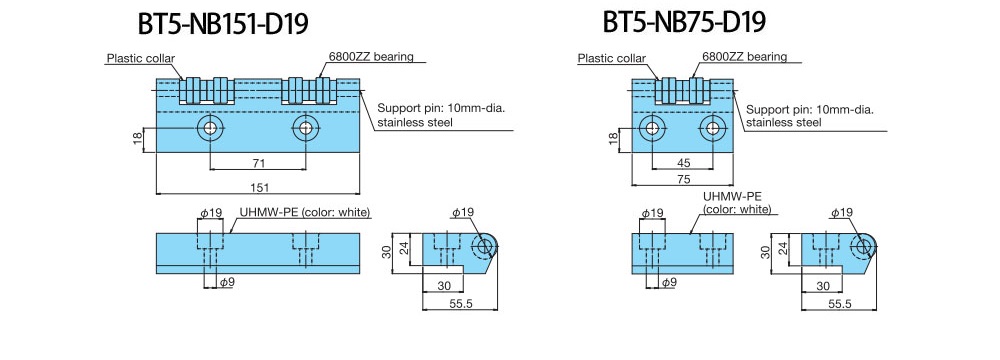

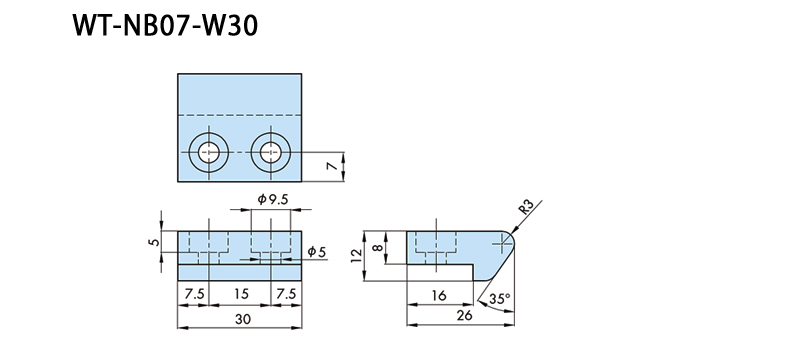

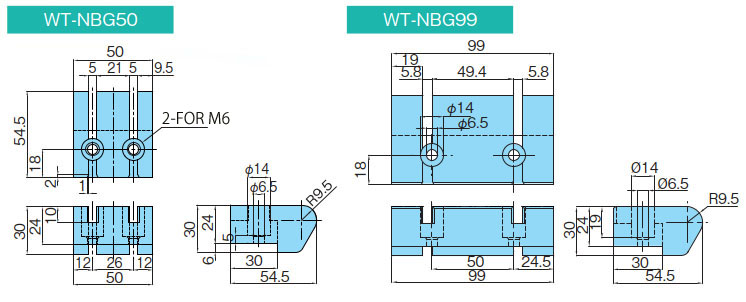

Nose bar

  • ・Application

    By installing a nose bar at the end of the conveyor, the dead space between conveyors can be reduced.

    Ideal for transporting small items where there is concern that items may remain between conveyors.

  • ・Usage image

    Nose bar

    [Click to enlarge]

To the list

×
(You can move it by dragging it)

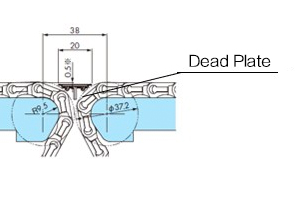

Dead Plate

  • ・Application

    in-line together conveyor with end nose bars supports smooth transfers.

  • ・Usage image

    Dead Plate

    [Click to enlarge]

To the list

×
(You can move it by dragging it)

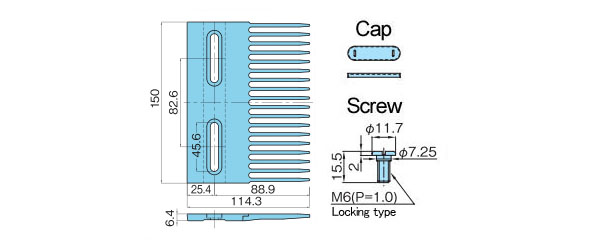

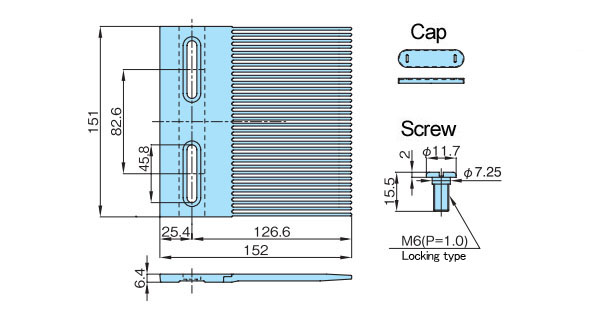

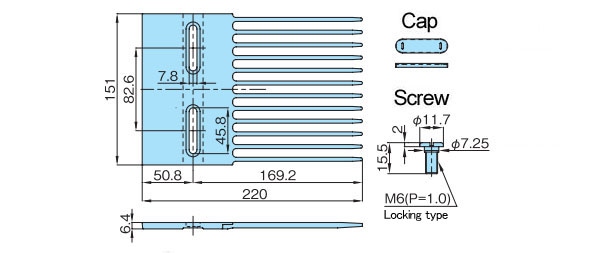

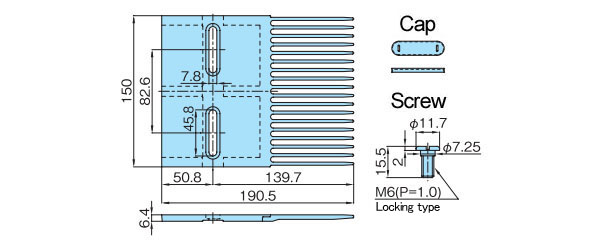

Transfer Plate

  • ・Application

    Eliminates gaps at the connecting points of raised rib type Plastic modular chain.

    This prevents the transported items from getting caught or entangled, allowing for smooth transfers.

  • ・Usage image

    Transfer Plate

    [Click to enlarge]

To the list

List of accessories for Plastic modular chain

Chain model numberApplicable accessories

Accessory model numberof


*Click on the model number to display detailed information. Click on the dimensional drawing to enlarge.

Sprocket

Applicable series name
(Click for a list
Display.)		 Applicable chain type Applicable chain
pitch
mm		 Number of teeth
Wide Type Mold-to-width type

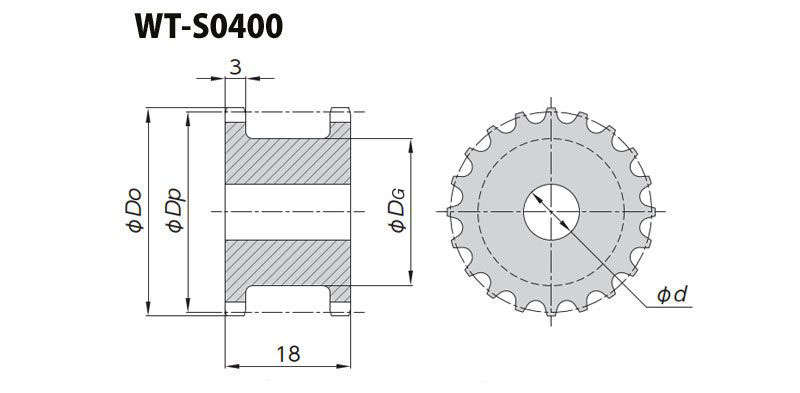

WT0400　 WT0405-W - 4.5 16, 20, 24, 32, 40

Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 pilot bore
mm		 type
WT-S0400-16T 16 23.07 Made to order
We will process it		 Φ8 Integrated type
WT-S0400-20T 20 28.77
WT-S0400-24T 24 34.48
WT-S0400-32T 32 45.91
WT-S0400-40T 40 57.35

This sprocket is not heat or chemical resistant.
If you are using the product in a special environment or under special conditions, please contact us.
WT0700　 WT0705-W WT0705-M 7.5 15, 24, 32, 48




Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type
WT-N0700-15T18 15 36.07 Φ18 Integrated type

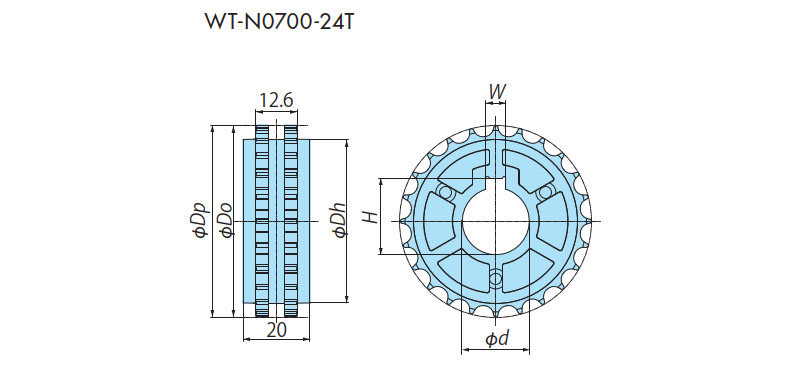

WT-N0700-24T■ 24 57.46 Φ20, Φ25, Φ30
WT-N0700-32T40S 32 76.52 □40
WT-N0700-48T■ 48 114.67 Φ30, □40, Φ50
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-N0700-24T20 24 57.46 Φ20 Integrated type
WT-N0700-24T25 Φ25
WT-N0700-24T30 Φ30
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-N0700-48T30 48 114.67 Φ30 Integrated type
WT-N0700-48T40S □40

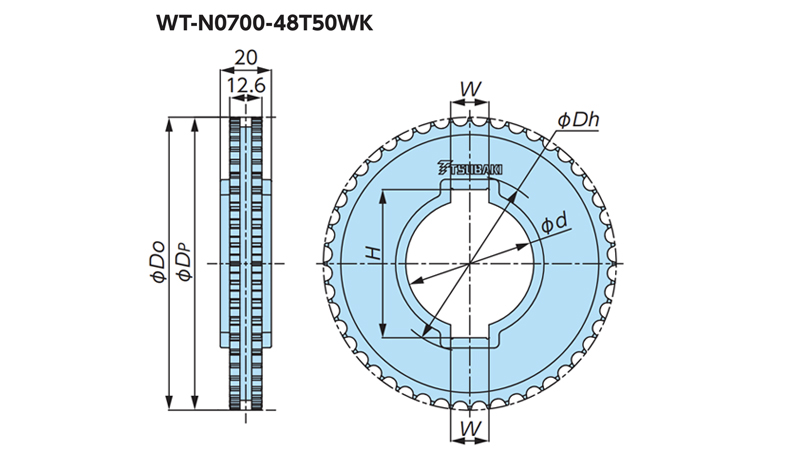

WT-N0700-48T50WK Φ50
BT4 - BTC4-M 12.7 10, 24


Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type

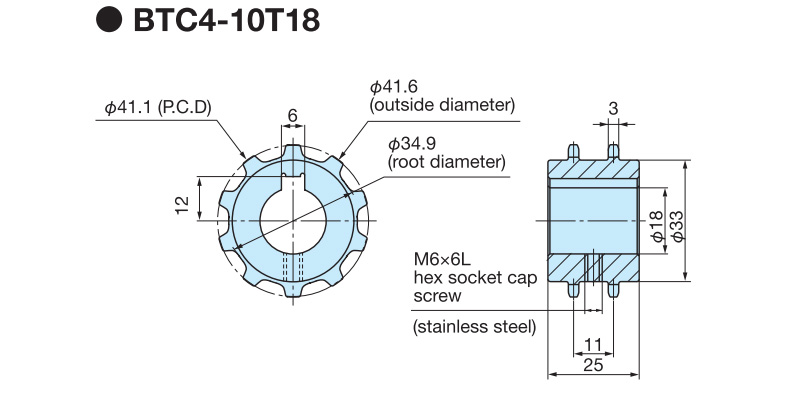

BTC4-10T18 10 41.1 Φ18 Integrated type

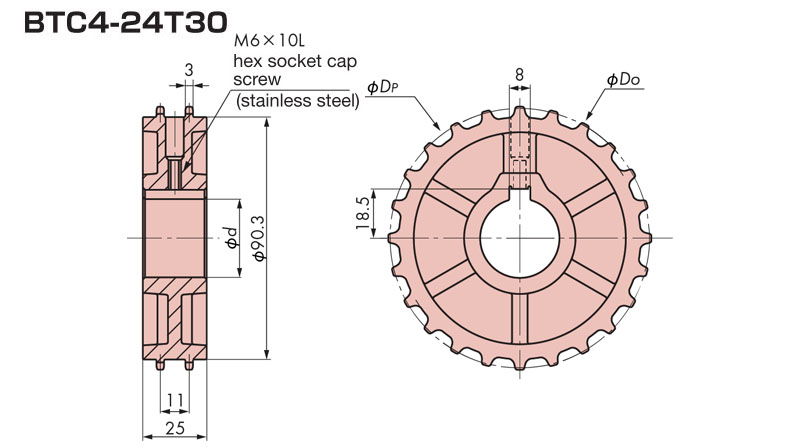

BTC4-24T30 24 97.3 Φ30
WT1300 WT1306-W - 13.1 15, 24, 28, 36



One-piece (molded) sprocket
Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type
WT-N1300-15T25 15 63.01 Φ25 Integrated type
WT-N1300-15T25S □25

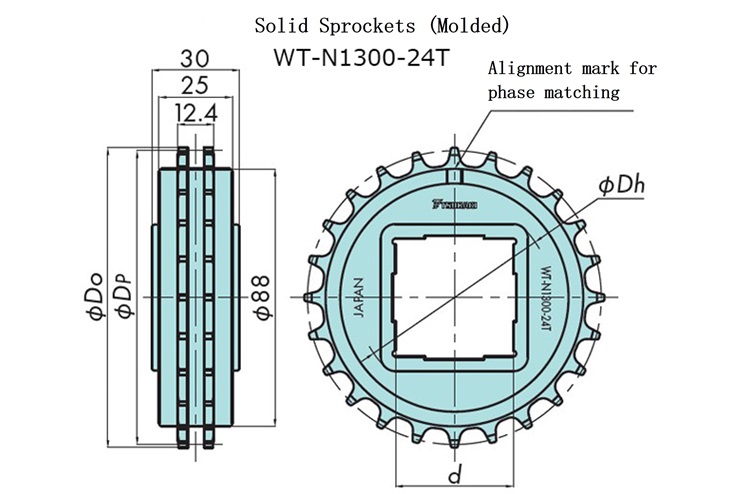

WT-N1300-24T25 24 100.36 Φ25
WT-N1300-24T30 Φ30
WT-N1300-24T40S □40

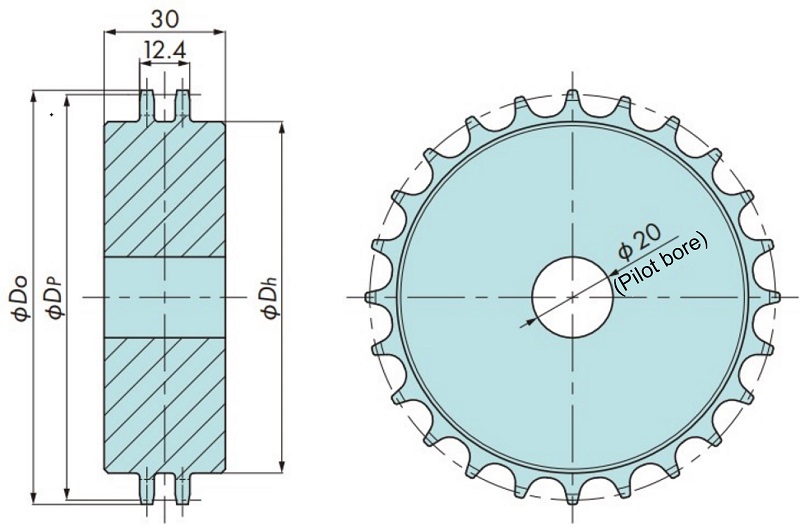

Integrated sprocket (machined type)
Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type
WT-S1300-24T 24 100.36 We will consider production upon request. Integrated type
WT-S1300-28T 28 117.00
WT-S1300-36T 36 150.31
WT1500/1510/3000/3080,BT5　 BTN5, BTN5-A, WT1505G-K, WT1505GTO-K, WT1505GTORN-K, WT1505-K, WT1505RN-K, WT1506-K, WT1515F-W, WT1515G-W, WT1515T-F-W, WT1515VG-W, WT1515-W, WT1516F-W, WT1516T-F-W, WT1516-W, WT3005G-K, WT3005-K, WT3086G-K, WT3086-K WT1505G-M, WT1505GTO-M, WT1505TOD-M, WT1515G-M, WT3005G-M, WT3086G-M 15, 30 12, 18, 24, 25, 27, 31, 32, 33







Integrated (molded) sprocket (N1500)
Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type
WT-N1500-12T30 12 57.96 Φ30 Integrated type
WT-N1500-18T40S 18 86.38 □40 Integrated type
分割形スプロケット(SW1500)
Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type

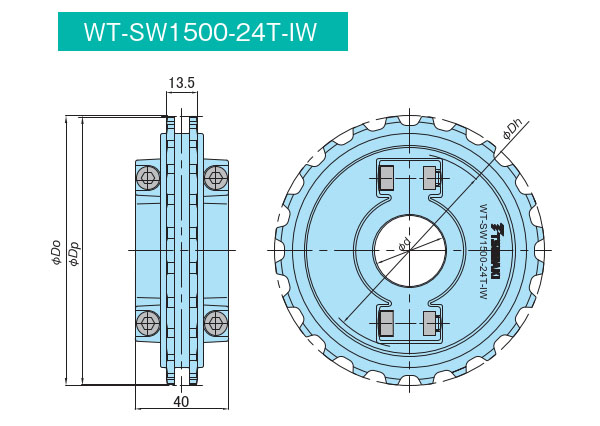

WT-SW1500-24T■ 24 114.9 Φ25, Φ30, Φ35, Φ40, □40 split type
WT-SW1500-32T■ 32 153.0 □40, □50, □60
WT-SW1500-33T■ 33 157.8 □40, □65
×
(You can move it by dragging it)
■Split sprocket (SW1500)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-SW1500-24T25 24 114.9 Φ25 split type
WT-SW1500-24T30 Φ30
WT-SW1500-24T35 Φ35
WT-SW1500-24T40 Φ40
WT-SW1500-24T40S □40
×
(You can move it by dragging it)
■Split sprocket (SW1500)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-SW1500-32T40S 32 153.0 □40 split type
WT-SW1500-32T50S □50
WT-SW1500-32T60S □60
×
(You can move it by dragging it)
■Split sprocket (SW1500)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-SW1500-33T40S 33 157.8 □40 split type
WT-SW1500-33T65S □65
Integrated sprocket (S1500)
Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 pilot bore
mm		 type

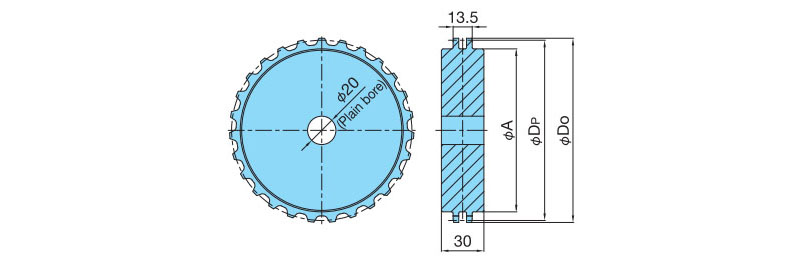

WT-S1500-24T 24 114.9 Made to order
We will process it		 Φ20 Integrated type
WT-S1500-25T 25 119.7
WT-S1500-27T 27 129.2
WT-S1500-31T 31 148.3
WT-S1500-32T 32 153.0
WT-S1500-33T 33 157.8
WT1900　 WT1907-K - 19.05 17, 21, 24, 25


Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type

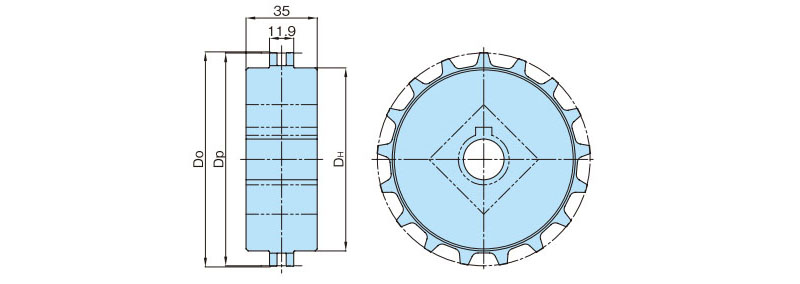

WT-S1900-17T 17 104.6 Made to order
We will process it		 Integrated type
WT-S1900-21T 21 129.0
WT-S1900-24T 24 147.3
WT-S1900-25T 25 153.4

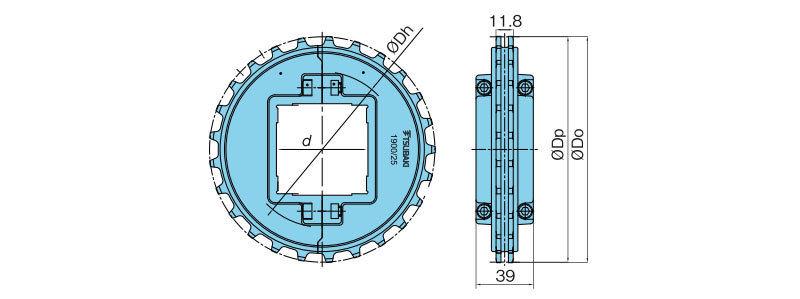

WT-SW1900-25T■ 25 153.35 Φ40, Φ60 split type
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-SW1900-25T40S 25 153.35 Φ40 split type
WT-SW1900-25T60S Φ60
BT6　 BTC6, BTC6RN, BTC6RN-T, BTC6-T, BTCP6, BTN6, BTO6, BTO6RN - 19.05 10, 24


One-piece sprocket
Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type

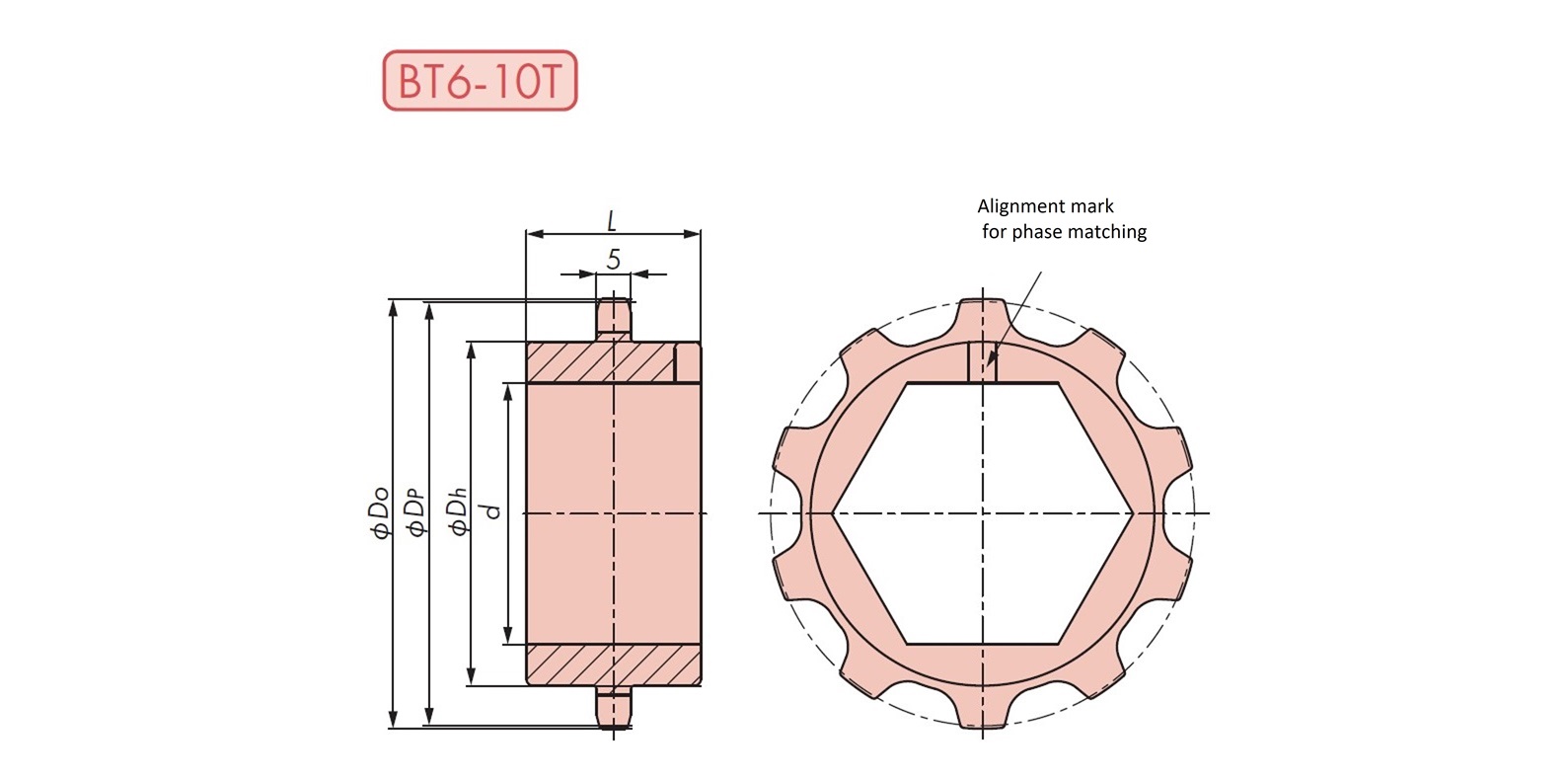

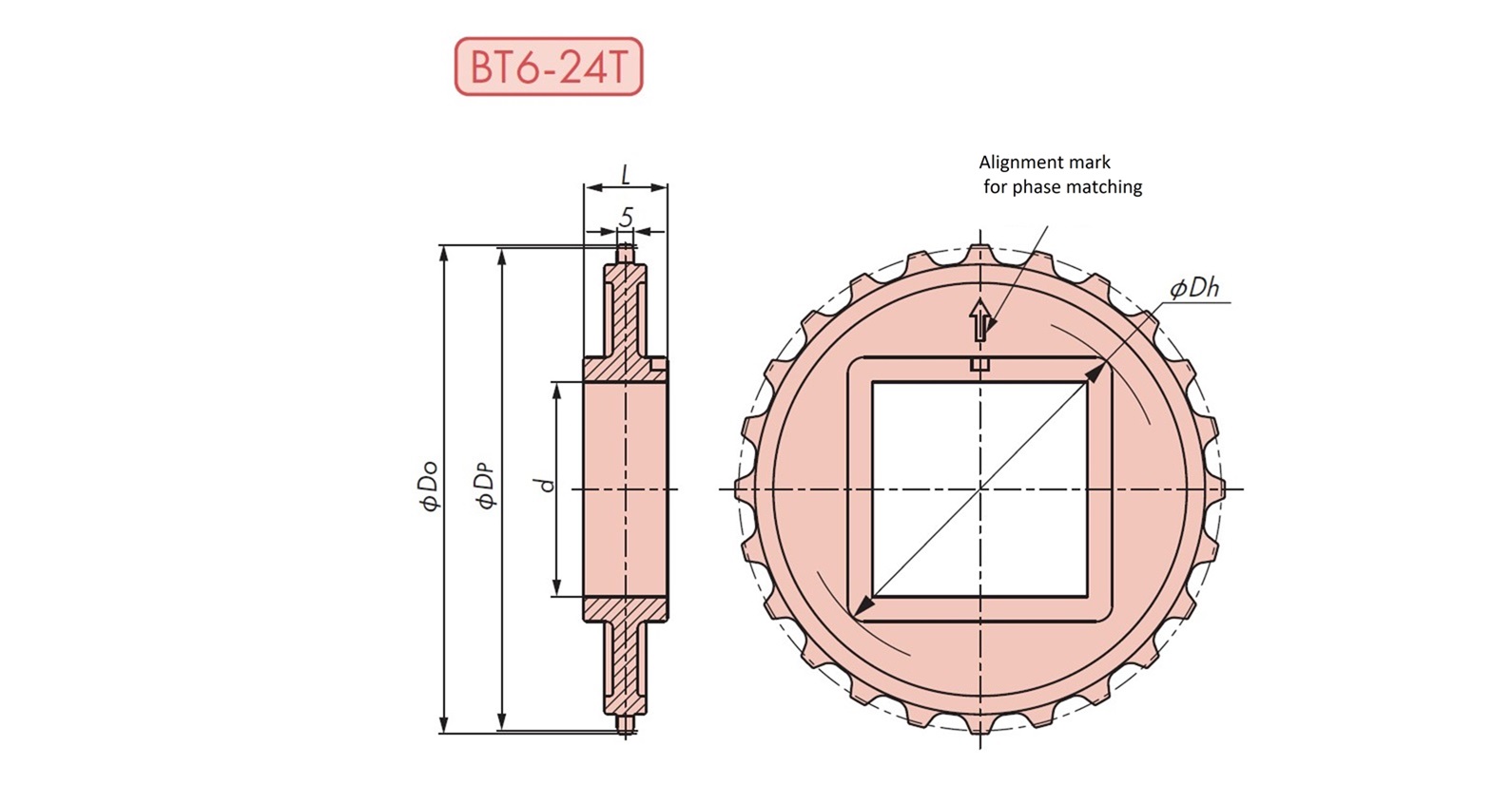

BT6-10T-38H 10 61.65 Hexagonal, width across flats 38 Integrated type
BT6-24T-40S 24 145.95 □40
BT6-24T-50S □50
BT6-24T-65S □65
Integrated sprocket chain specifications: Heat-resistant and high-speed (KV150, K250) specifications only
Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type
BT6-KV-10T-38H 10 61.65 Hexagonal, width across flats 38 Integrated type
BT6-KV-24T-50S 24 145.95 □50
BT6-KV-24T-65S □65
×
(You can move it by dragging it)
Model numberChain specifications
For KV150, KV250		Number of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
BT6-24T-40S --- 24 145.95 □40 Integrated type
BT6-24T-50S BT6-KV-24T-50S □50
BT6-24T-65S --- □65
WT2250/2510　 WT2250FG, WT2250VG, WT2515F-W, WT2515G-W, WT2515-W WT2515G-M 25.4 16, 18





Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type

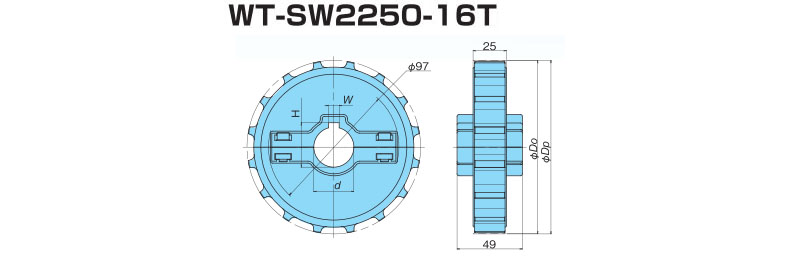

WT-SW2250-16T■ 16 130.20 Φ30, Φ40, □40 split type
WT-SW2510-18T■ 18 146.27 Φ30, Φ40, □40
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-SW2250-16T30 16 130.20 Φ30 split type
WT-SW2250-16T40 Φ40

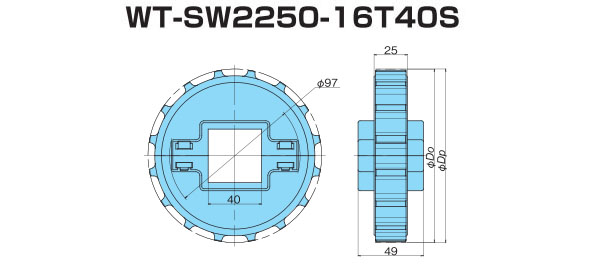

WT-SW2250-16T40S □40
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type

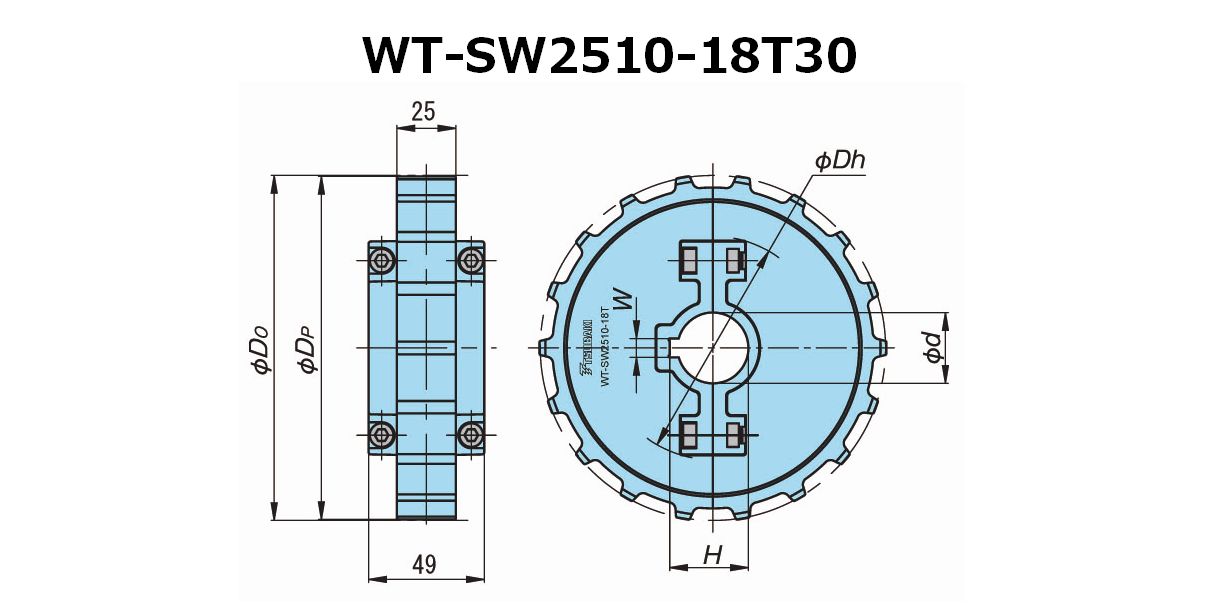

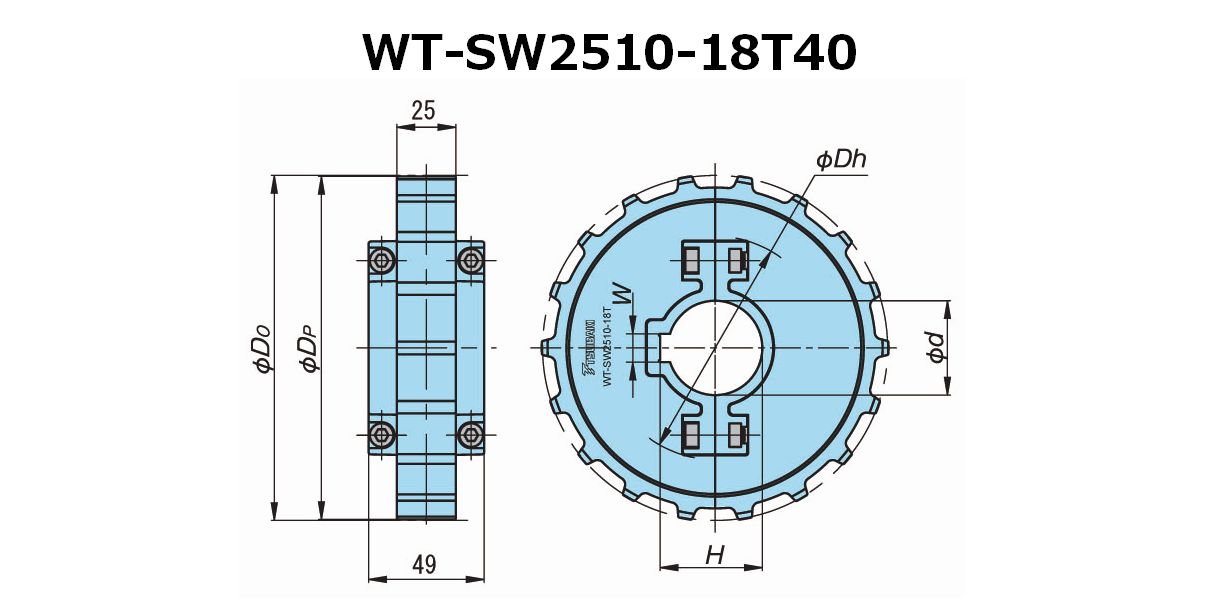

WT-SW2510-18T30 18 146.27 Φ30 split type
WT-SW2510-18T40 Φ40
WT-SW2510-18T40S □40
WT2520　 WT2525-K, WT2525VG-K WT2525-M, WT2525VG-M 25.4 18,22



Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type
WT-N2520-18T40 18 146.27 Φ40 Integrated type
WT-N2520-18T■S □38.1, □40, □50.8, □60

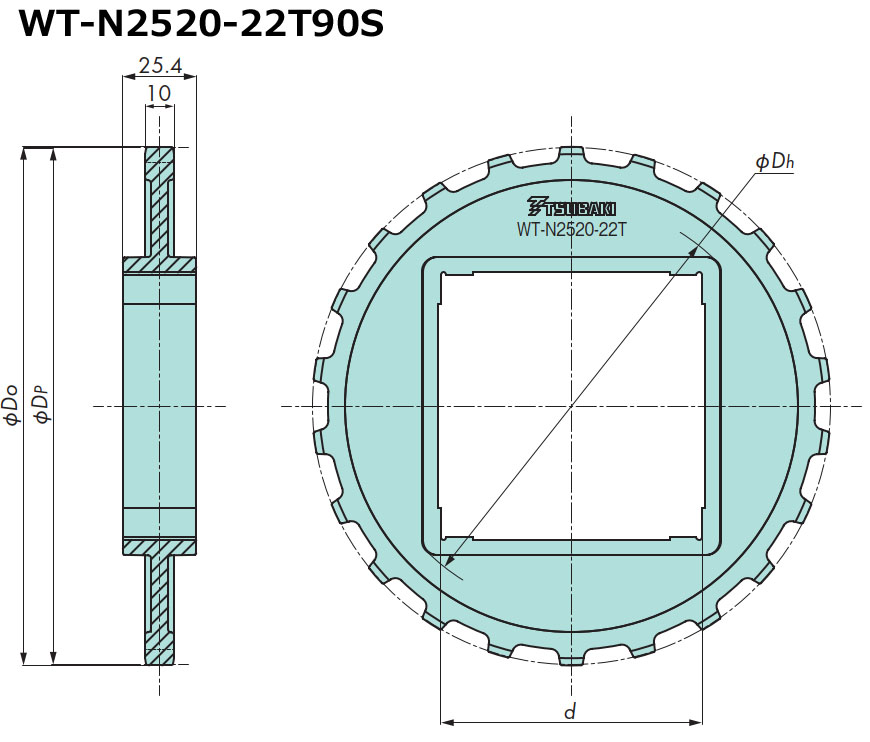

WT-N2520-22T90S 22 178.48 □90
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type

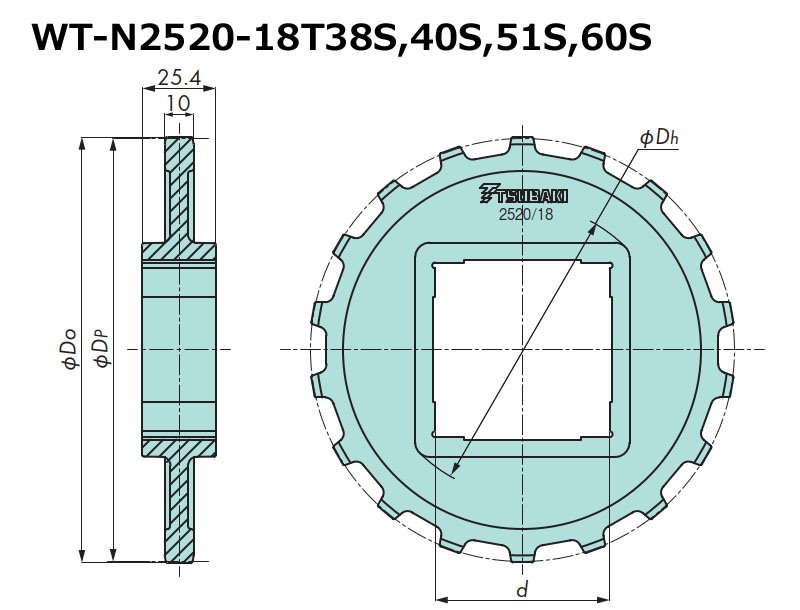

WT-N2520-18T38S 18 146.27 □38.1 Integrated type
WT-N2520-18T40S □40
WT-N2520-18T51S □50.8
WT-N2520-18T60S □60
WT2500/2530,BT8　 BTM8H, WT2505-K, WT2506-K BTC8H-M, BTM8H-M, WT2505G-M, WT2505-M, WT2505TOD-M, WTM2535G-M 25.4 16, 18, 21



分割形スプロケット(SW2500)
Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type
WT-SW2500-16T■ 16 130.20 Φ25, Φ30, Φ35, Φ40 split type
WT-SW2500-18T■ 18 146.27 Φ25, Φ30, Φ35, Φ40
WT-SW2500-21T■ 21 170.40 Φ25, Φ30, Φ35, Φ40
×
(You can move it by dragging it)
■Split sprocket (SW2500)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-SW2500-16T25 16 130.20 Φ25 split type
WT-SW2500-16T30 Φ30
WT-SW2500-16T35 Φ35
WT-SW2500-16T40 Φ40
×
(You can move it by dragging it)
■Split sprocket (SW2500)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-SW2500-18T25 18 146.27 Φ25 split type
WT-SW2500-18T30 Φ30
WT-SW2500-18T35 Φ35
WT-SW2500-18T40 Φ40
×
(You can move it by dragging it)
■Split sprocket (SW2500)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-SW2500-21T25 21 170.40 Φ25 split type
WT-SW2500-21T30 Φ30
WT-SW2500-21T35 Φ35
WT-SW2500-21T40 Φ40
Integrated sprocket (S2500)
Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type
WT-S2500-16T 16 130.20 Upon request, we will consider production.
We will respond to your request.		 Integrated type
WT-S2500-18T 18 146.27
WT-S2500-21T 21 170.42
BT8　 BTC8, BTC8-A - 25.4 12, 18



Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type

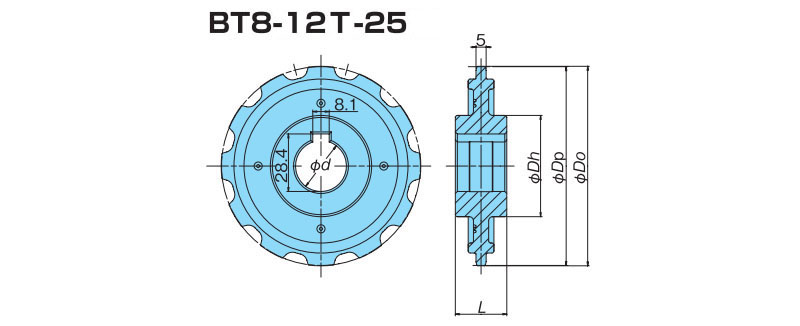

BT8-12T-25 12 98.14 Φ25.1 Integrated type
BT8-18T-■ 18 146.27 Φ25.1, □40, □50, □65
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type

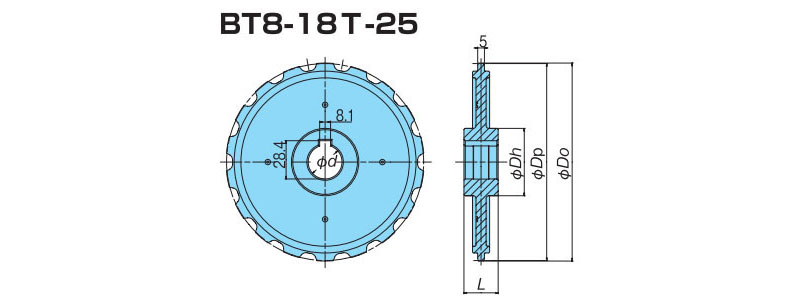

BT8-18T-25 18 146.27 Φ25.1 Integrated type

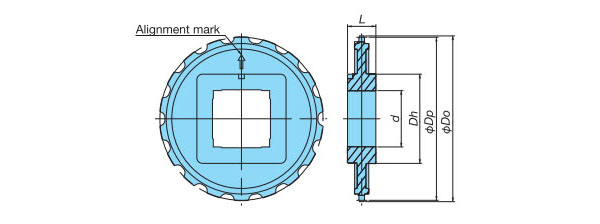

BT8-18T-40S □40
BT8-18T-50S □50
BT8-18T-65S □65
BT8　 - BTC8H-M, BTM8H-M 25.4 12, 16





Shaft hole and keyway processed products
Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type
BT8H-12T■-CS 12 98.14 Φ25, Φ30 Integrated type

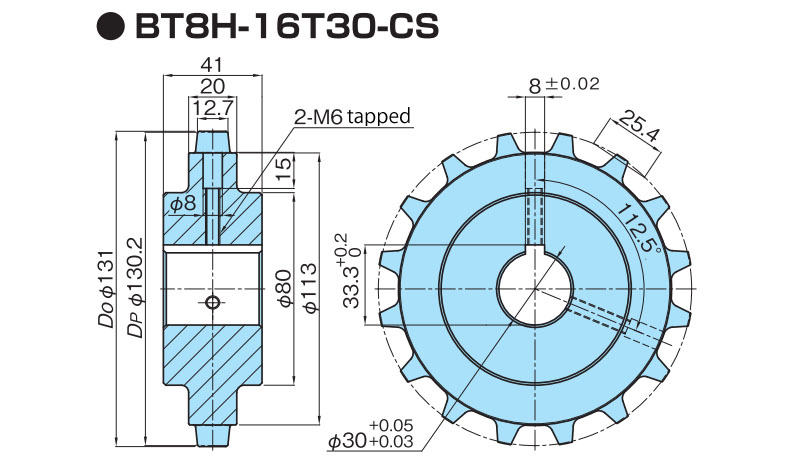

BT8H-16T30-CS 16 130.20 Φ30
×
(You can move it by dragging it)
■ Shaft hole and keyway processed products
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
BT8H-12T25-CS 12 98.14 Φ25 Integrated type

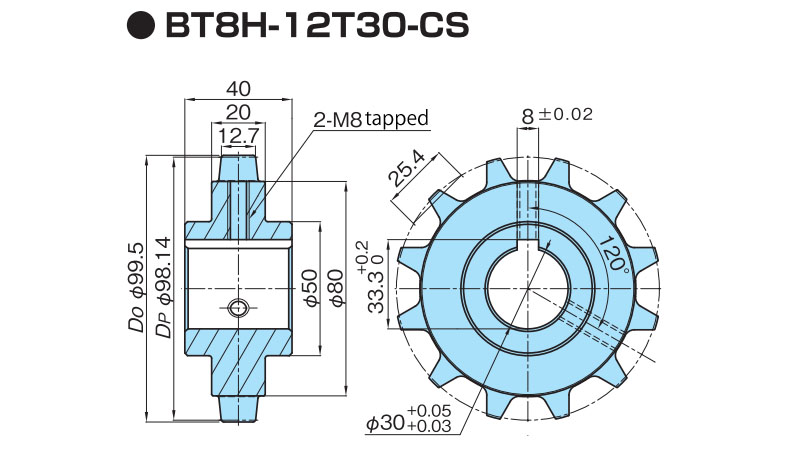

BT8H-12T30-CS Φ30
Pilot bore product
Model number Number of teeth Pitch Circle Diameter
mm		 pilot bore
mm		 type

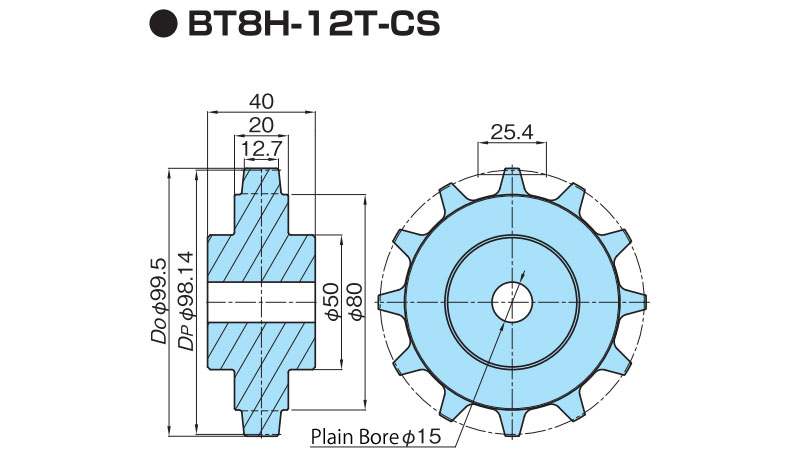

BT8H-12T-CS 12 98.14 Φ15 Integrated type

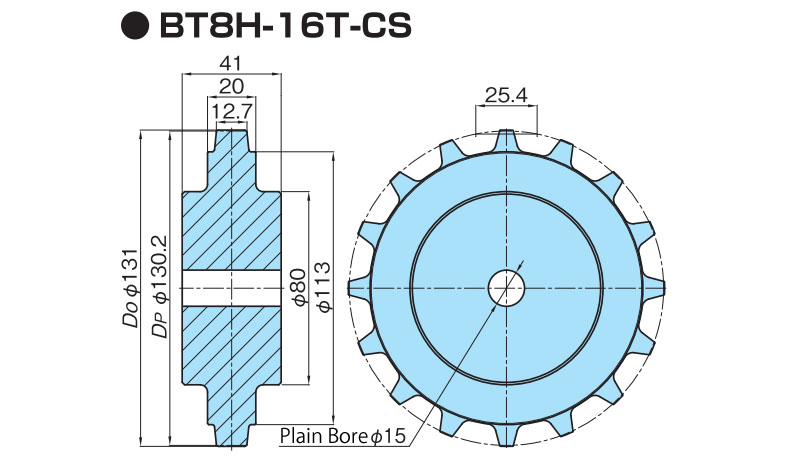

BT8H-16T-CS 16 130.20
BT8　 - BTO8-M 25.4 12, 18


Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type
BTO8-12T■ 12 98.14 Φ25, Φ30 Integrated type

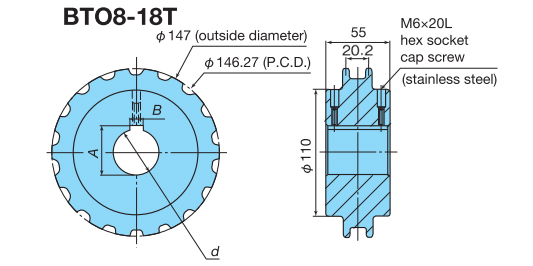

BTO8-18T■ 18 146.27 Φ30, Φ40
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type

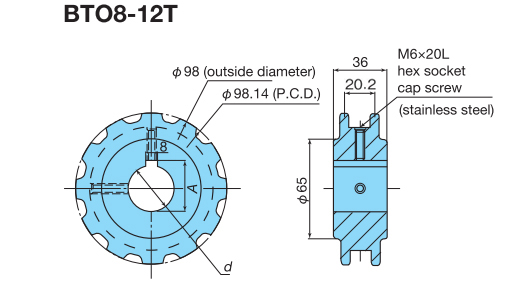

BTO8-12T25 12 98.14 Φ25 Integrated type
BTO8-12T30 Φ30
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
BTO8-18T30 18 146.27 Φ30 Integrated type
BTO8-18T40 Φ40
WT2700　 WT2705-K, WT2706-K - 27.2 9, 12, 18, 20, 28







Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type

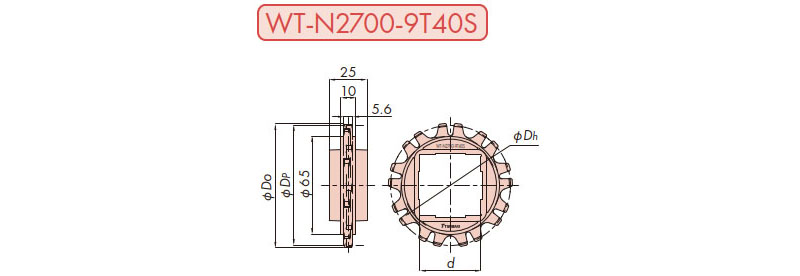

WT-N2700-9T■ 9 79.53 Φ25, □40 Integrated type

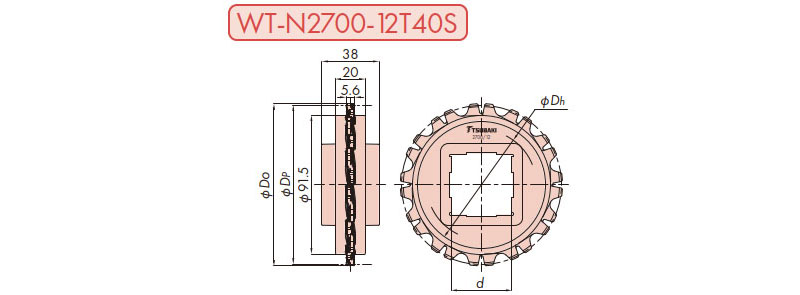

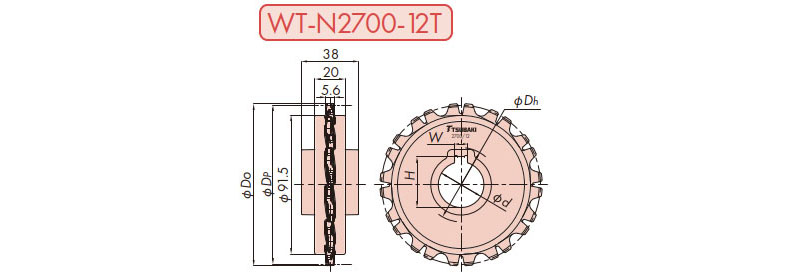

WT-N2700-12T■ 12 105.09 Φ30, Φ40, □40
WT-N2700-18T■ 18 156.64 □40, □60, □65

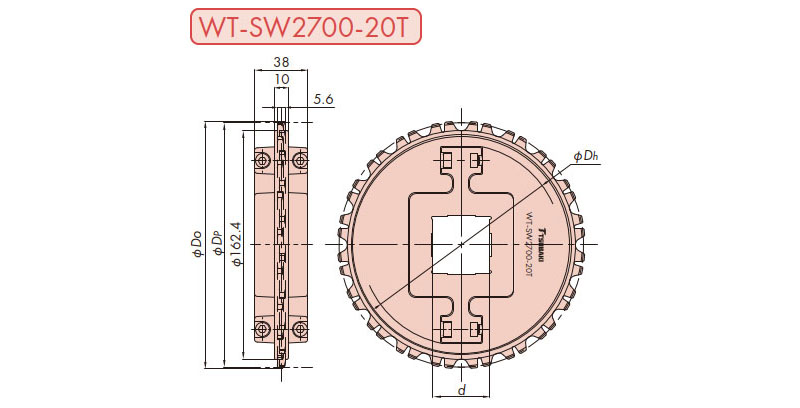

WT-N2700-20T■ 20 173.90 □40, □60 split type

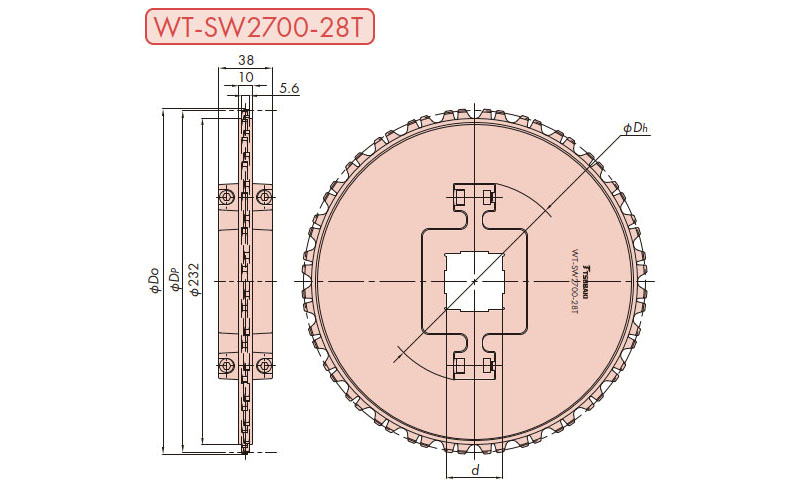

WT-N2700-28T■ 28 242.93 □40, □60
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-N2700-9T25 9 79.53 Φ25 Integrated type
WT-N2700-9T40S □40
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-N2700-12T30 12 105.09 Φ30 Integrated type
WT-N2700-12T40 Φ40
WT-N2700-12T40S □40
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-N2700-18T40S 18 156.64 □40 Integrated type
WT-N2700-18T60S □60
WT-N2700-18T65S □65
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-SW2700-20T40S 20 173.90 □40 split type
WT-SW2700-20T60S □60
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-SW2700-28T40S 28 242.93 □40 split type
WT-SW2700-28T60S □60
WTU3010　 WTU3015T-K - 30 14


Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type

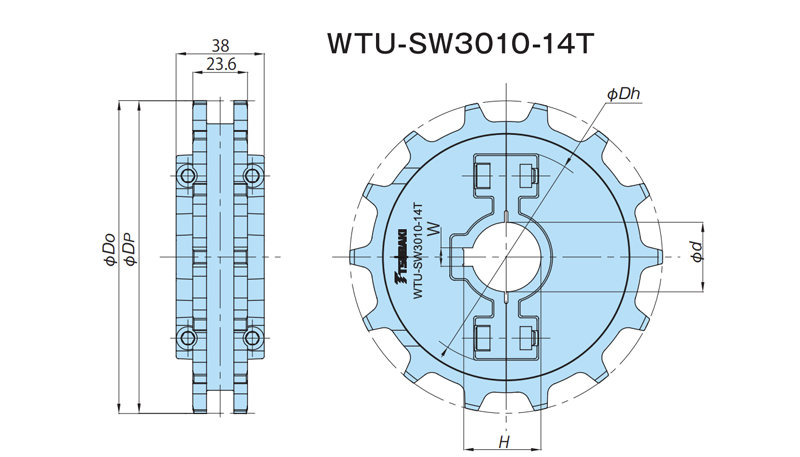

WTU-SW3010-14T■ 14 134.82 Φ30, Φ40, □40.3 split type
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WTU-SW3010-14T30 14 134.82 Φ30 split type
WTU-SW3010-14T40 Φ40
WTU-SW3010-14T40S □40.3
WT3080　 - WT3085-C 30 27, 31, 33

Model number Number of teeth effective number of teeth Pitch Circle Diameter
mm		 pilot bore
mm		 type

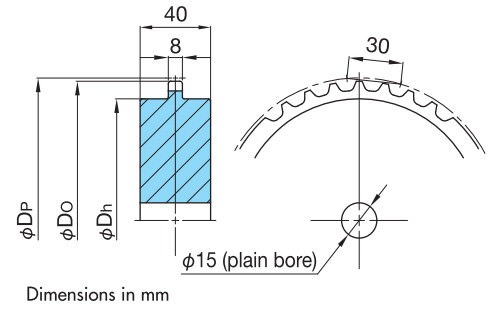

WT-S3085C3-27T 27 13½ 129.7 Φ15 Integrated type
WT-S3085C3-31T 31 15½ 148.5
WT-S3085C3-33T 33 16½ 158.0
WT3100　 WT3109-W - 31.75 16, 18



Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type
WT-N3100-16T■ 16 162.75 □40, □60, Φ60 Integrated type
WT-N3100-18T■ 18 182.84 □40, □60
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type

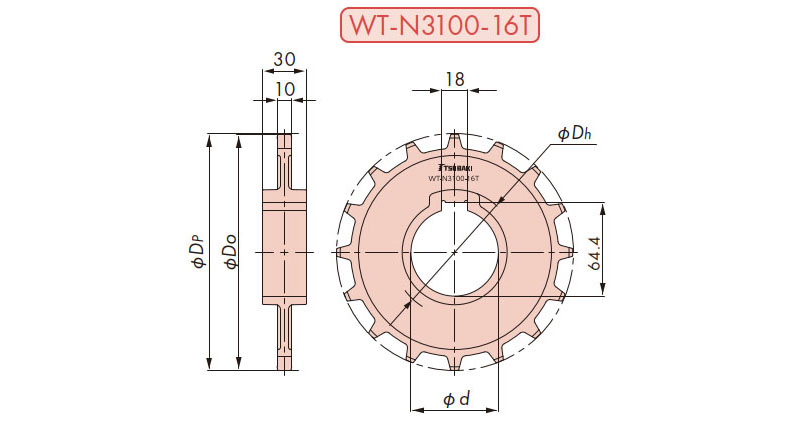

WT-N3100-16T40S 16 162.75 □40 Integrated type
WT-N3100-16T60S □60
WT-N3100-16T60 Φ60
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-N3100-18T40S 18 182.84 □40 Integrated type
WT-N3100-18T60S □60
WT3810　 WT3816-K - 38 18, 20, 24

Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type
WT-S3816-18T 18 218.8 Made to order
We will process it		 Integrated type
WT-S3816-20T 20 242.9
WT-S3816-24T 24 291.1
WT3820　 WT3827-K - 38.1 8, 12

Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type

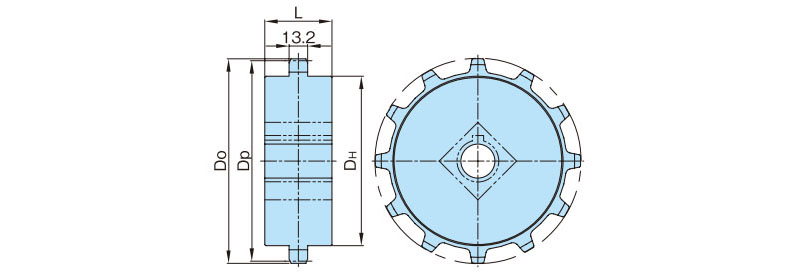

WT-S3820-8T 8 99.6 Made to order
We will process it		 Integrated type
WT-S3820-12T 12 147.2
WT3830　 WT3835-K, WT3835RN-K, WT3835-T, WT3835TRN-K WT3835G-M 38.1 21, 23, 24, 25


Machined engineering plastic products
Model number Number of teeth effective number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type
WT-S3830-1200T 24 12 147.2 Made to order
We will process it		 Integrated type
WT-S3830-1212T 25 12½ 153.2
Engineering plastic molded products
Model number Number of teeth effective number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type
TTP-21■ 21 10½ 129.26 Φ25, Φ30, Φ35, Φ40, Φ45 split type
TTP-23■ 23 11½ 141.22 Φ25, Φ30, Φ35, Φ40, Φ45
TTP-25■ 25 12½ 153.20 Φ25, Φ30, Φ35, Φ40, Φ45, Φ50
×
(You can move it by dragging it)
■ Engineering plastic molded products
Model numberNumber of teetheffective number of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
TTP-21T25 21 10½ 129.26 Φ25 split type
TTP-21T30 Φ30
TTP-21T35 Φ35
TTP-21T40 Φ40
TTP-21T45 Φ45
×
(You can move it by dragging it)
■ Engineering plastic molded products
Model numberNumber of teetheffective number of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
TTP-23T25 23 11½ 141.22 Φ25 split type
TTP-23T30 Φ30
TTP-23T35 Φ35
TTP-23T40 Φ40
TTP-23T45 Φ45
×
(You can move it by dragging it)
■ Engineering plastic molded products
Model numberNumber of teetheffective number of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
TTP-25T25 25 12½ 153.20 Φ25 split type
TTP-25T30 Φ30
TTP-25T35 Φ35
TTP-25T40 Φ40
TTP-25T45 Φ45
TTP-25T50 Φ50
BT16　 BTH16 - 50.8 16
Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type

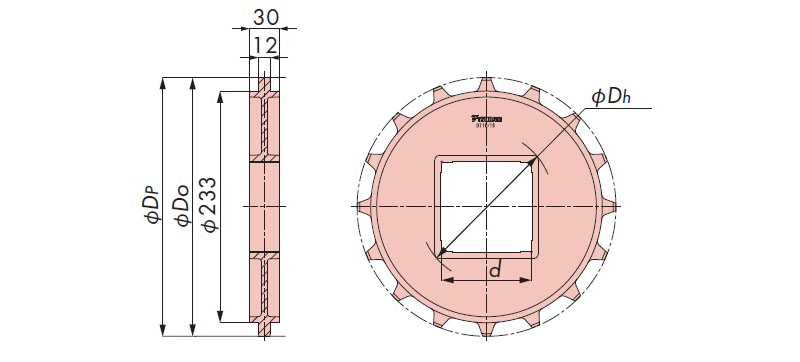

BT16-16T-60S 16 260.39 □60.1 Integrated type
BT16-16T-90S □90.1
WT5700　 WT5707-K - 57.15 9, 12, 14

Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type

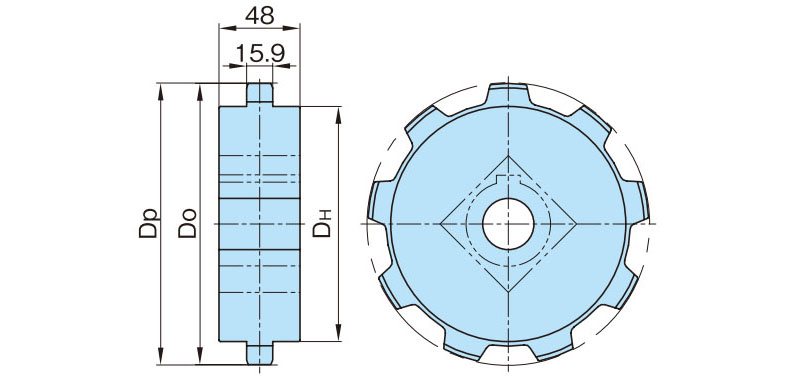

WT-S5707-9T 9 167.0 Made to order
We will process it		 Integrated type
WT-S5707-12T 12 220.8
WT-S5707-14T 14 256.8
WT6300　 WT6306-W - 63.5 16, 18, 20

Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type

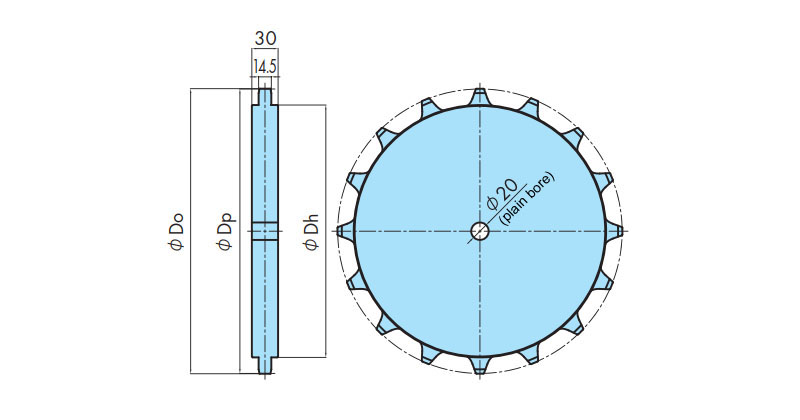

WT-S6300-16T 16 325.49 We will consider production upon request.
The standard is a square hole shape.		 Integrated type
WT-S6300-18T 18 365.68
WT-S6300-20T 20 405.92

idler wheel

Applicable series name
(Click for a list
Display.)		 Applicable chain type Applicable chain
pitch
mm		 Equivalent number of teeth
Wide Type Mold-to-width type
WT1500/1510/3000/3080,BT5　 BTN5, BTN5-A, WT1505G-K, WT1505GTO-K, WT1505GTORN-K, WT1505-K, WT1505RN-K, WT1506-K, WT1515F-W, WT1515G-W, WT1515T-F-W, WT1515VG-W, WT1515-W, WT1516F-W, WT1516T-F-W, WT1516-W, WT3005G-K, WT3005-K, WT3086G-K, WT3086-K WT1505G-M, WT1505GTO-M, WT1505TOD-M, WT1515G-M, WT3005G-M, WT3086G-M 15, 30 24, 32


Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type
WT-SW1500-24T■-IW 24 114.9 Φ30.3, Φ35.3, Φ40.3 split type
WT-SW1500-32T■-IW 32 153.0 Φ30.3, Φ35.3, Φ40.3
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-SW1500-24T30-IW 24 114.9 Φ30.3 split type
WT-SW1500-24T35-IW Φ35.3
WT-SW1500-24T40-IW Φ40.3
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-SW1500-32T30-IW 32 153.0 Φ30.3 split type
WT-SW1500-32T35-IW Φ35.3
WT-SW1500-32T40-IW Φ40.3
WT2250/2510　 WT2250FG, WT2250VG, WT2515F-W, WT2515G-W, WT2515-W WT2515G-M 25.4 16, 18


Model number Number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 type
WT-SW2250-16T■IW-M 16 130.20 Φ30, Φ40 split type
WT-SW2250-18T■IW-M 18 146.27 Φ30, Φ40
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type
WT-SW2250-16T30IW-M 16 130.20 Φ30 split type
WT-SW2250-16T40IW-M Φ40
×
(You can move it by dragging it)
Model numberNumber of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		type

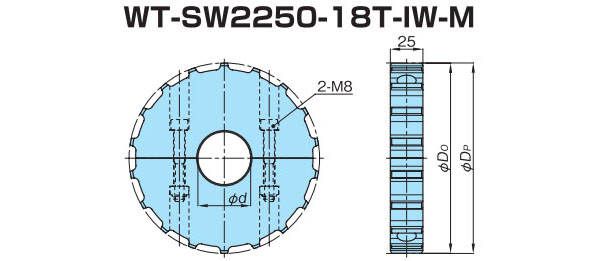

WT-SW2250-18T30IW-M 18 146.27 Φ30 split type
WT-SW2250-18T40IW-M Φ40
WTM2530/WT3830/BT8　 - BTO8-M, BTC8H-M, BTM8H-M, WT3835G-M, WTM2535G-M 25.4, 38.1 12, 18


Model number Equivalent number of teeth Outer diameter
mm		 Shaft hole dimensions
mm		 type

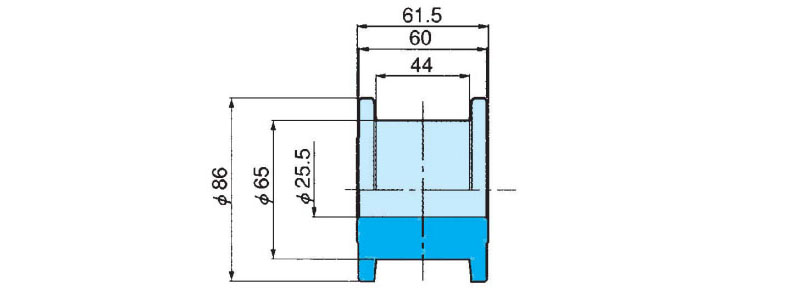

BTO8-12T25-IW 12 86 Φ25.5 Integrated type
TP-IW1221-25-RY 21 130.0 Φ25.3 split type
TP-IW1221-30-RY Φ30.3
TP-IW1221-35-RY Φ35.3
TP-IW1221-40-RY Φ40.3

Nose bar

Accessory Name
(Click for a list
Display.)		 Applicable chain model number
Wide Type Mold-to-width type
For WT0705-W only
Nose bar　 		WT0705-W -

type Basic model number Width
mm
Sliding Type WT-NB07-W50 50
For WT0705-M only
Nose bar　 		- WT0705-M
type Basic model number Width
mm
Sliding Type WT-NB07-W30 30
For WT1300/WT1500/1510 series only
Nose bar　 		WT1306-W, WT1515VG-W, WT1515-W, WT1516-W, WT1505GTO-K, WT1505GTORN-K, WT1505-K, WT1505RN-K, WT1506-K, WT1515G-W WT1505GTO-M, WT1515G-M



type Basic model number Width
mm
Sliding Type WT-NB 76, 151, 302, 50, 99
WT-NBG 50, 99
Bearing Type WT-NR 76(75.5), 151
For BT5 series only
Nose bar　 		BTN5, BTN5-A -

type Basic model number Width
mm
Bearing Type BT5-NB 75, 151

Dead Plate

Accessory Name
(Click for a list
Display.)		 Applicable chain model number
Wide Type Mold-to-width type
WT1500/WT1510,
For BT5 series only
Dead Plate　 		BTN5, BTN5-A, WT1505-K, WT1505RN-K, WT1506-K, WT1515-W, WT1516-W -

Basic model number Length
mm
WT-DP 400, 550, 700, 850

Transfer Plate

Accessory Name
(Click for a list
Display.)		 Applicable chain model number
Wide Type Mold-to-width type
For WT1900 series only
Transfer Plate　 		WT1907-K -


Model number Length
mm		 Width
mm
WT-TP1907-L114 114.3 150
WT-TP1907-L190 190.5 150
For WT3820 series only
Transfer Plate　 		WT3827-K -

Model number Length
mm		 Width
mm
WT-TP3827-L152 152 151
For WT5700 series only
Transfer Plate　 		WT5707-K -

Model number Length
mm		 Width
mm
WT-TP5707-L220 220 151
