Plastic Series closed type TKXT type
- Link
Shortening/lengthening
- A closed-type Cable Carrier (CABLEVEYOR) with the largest cross-sectional height within the link.
- - A wide range of interior width sizes are available, allowing for effective use of installation space.
- - The high interior height allows for ample storage space.
Features
Highly rigid steel brackets (various mounting methods possible)
Both the inner and outer sides can be quickly opened to insert cables.
The stays and covers are fastened to the links with bolts.
The width size (between the minimum and maximum values) of the aluminum stays can be set in 1mm increments.
The width size (between the minimum and maximum values) of the aluminum cover can also be set in 1mm increments.
You can choose the partition specifications depending on how you want to store cables.
Interchangeable sliding shoe
Clamp rails can be attached
1. Inner width can be specified in 1mm increments
The aluminum cover can be set in 1mm increments, so the inner width can be specified in 1mm increments between the minimum and maximum values.

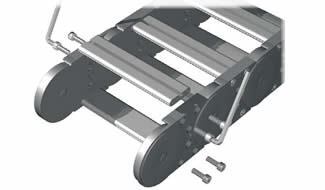

2. stable structure
The cover is fastened with links and bolts, so it remains stable even at its widest size.
3. Supports multi-level partitions
The storage space can be divided into multiple levels, allowing for greater flexibility in layout.
Model number display example
| TKXT | 165 | H105 | - | MD | 600 | R350 | + | 21L | - | FOA | - | MOA |
| ｜ Variety symbol |
｜ pitch mm |
｜ Inner Height mm |
｜ ｜ ｜ ｜ |
｜ Inner width mm |
｜ bending radius mm |
｜ Number of links L |
｜ Brackets/Metal Fittings |
｜ Brackets/Metal Fittings |
||||
| Stay specifications | ||||||||||||
Product List
*Click to display detailed information.
| Cables ・Hose Maximum Outer Diameter mm |
Inner Height mm |
Inner width mm |
bending radius mm |
Pitch mm |
Product name |
|---|---|---|---|---|---|
| 98 | 108 | 200～1000 | 250 | 165 | TKXT165H105MD□□□R250 |
| 300 | TKXT165H105MD□□□R300 | ||||
| 350 | TKXT165H105MD□□□R350 | ||||
| 400 | TKXT165H105MD□□□R400 | ||||
| 450 | TKXT165H105MD□□□R450 | ||||
| 500 | TKXT165H105MD□□□R500 | ||||
| 550 | TKXT165H105MD□□□R550 |
