Water Screen Chain JAC type
- This chain is used in water screens and drainage machines at water treatment facilities.
- By combining materials, you can select the chain that best suits your application.
Specification
-
・NVJ: The most economical chain with high strength and wear resistance.
-
・PJ (PJH): A chain with excellent wear resistance and corrosion resistance.
-
・PJW (PJWH): Compatible with two flanges of the PJ series, suitable for preventing falling off from guide channel.
-
・SJ: This chain has the best corrosion resistance.
-
・SJW: Compatible with two flanges of the SJ series, suitable for preventing falling off from guide channel.
-
NSJ: 1.5 times the wear resistance between bushings and rollers compared to the SJ specification. NETIS registered (registration number: KT-230284-A)
-
NSJW: 1.5 times the wear resistance between bushings and rollers compared to the SJW specification. NETIS registered (registration number: KT-230284-A)
NSJ and NSJW specifications have been registered with NETIS.
-
・FP-SJW: A chain that uses resin F rollers to reduce running noise.
*PJH and PJWH are heavy-duty models. The heavy-duty models have wider plates on Inner link.
Attachments (please see the product list for details)
Y-type attachment for rake reversal type automatic water screen
(Attachment type: Y)

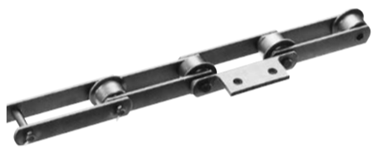

A2 attachment (Type 1) for fixed rake automatic water screens and drainage machines
(Attachment type A2T1)

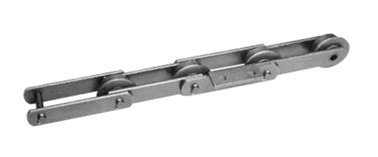

A2 attachment for sediment removal machine (type 2)
(Attachment type: A2T2)
*For PJW/SJW fixed rake automatic water screens and drainage machines
A2 attachment (type 1) (attachment type A2T1)
HB: The strong type has a wider inner plate.
Catalogs and Instruction Manuals
Product List
※Click to display detailed informationOpen all Close all
* Maximum allowable load is a value calculated based on our design standards and is the calculated strength. Unless otherwise specified, Maximum allowable load is used when selecting Large size conveyor chain.
This value varies depending on the manufacturer and is not a guaranteed value.
*Please contact us for average tensile strength.
For information on JAC type sprockets, click here.
| size | Roller Type |
Pitch | Roller Outer diameter |
Inner link Inner width |
|---|---|---|---|---|
| 152.4mm | Φmm | mm | ||
| JAC08152 | S | JAC08152S-NVJ | 22.2 | 26.2 |
| JAC10152 | R | JAC10152R-NVJ | 50.8 | 29 |
| F | JAC10152F-NVJ | 50.8 | ||
| S | JAC10152S-NVJ | 29 | ||
| JAC6205 | R | JAC6205R-NVJ | 65 | 35.9 |
| F | JAC6205F-NVJ | 65 | ||
| S | JAC6205S-NVJ | 34.9 | ||
| JAC21152 | R | JAC21152R-NVJ | 70 | 35.7 |
| F | JAC21152F-NVJ | 70 | ||
| S | JAC21152S-NVJ | 40.1 | ||
| JAC26152 | R | JAC26152R-NVJ | 80 | 55.6 |
| F | JAC26152F-NVJ | 80 | ||
| S | JAC26152S-NVJ | 44.5 |
| size | Roller Type |
Pitch | Roller Outer diameter |
Inner link Inner width |
|---|---|---|---|---|
| 152.4mm | Φmm | mm | ||
| JAC08152 | S | JAC08152S-PJ | 22.2 | 27 |
| JAC10152 | R | JAC10152R-PJ | 50.8 | 30 |
| F | JAC10152F-PJ | 50.8 | ||
| S | JAC10152S-PJ | 29 | ||
| JAC10152-H | R | JAC10152R-PJH | 50.8 | 30 |
| F | JAC10152F-PJH | 50.8 | ||
| S | JAC10152S-PJH | 29 | ||
| JAC6205 | R | JAC6205R-PJ | 65 | 37.1 |
| F | JAC6205F-PJ | 65 | ||
| S | JAC6205S-PJ | 34.9 | ||
| JAC6205-H | R | JAC6205R-PJH | 65 | 37.1 |
| F | JAC6205F-PJH | 65 | ||
| S | JAC6205S-PJH | 34.9 | ||
| JAC21152 | R | JAC21152R-PJ | 70 | 37.1 |
| F | JAC21152F-PJ | 70 | ||
| S | JAC21152S-PJ | 40.1 | ||
| JAC26152 | R | JAC26152R-PJ | 80 | 55.2 |
| F | JAC26152F-PJ | 80 | ||
| S | JAC26152S-PJ | 44.5 |
| size | Roller Type |
Pitch | Roller Outer diameter |
Inner link Inner width |
|---|---|---|---|---|
| 152.4mm | Φmm | mm | ||
| JAC10152 | F | JAC10152F-PJW | 50.8 | 36.2 |
| JAC10152-H | F | JAC10152F-PJWH | 50.8 | 36.2 |
| JAC6205 | F | JAC6205F-PJW | 65 | 44.5 |
| JAC6205-H | F | JAC6205F-PJWH | 65 | 44.5 |
| size | Roller Type |
Pitch | Roller Outer diameter |
Inner link Inner width |
|---|---|---|---|---|
| 152.4mm | Φmm | mm | ||
| JAC08152 | S | JAC08152S-SJ | 22.2 | 27 |
| JAC10152 | R | JAC10152R-SJ | 50.8 | 30 |
| F | JAC10152F-SJ | 50.8 | ||
| S | JAC10152S-SJ | 29 | ||
| JAC6205 | R | JAC6205R-SJ | 65 | 37.1 |
| F | JAC6205F-SJ | 65 | ||
| S | JAC6205S-SJ | 34.9 | ||
| JAC21152 | R | JAC21152R-SJ | 70 | 37.1 |
| F | JAC21152F-SJ | 70 | ||
| S | JAC21152S-SJ | 40.1 | ||
| JAC26152 | R | JAC26152R-SJ | 80 | 57.2 |
| F | JAC26152F-SJ | 80 | ||
| S | JAC26152S-SJ | 44.5 |
| size | Roller Type |
Pitch | Roller Outer diameter |
Inner link Inner width |
|---|---|---|---|---|
| 152.4mm | Φmm | mm | ||
| JAC10152 | F | JAC10152F-SJW | 50.8 | 36 |
| FP | JAC10152FP-SJW | |||
| JAC6205 | F | JAC6205F-SJW | 65 | 44.5 |
| FP | JAC6205FP-SJW | |||
| JAC21152 | F | JAC21152F-SJW | 70 | 44.5 |
| FP | JAC21152FP-SJW | |||
| JAC26152 | F | JAC26152F-SJW | 80 | 57.2 |
| size | Roller Type |
Pitch | Roller Outer diameter |
Inner link Inner width |
|---|---|---|---|---|
| 152.4mm | Φmm | mm | ||
| JAC08152 | S | JAC08152S-NSJ | 22.2 | 27 |
| JAC10152 | R | JAC10152R-NSJ | 50.8 | 30 |
| F | JAC10152F-NSJ | 50.8 | ||
| S | JAC10152S-NSJ | 29 | ||
| JAC6205 | R | JAC6205R-NSJ | 65 | 37.1 |
| F | JAC6205F-NSJ | 65 | ||
| S | JAC6205S-NSJ | 34.9 | ||
| JAC21152 | R | JAC21152R-NSJ | 70 | 37.1 |
| F | JAC21152F-NSJ | 70 | ||
| S | JAC21152S-NSJ | 40.1 | ||
| JAC26152 | R | JAC26152R-NSJ | 80 | 57.2 |
| F | JAC26152F-NSJ | 80 | ||
| S | JAC26152S-NSJ | 44.5 |
| size | Roller Type |
Pitch | Roller Outer diameter |
Inner link Inner width |
|---|---|---|---|---|
| 152.4mm | Φmm | mm | ||
| JAC10152 | F | JAC10152F-NSJW | 50.8 | 36 |
| JAC6205 | F | JAC6205F-NSJW | 65 | 44.5 |
| JAC21152 | F | JAC21152F-NSJW | 70 | 44.5 |
| JAC26152 | F | JAC26152F-NSJW | 80 | 57.2 |
