Product Info Synchronous Belts and Belt Sprockets
Tsubaki Synchronous Belts are rubber belts with teeth and are also known as toothed belts.
By meshing the teeth on the belt pulley (gear), rotation can be transmitted reliably without slipping, unlike flat belts and V-belts, which transmit power solely through friction.
By embedding glass fiber, aramid fiber, or carbon fiber core wires inside, they have high tensile strength and are used in applications that require accurate positioning and high synchronization.
table of contents
Synchronous Belts related information
-
Selection
-
Materials
-
Operation
Synchronous Belts Features
-
High precision operation is possible.
The meshing transmission allows for accurate operation, and there is almost no belt stretch during operation.
-
Low noise.
It allows for quieter and smoother operation than other transmission elements such as gears.
-
It's a clean transmission.
No lubrication is required.
-
High efficiency.
It can efficiently transmit power from motors and other devices, with almost no energy loss.
-
High speed operation is possible.
Compared to other transmission elements such as gears, it is possible to operate at high speeds.

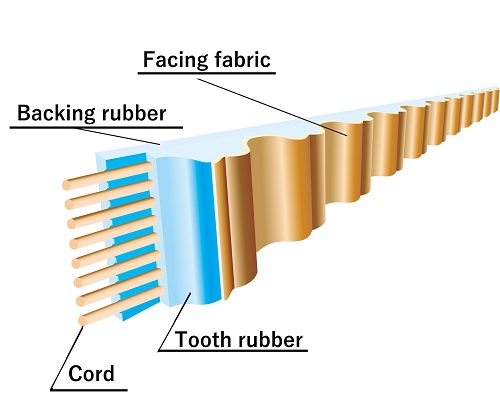

Structure
Backing rubber
耐久性、耐摩耗性を向上させた、クロロプレンゴム(または高強度合成ゴム)により、
心線を保護し長寿命を可能にしました。core wire
伸びが極めて少ない高抗張力グラスファイバー(またはアラミド繊維)を使用し、
高精度伝動を可能にしました。Tooth rubber
背ゴムと一体成形された歯ゴムは、高負荷のかみ合い伝動を可能にしました。Tooth fabric
耐摩耗性および自己潤滑により、スムーズなかみ合いと低騒音を可能にしました。
dimple
Low noise due to the effect of special dimples on the tooth tips.
Just Touch Method

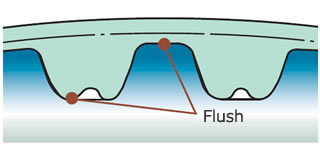

The just-touch method of engagement with the pulley, in which both the tooth tip and tooth root come into contact, enables high-precision transmission.
Synchronous Belts and Belt Sprockets lineup
Synchronous Belts and Belt Sprockets product list
Standard Stock Belt Sprockets
Tsubaki Standard Stock Belt Sprockets are easy-to-use pilot bore type Belt Sprockets.
We offer a wide variety of products and have a wide range of stock available.
Boss shape lineup
| Rod-shaped | DF type | AF type | A-type | BF type | B type |
|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
PX Belt Sprocket
Model number PT□□P□M□□□□
Belt Sprockets with a rational arc tooth profile based on precise meshing theory
- ・The teeth engage with the belt at both the top and tooth root for a perfect touch, enabling high-precision transmission.
- -A wide range of standard stock pulleys available
- ・ Fit Bore and Lock Belt Sprockets are also available with Quick delivery.
size
P2M～P14M
