Shock Monitor TSM4000 Series
- A renewed Shock Monitor that quickly detects minute load changes.
- Analog output of 0 to 10V is provided as standard, allowing for action and monitoring according to the load.
Features
- ・Safety design:
The terminal block is designed with a cover for safety, and the main body is designed to prevent dust and other foreign matter from easily entering. - ・Analog output:
Analog output of 0 to 10V is provided as standard, allowing for action and monitoring according to the load. - ・Environmental considerations:
The backlight is equipped with an automatic shut-off function, contributing to energy-saving operation. It is also an environmentally friendly product that does not contain any hazardous substances designated by the RoHS directive. - ・Improved handling:
The panel mounting type has been standardized, making it easier to connect to the terminal block when mounting on a panel. The main unit is also compatible with DIN rail mounting.
Basic operation of TSM4000

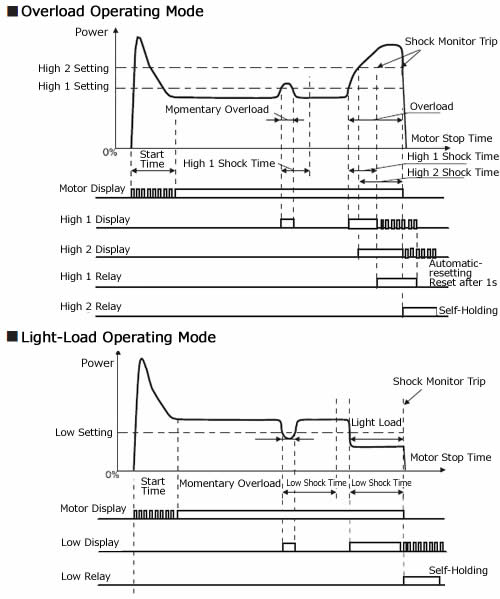

- - When an overload condition (or light load condition) continues for a certain period of time (shock time) or longer, compared with a preset overload detection level, an abnormal load is notified to the outside.
- - Two upper limit and one lower limit error signals are provided, which can be used as warning signals or motor stop signals.
- When the motor starts, load detection is suspended for a preset time (start time) to avoid incorrect output during acceleration.
- - Equipped with a torque monitoring function (20 to 120 Hz) that is effective when using an inverter.
- - When the motor starts, the start time and shock time are counted at the same time, so the longer set time will be effective.
Catalogs and Instruction Manuals

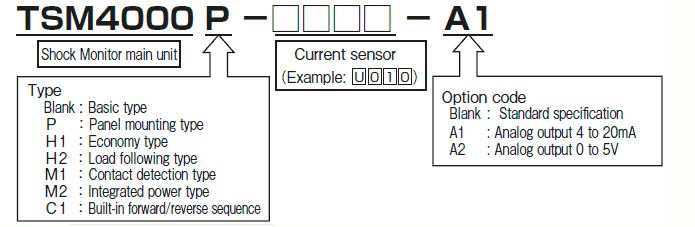

Product model number list
*Click on the model number to display detailed information.
| Standard body and current sensor |
Panel mounting type main body and current sensor |
Main unit only | Panel mounting bracket | Current Sensor | For sensors cable |
Doubler resistor | I/O cable |
|---|---|---|---|---|---|---|---|
| TSM4000-U010 | TSM4000P-U010 | TSM4000
TSM4000P |
TSM4-PL1 | TSM-U010 | TSM4-S01
TSM4-S03 TSM4-S05 TSM4-S10 TSM4-S20 TSM4-S30 |
TSM4-PR1 | TSM4-C01
TSM4-C03 |
| TSM4000-U050 | TSM4000P-U050 | TSM-U050 | |||||
| TSM4000-U100 | TSM4000P-U100 | TSM-U100 | |||||
| TSM4000-U150 | TSM4000P-U150 | TSM-U150 | |||||
| TSM4000-U200 | TSM4000P-U200 | TSM-U200 | |||||
| TSM4000-M300 | TSM4000P-M300 | TSM-M300 | |||||
| TSM4000-M400 | TSM4000P-M400 | TSM-M400 | |||||
| TSM4000-M600 | TSM4000P-M600 | TSM-M600 | |||||
| TSM4000-M800 | TSM4000P-M800 | TSM-M800 |
