Power-Lock RE-SS Series
- This is a series designed specifically for stainless steel, with two installation methods to choose from.
- - By attaching or detaching the included retaining ring, you can choose between two mounting methods: flange type and straight type.
- * Centering function included. No need for troublesome boss step processing.
- *For flanged types, the boss does not move during assembly, but for straight types, the boss moves slightly toward the front in the axial direction during assembly.
Please contact us for more details.
Stainless steel specifications
- - The main body is made of austenitic stainless steel, which provides high corrosion resistance.
- - The tightening bolts have a special lubricating coating, so there is no need to apply oil during assembly.
- - The product lineup includes small diameter shafts and has higher transmission torque than the KE-SS series.
- Applicable shaft diameter: Φ5 to Φ50
- トルク範囲：5.01～1170N・m
- Applicable tolerance: Shaft: h8 Hub bore: H8
- Applicable surface roughness: Ra1.6
Structure
With retaining ring
Without retaining ring
Single Taper

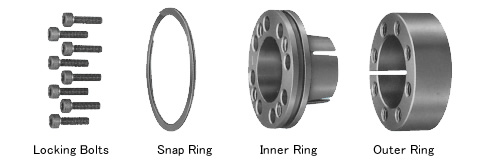

Power-Lock RE series consists of four parts: an inner ring, an outer ring, a retaining ring, and a fastening bolt.
It can be completely fastened by simply tightening the fastening bolts.
Handling Instructions
Catalogs and Instruction Manuals
Model number display example
| PL | 005 | X | 018 | RE | - | SS |
| ｜ Shaft diameter |
｜ Outer diameter |
｜ Series Name |
｜ Stainless steel specifications |
Product List
*Click to display detailed information.
