Plastic top Chain SNAPTOP Chain TN Type
- チェーンピッチ
19.05mm - For straight running
- Steel chain-based straight running chain with high allowable tension
- Only the top plate can be replaced.
Features
- - Its large allowable tension makes it suitable for conveyors with large transport capacities (excluding SS and PC).
- -It is also possible to replace only the top plate.
- - Chain specifications are available to suit corrosive environments.
- -RS60 sprocket (12 teeth) can be used.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | ● | ● | △ | ● | ● | △ | △ | △ | △ |
| Medium | ● | ● | △ | ● | ● | △ | △ | △ | △ |
| Small | ● | ● | △ | ● | ● | △ | △ | △ | △ |
Purpose
- ■Layouts with long transport distances and transport of heavy objects
Product List
■Main body chain specifications
- ・ Standard Series:
The main chain is made of steel, and its main dimensions are the same as those of a regular roller chain, but the shape of the pin ends is different.
Please note that the strength is weaker than RS roller chain for drives.
- ・ NP Series (Ni plating):
The main chain is Standard Series and nickel plated.
The Ni plating gives it a beautiful appearance and makes it rust-resistant.
- ・LMC NP Series (Lambda):
NP Series main chain uses special oil-impregnated bush that use NSF H1 compliant oil, allowing it to be used Lube-free (lambda) and for a long life.
- ・ SS Series:
All parts of the main chain are made of 18-8 stainless steel, so it can be used in environments where corrosion resistance is a priority.

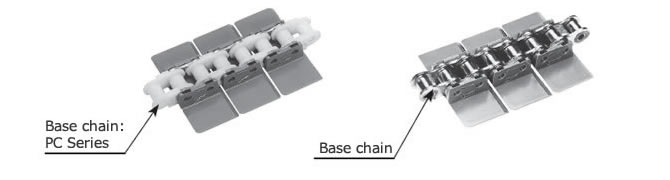

- ・PC specifications:
The main chain uses Poly-steel chain (TN-C-PC). The connecting links are for TN type only.
Please note that the strength is weaker than RS roller chain for drives.
This Top chain is made of engineering plastic and 18-8 stainless steel, making it corrosion-resistant, Lube-free and quiet.
Note
1. Standard Series, NP Series, and SS Series require oiling of the chain.
2. If you wish to use SS Series in a special atmosphere, please contact us.
*Click on the format to display detailed information.
| Chain pitch mm | 19.05 | ||||
|---|---|---|---|---|---|
| Purpose | For straight running | ||||
| Chain Type | - | ||||
| - | |||||
| Main body chain specifications | Standard Series | NP Series | LMC NP Series | SS Series | PC specifications |
| Pin Type | - | ||||
| Pin Material | - | ||||
| Pin Shape | - | ||||
| Top plate thickness mm | - | ||||
| Pusher Material | - | ||||
| Other features | - | ||||
| Model | TN | TN-NP | TN-LMCNP | TN-SS | TN-PC |
|
 |
 |
 |
 |
|
| Chain width mm | 82.6, 101.6, 114.3, 127.0, 190.5 |
||||
| Organizational Unit | - | ||||
