Power-Lock AE Series
- It has the same inner and outer diameter as the AS series, but comes with a flange and centering function.
- - It has the same inner and outer diameter as the AS series, and is suitable for cases where a centering guide section cannot be installed.
- * Centering function included. No need for troublesome boss step processing.
- * The boss does not move during assembly.
- *When mounting on a stepped shaft, leave a gap of 1 mm or more between the boss and the stepped part.
Standard Specifications
- - A simple type consisting of three parts: inner ring, outer ring, and tightening bolt.
- - This series is highly compatible and is available from many manufacturers both domestically and internationally.
- Applicable shaft diameter: Φ19 to Φ150
- トルク範囲：265～27000N・m
- Applicable tolerance: Shaft: h8 Hub bore: H8
- Applicable surface roughness: Ra1.6
Structure
Single Taper

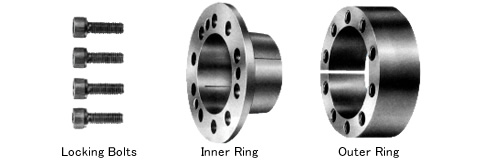

Power-Lock AE series has a simple structure consisting of three parts: an inner ring, an outer ring, and a fastening bolt.
It can be firmly fastened by simply tightening the fastening bolts.
Handling Instructions
Catalogs and Instruction Manuals
Model number display example
| PL | 019 | X | 047 | AE |
| ｜ Shaft diameter |
｜ Outer diameter |
｜ Series Name |
Product List
*Click to display detailed information.
| Standard Specifications |
|---|
| PL019X047AE |
| PL020X047AE |
| PL022X047AE |
| PL024X050AE |
| PL025X050AE |
| PL028X055AE |
| PL030X055AE |
| PL032X060AE |
| PL035X060AE |
| PL038X065AE |
| Standard Specifications |
|---|
| PL040X065AE |
| PL042X075AE |
| PL045X075AE |
| PL048X080AE |
| PL050X080AE |
| PL055X085AE |
| PL060X090AE |
| PL065X095AE |
| PL070X110AE |
| PL075X115AE |
| Standard Specifications |
|---|
| PL080X120AE |
| PL085X125AE |
| PL090X130AE |
| PL095X135AE |
| PL100X145AE |
| PL110X155AE |
| PL120X165AE |
| PL130X180AE |
| PL140X190AE |
| PL150X200AE |
