200 Series
- This type is attached directly to the shaft and has no inner race.
- It can be compactly installed inside sprockets, gears, etc.
- トルク範囲：39.2～1400N・m
Features
- - A type without inner race that is attached directly to the shaft.
- -Can be compactly installed inside sprockets, gears, etc.
- -Suitable for low to medium speed applications.
- ・Custom inner race can be manufactured upon order.

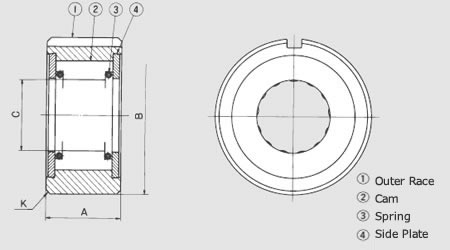

Structure
Dedicated inner race
Upon order, we will manufacture dedicated inner race for each series.
| inner race model number | Shaft Hole Diameter | inner race raceway diameter C(+0 to -0.025) |
width A |
||
|---|---|---|---|---|---|
| Diameter F H7 | Keyway | Chamfer J | |||
| B204-IR | 10 | 4X1.5 | 0.8 | 18.796 | 25 |
| B205-IR | 12.5 | 4X1.5 | 0.8 | 23.622 | 25 |
| B206-IR | 20 | 5X2 | 1.3 | 32.766 | 28 |
| B207-IR | 25 | 7X3 | 1.3 | 42.088 | 28 |
| B208-IR | 30 | 7X3 | 1.3 | 46.761 | 32 |
| B209-IR | 30 | 7X3 | 1.3 | 46.761 | 32 |
| B210-IR | 35 | 10X3.5 | 1.8 | 56.109 | 32 |
| B211-IR | 35 | 10X3.5 | 1.8 | 56.109 | 32 |
| B212-IR | 45 | 12X3.5 | 1.8 | 70.029 | 42 |
| B213-IR | 45 | 12X3.5 | 1.8 | 70.029 | 42 |
| B214-IR | 50 | 12X3.5 | 1.8 | 79.356 | 42 |
*When using the cam clutch near its maximum torque, use a hardened shaft and check the shaft strength.
Model number display example
| B | 205 |
| ｜ Series Name |
｜ size |
*The outer diameter is the same as that of the 6200 type bearing.
(Example: B205=6205, B206=6206, B207=6207, B208=6208)
