Linipower Jack ​JWH (High-lead ball screw type)

Product Photos
  • The JWH (High lead ball screw type) is a screw jack that can achieve the same input rotation speed as the JWB type but with increased speed (up to 4 times faster).
  • The main components are a high-lead Ball screw and a high-precision worm gear.
  • A high-lead Ball screw is used for high-speed applications, and low noise is achieved by combining it with a reduction unit.

Features

  • ・High speed

    By using a highly reliable high-lead ball Ball screw, the screw shaft speed can be increased to a maximum of 7.5 m/min.

  • ・Noise reduction

    When the screw shaft speed is the same as that of the JWB (Ball screw type), the input rotation speed can be lowered by using a reduction unit in the drive source, which reduces the noise generated by the jack.

    *It does not have a self-locking mechanism, so a brake is required.

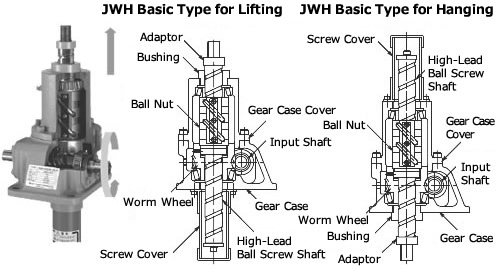

Basic specification structure

Basic specification structure

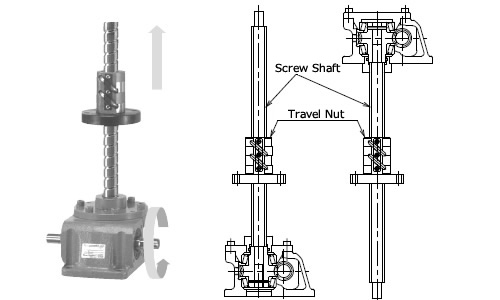

Traveling nut structure

Traveling nut structure

Standard model list

・Basic capacity

Frame No. Basic capacity kN {tf} Worm reduction ratio
H
010 9.80 {1} 5
025 24.5 {2.5} 6
050 49.0 {5} 6
100 98.0 {10} 8
150 147 {15} 8
200 196 {20} 8

·Stroke

Frame No. 10 25 50 100 150 200
100 ○ ○ ○ ○ ○ ○
200 ○ ○ ○ ○ ○ ○
300 ○ ○ ○ ○ ○ ○
400 ○ ○ ○ ○ ○ ○
500 ○ ○ ○ ○ ○ ○
600 ○ ○ ○ ○ ○ ○
800 ○ ○ ○ ○ ○ ○
1000 △ ○ ○ ○ ○ ○
1200 △ ○ ○ ○ ○ ○
1500 - △ ○ ○ ○ ○
2000 - - - △ △ △
  • *○: Standard product, △: Made to order product, - mark: Manufactured according to usage conditions. Please contact us for details.

Catalogs and Instruction Manuals

Model number display example

JW H 050 U S H 10 U
｜
Series Name
Linipower
jack		 ｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜		 ｜
Basic capacity
010: 9.80kN{1tf}
025: 24.5kN{2.5tf}
050: 49.0kN{5tf}
100: 98.0kN{10tf}
150: 147kN{15tf}
200: 196kN{20tf}		 ｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜		 ｜
｜
｜
｜
｜
｜
｜
｜		 ｜
Worm reduction ratio
H
The actual reduction ratio is
More information
Please refer to.		 ｜
Nominal stroke
1: 100mm
2: 200mm
3: 300mm
4: 400mm
5: 500mm
6: 600mm
8: 800mm
10: 1000mm
12: 1200mm
15: 1500mm
20: 2000mm		 ｜
Flange mounting direction
*Notation required
only for traveling nut
specifications.
​
Screw specifications
S: Basic form
R: Traveling nut specification
Screw Type
H: High lead
Ball screw		 Mounting Shape
U: For pushing up
D: For hanging

■ Tsubaki model No. navigation

Selectable model number:

View product details

*To generate the correct model number, select items in order from left to right.

series Screw Type Basic capacity Mounting Shape Screw specifications Worm
Reduction ratio		 Stroke flange
Mounting Direction

JW































Screw Type

M: Trapezoidal Screw type.

B: Ball screw type.

H: High lead Ball screw type.

Basic capacity

This is the basic capacity that the jack body can handle.

Mounting Shape

U: This type has a screw shaft on the opposite side of the main body mounting base.

D: This type has a screw shaft protruding from the main body mounting base side.

Screw specifications

S: This is the basic form in which the screw shaft moves.

M: The basic form in which the screw shaft moves.
The screw shaft has an anti-rotation function.

R: The screw shaft rotates and the nut moves.

Worm reduction ratio

Reduction ratio of the worm reducer.

Please refer to the detailed information for the reduction ratio values of each model.

Stroke

travel distance of the threaded shaft or traveling nut.

Flange mounting direction

For traveling nut types, specify which side of the nut the mounting flange should be on.

U: Upper side

D: Lower side

Option symbol

J: It comes with bellows.

B: Comes with End fitting of the rod.

I: Equipped with I-type end fitting.

M: Comes with table-shaped End fitting.

C: Equipped with clevis.

Y: A limit switch with a mechanical counter.

K2: Two built-in microswitches detect the stroke position.

K4: Equipped with four built-in microswitches that detect the stroke position.

P: Equipped with a potentiometer that detects the stroke position.

R: Equipped with a rotary encoder that outputs a stroke movement signal.

E: Comes with a three-phase brake motor.
The power supply supports 200/200/220V 50/60/60Hz.

EV: Comes with a three-phase motor with brake.
The power supply supports 400/400/440V 50/60/60Hz.

G1: Equipped with a three-phase gear motor with brake, the reduction ratio is 1/5.
The power supply supports 200/200/220V 50/60/60Hz.

G2: Equipped with a three-phase gear motor with brake, the reduction ratio is 1/10.
The power supply supports 200/200/220V 50/60/60Hz.


Please check here for option model numbers.

Product model number list

*Click on the model number to display detailed information. Open all Close all

Basic capacity frame number "010" 9.80kN {1tf} (Model number JWH010~)

Basic capacity frame number "025" 24.5kN {2.5tf} (model number JWH025~)

Basic capacity frame number "050" 49.0kN {5tf} (Model number JWH050~)

Basic capacity frame number "100" 98.0kN {10tf} (Model number JWH100~)

Basic capacity frame number "150" 147kN {15tf} (Model number JWH150~)

Basic capacity frame number "200" 196kN {20tf} (model number JWH200~)

Special support

・Special support is available to suit your usage conditions.

For special requests such as anti-backlash, different strokes, and plated input shafts, please click here.
