Lock Belt Sprockets N Type
- Easy to fasten with just one nut
- Shaft hole diameters start from 7mm, making it ideal for fastening small shaft diameters.
Features
- *Shaft hole diameters start from 7mm, making it ideal for fastening small shaft diameters.
- *This product is made to order.
- * RoHS2 compliant (10 substances)

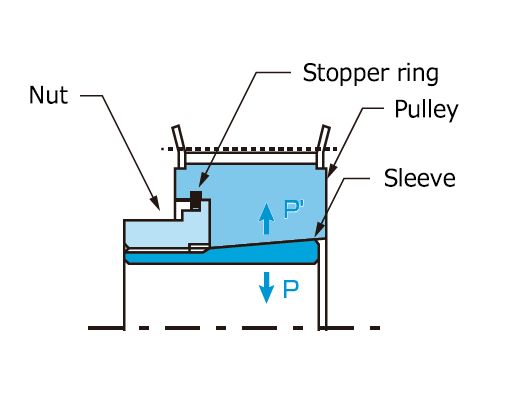

1. Fastening Principle
The inner diameter of Belt Sprockets and the outer diameter of the sleeve are tapered, and by tightening the clamping nut,
Belt Sprockets move by sliding on tapered surfaces.
At this time, a wedge action generates forces P and P' that press against the shaft and the inner surface of the tapered surface.
This P and P' force generates a frictional force that tightly fastens Belt Sprockets and shaft together.
*Click to enlarge the illustration
Catalogs and Instruction Manuals
Product model number list
*Click on the model number to display detailed information.
| type | Pitch mm |
Material | Basic model number | Tooth number range | Belt width mm | |||
|---|---|---|---|---|---|---|---|---|
| 10 | 15 | 25 | ||||||
| rock Pulley N |
 |
2 | The C-type Lock Belt Sprockets supports a pitch of 2 mm. | |||||
| 3 | aluminum | P3M10BF-A-N□□□ | 36T～60T | ○ | ||||
| P3M15BF-A-N□□□ | ○ | |||||||
| 5 | carbon steel | P5M10BF-N□□ | 22T～72T | ○ | ||||
| P5M15AF-N□□ P5M15BF-N□□ |
○ | |||||||
| P5M25AF-N□□ P5M25BF-N□□ |
26T～72T | ○ | ||||||
| 8 | The S-type Lock Belt Sprockets is compatible with a pitch of 8 mm. | |||||||
| 14 | The S-type Lock Belt Sprockets is compatible with a pitch of 14 mm. | |||||||
