Plastic Top Chain TPM-SN/TPM-P-SN Type
- チェーンピッチ
19.05mm - For straight running
- Applying silent chain meshing theory, it is extremely effective in reducing conveyor noise.
- A special sprocket is used to suppress polygonal movement when engaging with the sprocket, allowing for stable transport.
Features
- - Utilizing silent chain meshing theory, it is extremely effective in reducing conveyor noise.
- -Special sprocket is used.
- Polygonal movement when meshing with the sprocket is suppressed, allowing for stable transport.
- - Chain with float-preventive tabs. Prevents lifting at corners and on ascending and descending conveyors, as well as scratches on the top surface of the plate on return-way.

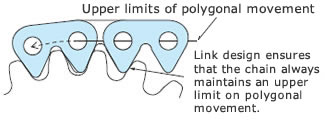

- - The structure minimizes chordal action (polygonal movement) when the sprockets mesh, and the small pitch and multi-hinge structure ensure even more stable transportation of transported items.
- Note: Please use a dedicated sprocket with 21T teeth. For details, please contact Sprocket CS.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | △ | △ | △ | △ | △ | △ | △ |
| Medium | ● | ● | △ | ● | ● | △ | △ | △ | △ |
| Small | ● | ● | △ | ● | ● | △ | △ | △ | △ |
Purpose
- ■Conveying containers such as food, cans, and beverages
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 19.05 | |
|---|---|---|
| Purpose | For straight running | |
| Chain Type | - | |
| - | ||
| Main body chain specifications | - | |
| Pin Type | Stainless steel pin type | Plastic pin type |
| Pin Material | SUS304 | Special engineering plastics |
| Pin Shape | D-pin | |
| Top plate thickness mm | 4.0 | |
| Pusher Material | - | |
| Other features | Includes float-preventive tabs | |
| Model | TPM-SN | TPM-P-SN |
|
 |
|
| Top plate width mm | 82.6 | |
Note: Only the joint pin (for connection) is orange. The main body pin is white.
