Product Info Plastic block chain Accessories

We have a wide lineup of conveyor peripheral parts such as dedicated sprockets, idlers, Plastic rail, set collars, chain guide parts, frame support parts, product guide parts, and bearing units.

Please click on the images below to see how to use each accessory.

プラブロックチェーン・スナップカバーチェーン用アクセサリ
×
(You can move it by dragging it)

Sprocket

  • ・Application

    This product transmits the motor's power to the chain.

    Please attach it to the conveyor drive shaft before use.

  • ・Usage image

    Sprocket

    [Click to enlarge]

To the list

List of accessories for Plastic block chain and Snap cover chain

Chain model numberApplicable accessories

Accessory model numberof


*Click on the model number to display detailed information. Click on the dimensional drawing to enlarge.

Sprocket

(Click for a list
Display.)		 Applicable chain type Applicable chain
pitch
mm		 Number of teeth

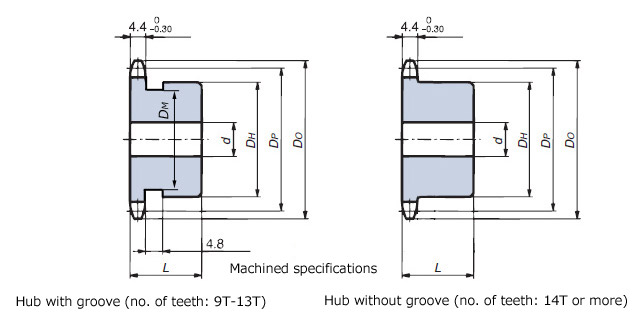

RSP35　 RSP35 9.525 14T～




type Material Basic model number
Pilot bore product steel RS35-1B□T■
stainless RS35-1B□T-SS
Engineering plastics RS35-1B□T-P

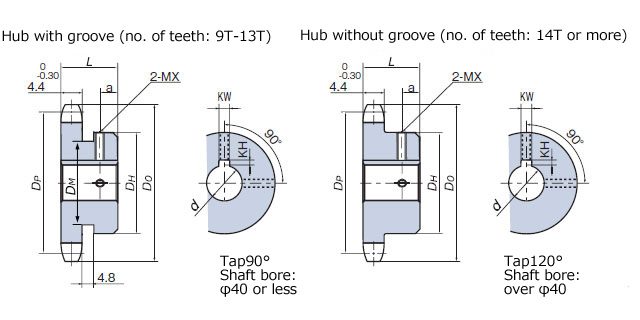

Fit Bore steel RS35-1B□TQ-H～
stainless RS35-1B□T-SS-H～

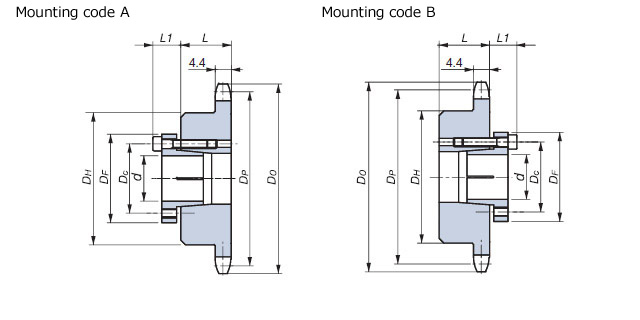

Lock Sprocket S type steel RS35-1B□TQ-S○○○○●
Lock Sprocket N type steel RS35-1B□TQ-N○○○●
The above sprockets with 14 or more teeth can be used.
RSP40　 RS40-LMCSC, RS40-NPSC, RS40-SC, RS40-SSSC, RSP40, RSP40P, RSP40-SL, RSP40-T-CU, RSP-PO8PF, RSP-PO8PFT, TP-1843-AS-G, TP-1843-G 12.70 14T～




type Material Basic model number
Pilot bore product steel RS40-1B□T■
stainless RS40-1B□T-SS
Engineering plastics RS40-1B□T-P
Fit Bore steel RS40-1B□TQ-H～
stainless RS40-1B□T-SS-H～
Lock Sprocket S type steel RS40-1B□TQ-S○○○○●
Lock Sprocket N type steel RS40-1B□TQ-N○○○●
The above sprockets with 14 or more teeth can be used.
RSP50　

RS50-LMCSC, RS50-NPSC, RS50-SC, RS50-SSSC, RSP50 15.875 14T～




type Material Basic model number
Pilot bore product steel RS50-1B□T■
stainless RS50-1B□T-SS
Engineering plastics RS50-1B□T-P
Fit Bore steel RS50-1B□TQ-H～
stainless RS50-1B□T-SS-H～
Lock Sprocket S type steel RS50-1B□T■-S○○○○●
Lock Sprocket N type steel RS50-1B□TQ-N○○○●
The above sprockets with 14 or more teeth can be used.

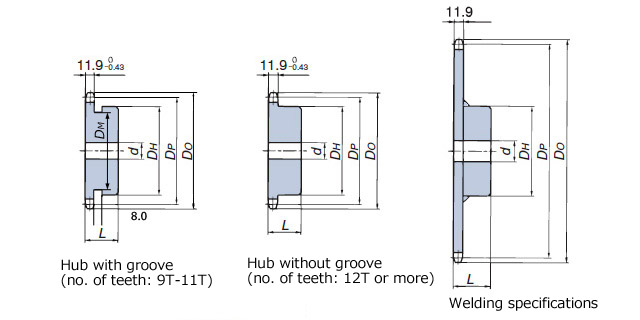

RSP60　 RS60-LMCSC, RS60-NPSC, RS60-SC, RS60-SSSC, RSP-2, RSP60, RSP60P, RSP-CU, RSP-CU-2, RSP-P-CU, TN, TN-LMCNP, TN-NP, TN-PC, TN-SS, TNU, TNU-AS, TNU-NP, TP-1873-AS-G, TP-1873-G, TP-1873-T, TP-PT, TP-PT-AS, TP-PTS, TP-PTS-AS, TRU, TTKU 19.05 14T～




type Material Basic model number
Pilot bore product steel RS60-1B□T■
stainless RS60-1B□T-SS
Engineering plastics RS60-1B□T-P

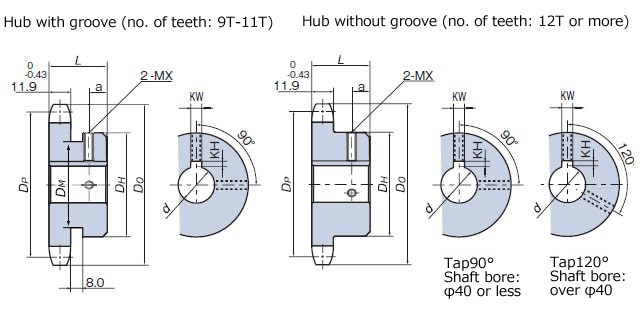

Fit Bore steel RS60-1B□TQ-H～
stainless RS60-1B□T-SS-H～

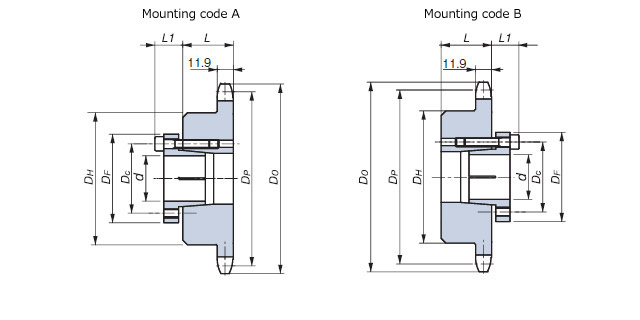

Lock Sprocket S type steel RS60-1B□T■-S○○○○●
Lock Sprocket N type steel RS60-1B□TQ-N○○○●
The above sprockets with 14 or more teeth can be used.
RSP-2　 RSP-2, RSP-CU-2 19.05 12T～



type Number of teeth Pitch Circle Diameter
mm		 pilot bore
mm		 Maximum shaft bore diameter
mm		 Model number
Integrated type 19 115.74 Φ20 Φ50 RSP-UPO19T
21 127.82 Φ60 RSP-UPO21T
23 139.90 RSP-UPO23T
25 151.99 Φ70 RSP-UPO25T
type Material Basic model number
Pilot bore product steel RS60-1B□T■
stainless RS60-1B□T-SS
Engineering plastics RS60-1B□T-P
The above sprockets with machined specifications and 12 or more teeth can be used. Double-row sprockets cannot be used. Use two single strand B-type sprockets with the tooth phases aligned. Adjust the width by adding distance between the sprockets.
RSP80, RS80-SC　 RS80-LMCSC, RS80-NPSC, RS80-SC, RS80-SSSC, RSP80 25.4 RSP80：14T～
RS80-SC：13T～



type Material Basic model number
Pilot bore product steel RS80-1B□T■
stainless RS80-1B□T-SS

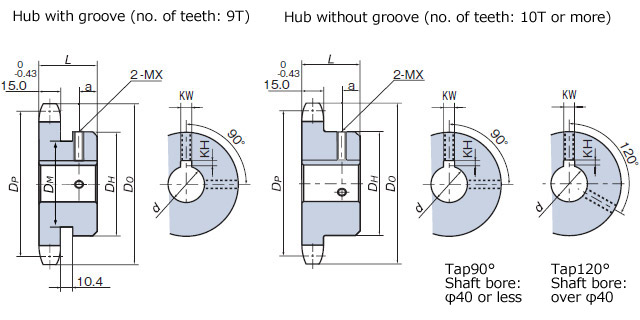

Fit Bore steel RS80-1B□TQ-H～
stainless RS80-1B□T-SS-H～

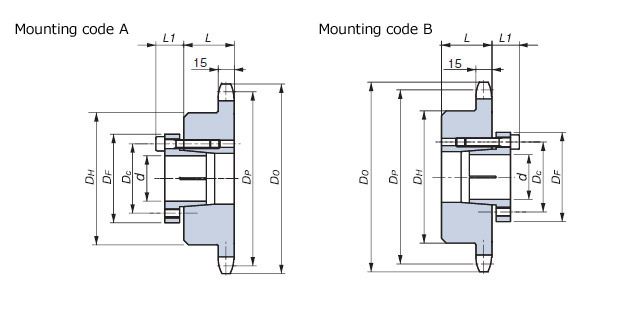

Lock Sprocket S type steel RS80-1B□T■-S○○○○●
The above sprockets with 13 or more teeth can be used.
RS100-SC　 RS100-LMCSC, RS100-NPSC, RS100-SC, RS100-SSSC 31.75 13T～



type Material Basic model number

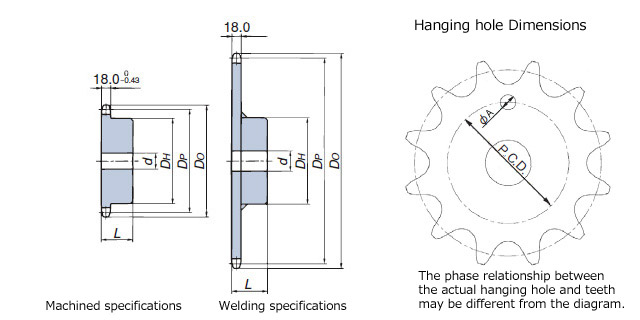

Pilot bore product steel RS100-1B□T■

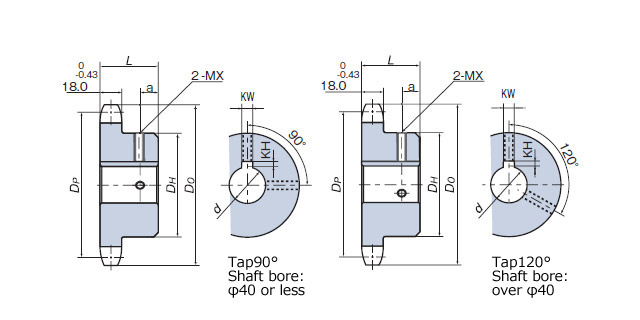

Fit Bore steel RS100-1B□TQ-H～

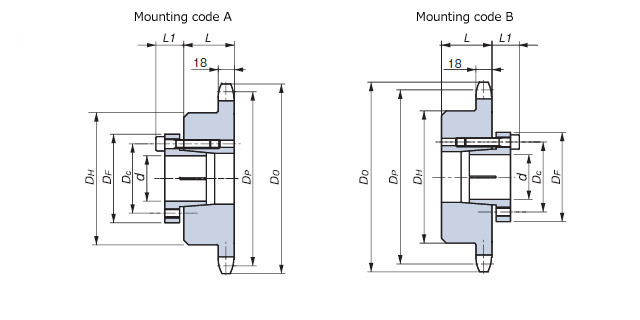

Lock Sprocket S type steel RS100-1B□T■-S○○○○●
The above sprockets with 13 or more teeth can be used.
RF06B-SC　 RF06B-LMSC, RF06B-NPSC, RF06B-SC, RF06B-SSSC 9.525 13T～

type Material Basic model number
Pilot bore product steel RF06B-1B□T■
Fit Bore steel RF06B-1B□T■-H～
The above sprockets with 13 or more teeth can be used.
