Shock Guard TGX Series

Product Photos
  • High precision type with no backlash and excellent rigidity under normal conditions
  • - The original ball-and-wedge mechanism eliminates backlash.
  • - Even with the same size springs, different color-coded springs allow you to set different torques.
  • -Lost motion during tripping is extremely small.
  • -The ball and wedge arrangement is a unique combination that only fits together in one place.
  • - The non-contact TG sensor detects overload and can stop the motor or issue an alarm.
  • -TGX coupling type is also available.

Video content

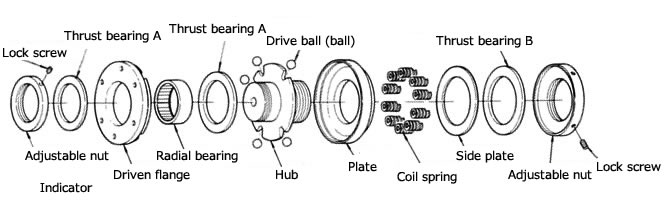

Structure

Structure

Operating principle: Ball and wedge mechanism (PAT.)

Operating principle

During normal operation (engaged)

Torque is transmitted from the hub to the drive ball (steel ball) and then to the driven flange (or vice versa).

The drive balls (steel balls) are held in place by the pressure of the coil spring on the hub and driven flange.
The contact area with the drive ball (steel ball) is tapered, and the drive ball (steel ball) is always held in place by the V-shaped retaining part of the hub.
The gap is set to 0.

This mechanism is the ball and wedge mechanism (PAT.).

When overloaded (tripped)

When overloaded, the drive balls (steel balls) rise from their pockets and begin to roll.

There are no sliding parts and it is all rolling, so the idling friction torque is very small and it has excellent durability.

The drive ball (steel ball) Auto reset to its original pocket when operation resumes.
As with the TGB series, the five drive balls (steel balls) and pockets are unevenly arranged, so they always come in at one place.
There is no meshing or phase shift.

Specifications (standard model)

Set torque range N・m Repeated operating torque accuracy Backlash Reset method
1.7~784 ±5% None Automatic

Catalogs and Instruction Manuals

Model number display

*Single unit type

TGX 35 - H - TH30JD2 - N147

series

size



Shaft hole symbol

Torque setting value
N・m
Spring strength
L: Weak spring
M: Medium spring
H: Strong spring

*Coupling type

TGX 50 - L C - TH35JD2 X CH45ED2 - N98

series

size



Coupling
type

Shock Guard side
Shaft hole symbol

Coupling side
Shaft hole symbol

Torque setting value
N・m
Spring strength
Shaft hole symbol details
Shaft hole diameter tolerance Shaft Hole Diameter Keyway tolerance Set screw position
T H 35 J D2
C H 45 E D2
T:ショックガード側
C:カップリング側
F:F7
G:G7
H:H7
J:JS7
P:P7
M:M7
N:N7
K:K7
R:R7
Shaft hole diameter is
in 1mm increments
J: New JIS Js9 (standard)
P: New JIS P9
F: Old JIS F7
E: Old JIS E9

[Click to enlarge]

Note) The position of the setscrew on Shock Guard side is the position seen from the adjustment nut side, and the position of the setscrew on the coupling side is the position seen from the hub end face.

■ Tsubaki model No. navigation

Selectable model number:

*To generate the correct model number, select items in order from left to right.

series size Spring strength type Shaft Hole Diameter Shaft Hole Diameter
tolerance
Keyway
tolerance
Set screw position torque
Setting value
 TGX

Shock Guard side
1.7

6.4
  N・m
Coupling side

Product model number list

*Click on the model number to display detailed information.

Single unit Coupling Type
Set torque range
N・m
Shaft hole diameter range
mm
Model number Set torque range
N・m
Coupling side
Shaft hole diameter range mm
Model number
1.7~6.4 9~15 TGX10-L 1.5~5.4 9~19 TGX10-LC
5.4~15 TGX10-M 4.6~13 TGX10-MC
11~29 TGX10-H 9.3~25 TGX10-HC
6.5~24 10~25 TGX20-L 5.2~19 10~35 TGX20-LC
13~34 TGX20-M 9.8~27 TGX20-MC
25~68 TGX20-H 21~55 TGX20-HC
23~68 14~35 TGX35-L 19~57 14~50 TGX35-LC
43~98 TGX35-M 36~84 TGX35-MC
87~196 TGX35-H 74~167 TGX35-HC
45~118 20~55 TGX50-L 40~98 20~60 TGX50-LC
90~196 TGX50-M 81~176 TGX50-MC
176~392 TGX50-H 167~343 TGX50-HC
127~363 25~70 TGX70-L 118~323 25~80 TGX70-LC
265~510 TGX70-M 235~461 TGX70-MC
392~784 TGX70-H 353~696 TGX70-HC

option

TG sensor

This is a proximity switch type overload detection sensor designed specifically for Shock Guard. It can detect an overload on Shock Guard (movement of the plate in the axial direction) and stop the motor or issue an alarm.

TG sensor
AC type DC type
Model number TGS8 TGS8DN
power supply
Voltage
Rating AC24~240V -
Usable range AC20~264V(50/60Hz) DC10~30V
Current consumption 1.7mA or less (at AC200V) 16mA or less
Control output (switching capacity) 5~100mA Max 200mA
indicator light Operation display
Ambient temperature -25 to +70°C (but do not freeze)
Ambient humidity 35~95% RH
Output format - NPN
Operation form NC
(センサプレートを検知していない時の出力開閉状態を表します)
Insulation resistance 50MΩ or more (DC500V megger) between all live parts and case
mass Approximately 45g (2m cord length) Approximately 56g (2m cord length)
Residual voltage >> See characteristic data 2.0V or less (load current 200mA, cord length 2m)
Instruction Manuals TG sensor TGS8 TG sensor TGS8DN
×
