MR Series
- This is a cam clutch designed specifically for outer race slip.
- Designed exclusively for continuous outer race high speed operation.
- Use at a low meshing rotation speed.
- During idling, the cam lifts off (floats up) and loses contact with inner race.
- トルク範囲：9500～33800N・m
Features
- - When outer race is idling, the cam lifts off (floats up), eliminating contact with inner race, providing excellent resistance to idling wear.
- - Since it is designed for continuous high-speed outer race idling, the meshing rotation speed should be low.

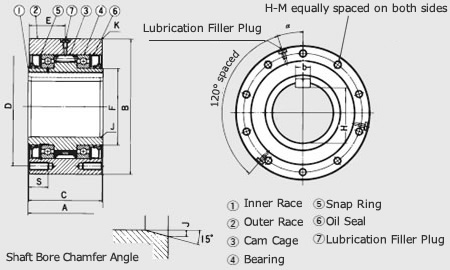

Structure
Model number display example
| MR | 750 |
| ｜ Series Name |
｜ size |
Catalogs and Instruction Manuals
Product model number list
*Click on the model number to display detailed information.
| Model number |
|---|
| MR750 |
| MR800 |
| MR900 |
| MR1000 |
