Power Cylinder U Series

Product Photos
  • This is a compact and lightweight electric cylinder with a rated thrust of over 6 tons.
  • Power Cylinder has succeeded in achieving smaller size, lighter weight and improved cost performance while maintaining the same capacity as the conventional T series.
  • ・Rated thrust: 58.8 to 490kN
  • ・Nominal speed: 6.5 to 52mm/s

Features

Banner Image

  • ・Lightweight and compact

    Thanks to the newly developed high-performance Ball screw and strengthened bearings, we have succeeded in reducing the overall length by up to 10% and the mass by up to 35% compared to the previous model (T series).The compact size and light weight make it easy to replace hydraulic cylinders.

  • ・A comprehensive lineup

    The rated thrust of the model has been expanded to 50 tons, making it easier to replace hydraulic cylinders with bore diameters of Φ250 mm.

  • ・Improved cost performance

    In addition to achieving cost reductions compared to conventional products by making the parts smaller and lighter, Power Cylinder is electrically driven, which means it saves more energy than hydraulic types and significantly reduces power consumption.

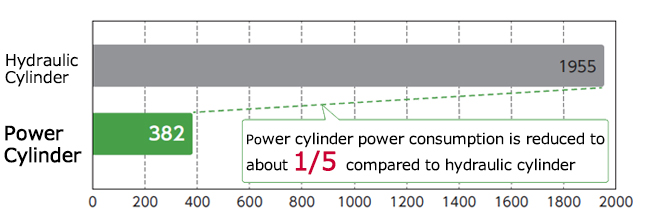

    [Comparison of power consumption with hydraulic cylinders]

    Annual power consumption per unit (kWh/year)

    Annual power consumption per unit

Simple calculation of hydraulic cylinder thrust
(The formula for converting hydraulic cylinder output into approximate Power Cylinder thrust is provided below.)

How to use each type (protective device) and its structure

Two types are available, each with a different safety mechanism.

  • ・B type (Wet-type slip clutch)

    Wet-type slip clutch is built into the screw shaft end of the reduction section.

    The special lining provides protection in the event of an overload.

    The special lining provides protection even during overstroke.

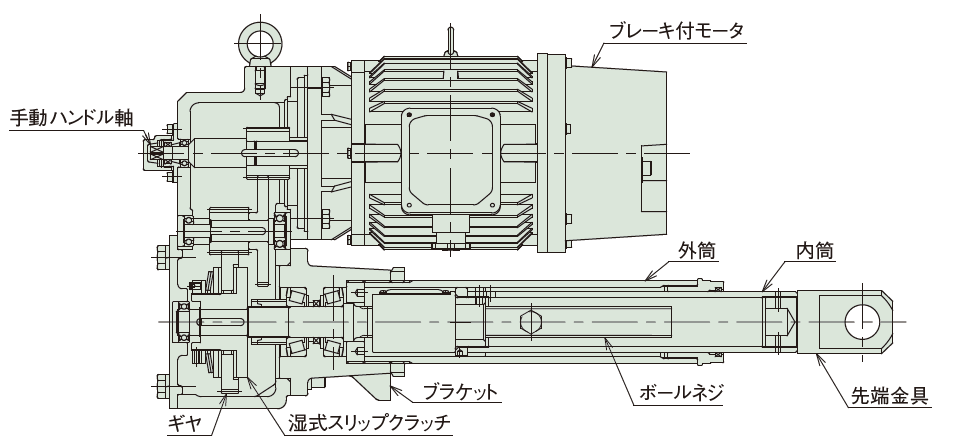

    Structural diagram

  • ・C type (Thrust detection limit switch)

    A thrust detection spring unit is built into the bracket.

    It is effective when an electrical signal is required for push (pull) stop or overload.

    An electrical signal is also output if an overload occurs from the load side while the motor is stopped or if the stroke is exceeded.

    *In particular, when subjected to impact, the built-in spring will deflect and absorb the impact load.

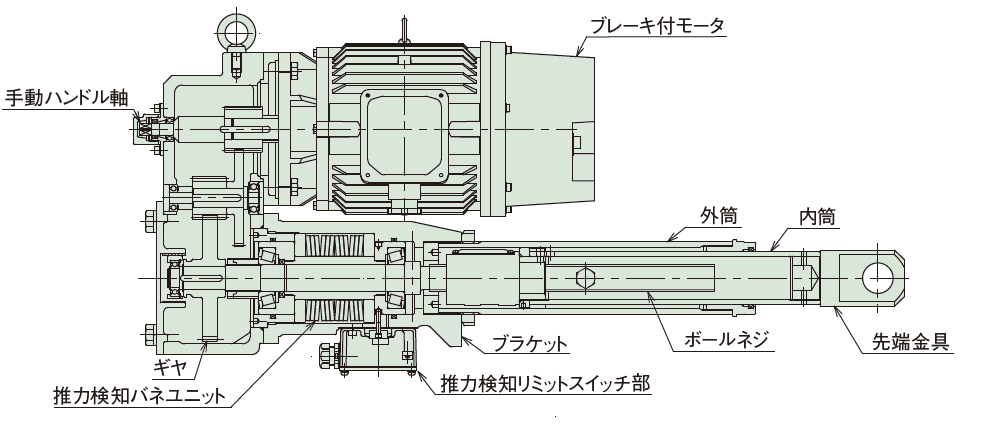

    Structural diagram

    *The 50-ton Thrust detection limit switch cannot be used for regular pushing (pulling) stop. Please use it as a safety device.

Standard model list

Model number Rated thrust
N
{kgf}		 Nominal speed
50/60Hz
mm/s		 Motor Capacity
kW		 Rod travel per revolution
of manual shaft
mm		 Rod rotation force
N・m
{kgf・m}		 Nominal stroke
mm
LPUB6000
LPUC6000		 S 58.8k
{6000}		 6.5/7.8 0.75 1.0 124
{12.7}		 500, 1000
*1500
L 18/22 1.5 0.7
M 26/31 2.2 1.0
H 42/50 3.7 1.7
LPUB8000
LPUC8000		 S 78.4k
{8000}		 10/12 1.5 1.2 166
{17.0}		 500, 1000,
1500
L 20/24 2.2 0.8
M 30/36 3.7 1.2
H 43/52 5.5 1.7
LPUB12000
LPUC12000		 L 117k
{12000}		 10/12 2.2 1.2 333
{34.0}		 500, 1000,
1500, *2000
M 18/22 3.7 2.2
H 30/36 5.5 1.2
LPUB16000
LPUC16000		 L 156k
{16000}		 14.5/17.5 3.7 1.7 444
{45.3}		 500, 1000,
1500, 2000
M 20/24 5.5 2.3
H 30/36 7.5 1.2
LPUB22000
LPUC22000		 L 215k
{22000}		 14.5/17.5 5.5 2.9 915
{93.5}		 500, 1000,
1500, 2000
M 20/24 7.5 3.2
H 30/35 11 3.5
LPUB32000
LPUC32000		 L 313k
{32000}		 10/12 5.5 2.1 1109
{113}		 500, 1000,
1500, 2000
M 15/18 7.5 2.4
H 20/24 11 2.4
LPUB50000
LPUC50000		 L 490k
{50000}		 8/10 7.5 0.3 2166
{221}		 500, 1000,
1500, 2000
M 12/14 11 0.5
H 16/19 15 0.6

*The speed indicates the value at the motor's synchronous rotation speed.

*The rated thrust is limited for strokes marked with an *.

If replacing from T series

We offer the "U Series N Specification" which matches the installation dimensions of the T Series. The N Specification improves the expected travel distance of Ball screw by more than three times compared to conventional models, helping to reduce the frequency of cylinder replacement.

Model number display example: LPUB6000L N 5VT1LPJ-TK

*N: N specification (replacement for T series) *Please add "-TK" at the end.

*N specification applicable models are 6000, 8000, 12000, and 16000 sizes.

Catalogs and Instruction Manuals

Motor Specifications

capacity 0.75kW～3.7kW 5.5kW～15kW
Model Fully sealed and air cooling type with brake Fully sealed and fan-cooling type type with brake
output See the list of standard models
Number of poles 4 poles
power supply Voltage 200V/200V/220V
frequency 50Hz/60Hz/60Hz
Time rating 30 minute rating Continuous rating
Heat resistance class B
protective structure Fully sealed outdoor model (IP55)

Click here to see motor options.

Model number display example

LPU B 6000 L 5
｜
Series Name
Power Cylinder
U Series		 ｜
｜
｜
｜
｜
｜
｜
｜
｜		 ｜
Rated thrust
6000: 58.8kN {6000kgf}
8000: 78.4kN {8000kgf}
12000: 117kN {12000kgf}
16000: 156kN {16000kgf}
22000: 215kN {22000kgf}
32000: 313kN {32000kgf}
50000: 490kN {50000kgf}		 ｜
｜
｜
｜
｜
｜
｜
｜
｜		 ｜
Nominal stroke
5: 500mm
10: 1000mm
15: 1500mm
20: 2000mm
type
B: Wet-type slip clutch type
C: Thrust detection limit switch type		 Nominal speed
S, L, M, H
Please refer to
the detailed information
for actual speeds.

■ Tsubaki model No. navigation

Selectable model number:

View product details

*To generate the correct model number, select items in order from left to right.

series type Rated thrust Nominal speed Stroke

LPU













type

B: Wet-type slip clutch is built in as an overload protection device.

C: Equipped with Thrust detection limit switch.

Rated thrust

This is the rated thrust at which the motor can operate.

Nominal speed

This is the cylinder operating speed when the motor is rotating synchronously.

Please refer to the detailed information for the speed values of each model.

Nominal stroke

This is the stroke distance of the operating part. The manufacturing range varies depending on the thrust.

Motor Specifications

Z: Inverter drive compatible.

V: The power supply voltage and frequency are 400/400/440V, 50/60/60Hz.

V1: The power supply voltage and frequency are 380V and 50Hz.

V2: The power supply voltage and frequency are 380V, 60Hz.

V3: The power supply voltage and frequency are 415V, 50Hz.

V4: The power supply voltage and frequency are 460V, 60Hz.

T1: Heat resistance class F, resistant to 40°C.

T2: Heat resistance class F, 60°C.

T3: Heat resistance class F, 80°C.

T4: Heat resistance class H, 80°C resistant.

N: CE compliant.

N2: UL standard compliant specifications.

N3: CCC specification.

D: Pressure-resistant and explosion-proof.

A: It is an adapter without a motor.

Option symbol

L: Comes with two external stroke adjustment LSs.

L3: Comes with 3 external stroke adjustment LSs.

K2: Two built-in microswitches detect the stroke position.

K4: Equipped with four built-in microswitches that detect the stroke position.

P: Equipped with a potentiometer that detects the stroke position.

R: Equipped with a rotary encoder that outputs a stroke movement signal.

C: Equipped with clevis.
Cannot be installed simultaneously with position detection options K2, K4, P, and R.

U: Comes with a U-shaped End fitting.

J: It comes with bellows.

*Options are available for the following voltages.

Please check here for option model numbers.

Product model number list

*Click on the model number to display detailed information. Open all Close all

Rated thrust 58.8kN {6000kgf} (Model number LPUB6000~/LPUC6000~)

Rated thrust 78.4kN {8000kgf} (Model number LPUB8000~/LPUC8000~)

Rated thrust 117kN {12000kgf} (Model number LPUB12000~/LPUC12000~)

Rated thrust 156kN {16000kgf} (Model number LPUB16000~/LPUC16000~)

Rated thrust 215kN {22000kgf} (Model number LPUB22000~/LPUC22000~)

Rated thrust 313kN {32000kgf} (Model number LPUB32000~/LPUC32000~)

Rated thrust 490kN {50000kgf} (Model number LPUB50000~/LPUC50000~)

speed stroke
mm		 Wet-type
slip clutch		 Thrust detection limit switch included*
L  500LPUB50000L5 LPUC50000L5
1000LPUB50000L10 LPUC50000L10
1500LPUB50000L15 LPUC50000L15
2000LPUB50000L20 LPUC50000L20
M  500LPUB50000M5 LPUC50000M5
1000LPUB50000M10 LPUC50000M10
1500LPUB50000M15 LPUC50000M15
2000LPUB50000M20 LPUC50000M20
H  500LPUB50000H5 LPUC50000H5
1000LPUB50000H10 LPUC50000H10
1500LPUB50000H15 LPUC50000H15
2000LPUB50000H20 LPUC50000H20

*LPUC50000 cannot stop by pushing (pulling).
