Snap cover chain RF-SC, RS-SC type
- Chain pitch
9.525, 12.70, 15.875, 19.05, 25.40, 31.75mm - For straight running
- With a larger allowable tension than Plastic block chain, it is ideal for layouts with long transport distances
- The cover that comes into contact with the transported items is made of plastic to prevent scratches on the transported items.
- With a lineup of six different chain sizes, it can be used for a wide range of purposes.
Features
- - With a larger allowable tension than Plastic block chain (RS60-SC is approximately 7 times that of RSP60), it is ideal for layouts with long transport distances.
- - The cover that comes into contact with the transported items is made of plastic to prevent scratches on the transported items.
- - With a lineup of six different chain sizes, it can be used for a variety of purposes.

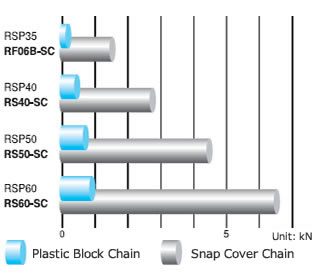

allowable tension comparison
*Compared to Plastic block chain
(RS80-SC, RS100-SC are Plastic block chain
No comparison shown due to lack of comparable sizes)
Motor position comparison
Plastic block chain: 2 motors

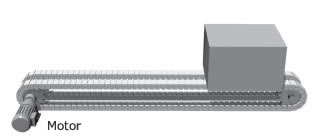

Snap cover chain: 1 motor
Main chain specifications/Snap cover specifications
It consists of a steel body chain and a plastic snap cover.
When selecting a product, please select the specifications of the main chain and the snap cover.
- Main body chain specifications
- Standard Series:
The main chain is made of steel, and its main dimensions are the same as those of a regular roller chain, but the shape of the pin ends is different.
Please note that the strength is weaker than RS roller chain for drives.
- NP Series (Ni plating):
The main chain is nickel-plated to Standard Series, which gives it a beautiful appearance and makes it rust-resistant.
- LMC NP Series (Lambda):
NP Series main chain uses special oil-impregnated bush that use NSF H1 compliant oil, allowing it to be used Lube-free (lambda) and for a long life.
- SS Series:
All parts of the main chain are made of 18-8 stainless steel, so it can be used in environments where corrosion resistance is a priority.
・Plastic cover specifications
-
Specification part Material color Features Standard
(without electrostatic preventive function)Main body Polyacetal white
Used for general purposes. Joint Polyacetal light blue
The joints can be easily identified. Conductive specifications Main body
JointConductive Polyacetal Black
Prevents dust from sticking due to static electricity, electrical noise and sparks
It is used in applications where you want to suppress the occurrence of dust.
(Specific electrical resistivity 1×10 6 Ω cm)
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | △ | △ | △ | △ | △ | △ | △ |
| Medium | △ | △ | ● | ● | ● | ● | ● | ● | △ |
| Small | △ | △ | ● | ● | ● | ● | ● | ● | △ |
Purpose
- ■ Small items and pallet transport
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 9.525, 12.70, 15.875, 19.05, 25.40, 31.75 | |||
|---|---|---|---|---|
| Purpose | For straight running | |||
| Chain Type | - | |||
| - | ||||
| Main body chain specifications | Standard Series | Lambda Specification | NP Series | SS Series |
| Pin Type | - | |||
| Pin Material | - | |||
| Pin Shape | - | |||
| Top plate thickness mm | - | |||
| Pusher Material | - | |||
| Other features | - | |||
| Model | RF-SC,RS-SC | RF-LMSC,RS-LMCSC | RF-NPSC,RS-NPSC | RF-SSSC,RS-SSSC |
|
 |
 |
 |
|
| Chain width mm | - | |||
| Organizational Unit | - | |||
