Ultra PX belt HY type
- The use of a hybrid core made of glass and carbon has resulted in significantly higher strength and rigidity.
- We have pushed the performance required of a belt to the limit, achieving even higher load transmission and longer life.
- * HY Type are made to order.
- ＊1本単位販売とロット単位販売を併用します。
Features
- *“Ultra” high strength:
High transmission capacity is achieved by using a hybrid core wire made from highly rigid carbon and specially treated glass fiber.
It has a transmission capacity 1.3 to 2.0 times that of Ultra PX Belt HC Type, allowing for more compact equipment and reduced mass. - *“Ultra” high rigidity:
The use of hybrid core wires has reduced load elongation, enabling high-speed, high-load transmission.
It also speeds up the device by significantly shortening the decay time and reducing the maximum amplitude.
1. “Ultra” high strength

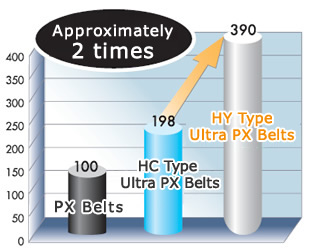

Transmission capacity (index comparison)

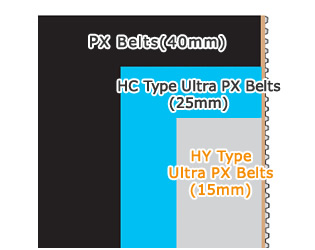

Comparison of the same transmission capacity range
2. “Ultra” high rigidity

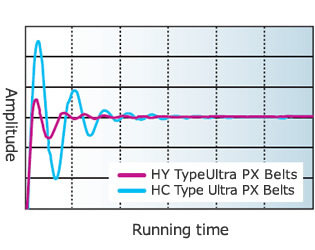

Attenuation characteristics comparison

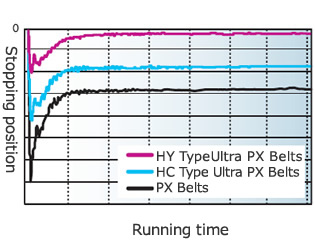

Stopping accuracy comparison
Catalogs and Instruction Manuals
Model number display example
| BG | 600 | UP | 3M | 10 | - | HY |
| ｜ ｜ ｜ |
｜ Belt length mm |
｜ ｜ ｜ |
｜ Types (pitch) |
｜ Belt width mm |
｜ specification |
|
| Synchronous Belt | P:PX UP: Ultra PX |
|||||
Product List
*Click to display detailed information.
| Pitch mm |
Basic model number | Belt width mm | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 10 | 15 | 25 | 40 | 60 | 80 | 100 | 120 | ||
| 3 | UP3M6-HY | ○ | ||||||||
| UP3M10-HY | ○ | |||||||||
| UP3M15-HY | ○ | |||||||||
| 5 | UP5M10-HY | ○ | ||||||||
| UP5M15-HY | ○ | |||||||||
| UP5M25-HY | ○ | |||||||||
| 8 | UP8M15-HY | ○ | ||||||||
| UP8M25-HY | ○ | |||||||||
| UP8M40-HY | ○ | |||||||||
| UP8M60-HY | ○ | |||||||||
| 14 | UP14M40-HY | ○ | ||||||||
| UP14M60-HY | ○ | |||||||||
| UP14M80-HY | ○ | |||||||||
| UP14M100-HY | ○ | |||||||||
| UP14M120-HY | ○ | |||||||||
