Drive sprocket standard series (pilot bore)

Product Photos
  • ​​RS sprockets are the perfect match for ​RS roller chain G8.
  • Sprockets for general-purpose Drive chain (JIS and ISO standards). A wide range of products are standardized.
  • Our lineup includes steel type (non-hardened and hardened tooth tips), TOUGH TOOTH (recommended for heavy duty drive chains), stainless steel type, and engineering plastic type.​​
    ​

Features and lineup

You can choose from a wide range of products to suit your needs.

  • *Steel type:
    General-purpose type. Hardened tooth tip specifications are also available for improved wear resistance.
  • * TOUGH TOOTH:
    It has improved strength and durability, primarily for Heavy duty drive chain.
  • *Stainless steel type:
    It is mainly used in combination with stainless steel chains. We also have a selection of "wear-resistant" sprockets that use stainless steel with excellent corrosion resistance and have improved wear resistance.
    Note: Please use surface treated sprockets for coated chains.
  • *Engineering plastic type:
    Made of nylon resin, it can be operated without lubrication and is suitable for light load applications.
  • *Surface treatment specifications (special product):
    Depending on the corrosion resistance required, you can choose from black oxide, electroless nickel-phosphorus plating, or electro-galvanized plating (trivalent chromate treatment).
  • * Shaft mounted sprocket:
    The shaft is manufactured together with the sprocket and delivered together.
×
(You can move it by dragging it)

  • - Hardened tooth tip

    If you require increased tooth strength and wear resistance, we recommend sprockets with hardened teeth.
    Each size has a small tooth count machined carbon steel hub and a single dual type (SD).
    The tooth tips are hardened.

×
(You can move it by dragging it)

Sprocket Stainless steel type wear-resistant specification

Sprocket Stainless steel type wear-resistant specification
  • - Recommended sprocket for stainless steel chain HS Series.
  • - Improved wear resistance compared to stainless steel sprockets.
  • - Suitable not only HS Series stainless steel chains, but also for SS Series and other chains where you want to improve wear life.
    *The surface is treated to provide a longer life than stainless steel sprockets (based on our testing results).
    *Corrosion resistance is equivalent to that of stainless steel sprockets.
  • ・Applicable sizes: RS40 to RS80, RF2040 to RF2080
  • ・Please contact us for details.
×
(You can move it by dragging it)
×
(You can move it by dragging it)

Shaft mounted sprocket

  • - No labor is required to assemble the sprocket onto the shaft.
  • ・No need for shaft acceptance inspection. Inspection results can be reported in the inspection report. (Charged)
  • ・It can be installed directly on the device after delivery. (Bearings and other components can be installed after consultation.)
  • - Sprockets and shafts are procured from the same supplier, which reduces management time compared to procuring them separately.

Comparison of installation work hours

Comparison of installation work hours

No need to incorporate a sprocket, reducing installation time to equipment by approximately 30% to 35%

Specification

Shaft built-in type

The shaft is manufactured together with the sprocket,
A type with a built-in sprocket.

Shaft built-in type

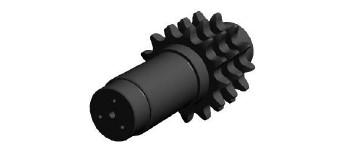

Integrated type

A type in which the shaft is machined.

Integrated type
  • Lock Sprocket are also available.
  • ・We will handle any necessary installation matters such as phase matching.
  • ・Please contact us for details.

Note: When selecting sprocket specifications

- You must select a sprocket that is compatible with your operating environment and the chain specifications you are using. For details, please refer to the compatibility chart for various chains and sprockets.

・The shaft hole is a pilot bore hole, so you will need to process the shaft hole yourself before use. If you require a product with a processed shaft hole, please click here

If you require bearing hole processing, click here. If you require keyless fastening, click here.

Sprocket structure

Model code A-type
(flat plate type)		 B type
(Single hub type)		 C type
(double hub type)		 SD type
(single dual)
Structure A-type B type C type SD type
RS-HT chain (SUPER-H, HT, etc.) multiple strand Note 1 A shape that allows two single strand chains to be hung at the same time
HB type HC type
Use depending on the structure It is used when attaching to a rotating body such as the center member of a torque limiter. It is the most versatile. Used when the key surface pressure is insufficient with the large driven sprocket or B type. It is used by hanging two single strand chains at the same time.

Note
1. The total tooth width (transverse pitch) of RS-HT chain multiple strand (HB type, HC type) is different from the standard.

Catalogs and Instruction Manuals

Model number display example

RS40 - 1 B 21T Q
｜
size		 ｜
No. of strands		 ｜
Hub type		 ｜
Number of teeth		 ｜
Tooth tip hardening
None: No tooth tip hardening
Q: Hardened teeth

RS40 - SD 21T Q
｜
size		 ｜
Hub type		 ｜
Number of teeth		 ｜
Tooth tip hardening
None: No tooth tip hardening
Q: Hardened teeth
Single dual type
(for two single strands)

RS40 - 1 B 21T - SS
｜
size		 ｜
No. of strands		 ｜
Hub type		 ｜
Number of teeth		 ｜
Specification Code
SS: Stainless steel
SST: Stainless steel type, wear-resistant
P: Engineering plastic

RS80 - 2 B 21T Q - T - K1
｜
size		 ｜
No. of strands		 ｜
Hub type		 ｜
Number of teeth		 ｜
Tooth tip hardening
None: No tooth tip hardening
Q: Hardened teeth		 ｜
Series symbol
T: TOUGH TOOTH		 ｜
option
K1: Coating specification

Product List

*Click to display detailed information.

size type Steel Type
No. of strands For single strand for double strand SD
(single dual)
Hub
format		 1A 1B 1C 2A 2B 2C
shape
RS15 Basic model number --- RS15-1B□T --- --- --- --- ---
Tooth number range 11T～35T
RS25 Basic model number --- RS25-1B□T-◇ --- --- --- --- ---
Tooth number range 10T～32T
RS35 Basic model number --- RS35-1B□T■ --- --- --- --- ---
Tooth number range 9T～75T
RS40 Basic model number RS40-1A□T■ RS40-1B□T■ RS40-1C□T■ RS40-2A□T■ RS40-2B□T■ RS40-2C□T■ RS40-SD□TQ
Tooth number range 12T～75T 9T～75T 28T～75T 35T～60T 12T～60T 35T～60T 12T～25T
RS50 Basic model number RS50-1A□T■ RS50-1B□T■ RS50-1C□T■ RS50-2A□T■ RS50-2B□T■ RS50-2C□T■ RS50-SD□TQ
Tooth number range 12T～75T 9T～75T 28T～75T 26T～60T 12T～60T 26T～60T 12T～25T
RS60 Basic model number RS60-1A□T■ RS60-1B□T■ RS60-1C□T■ RS60-2A□T■ RS60-2B□T■ RS60-2C□T■ RS60-SD□TQ
Tooth number range 12T～75T 9T～75T 28T～75T 23T～60T 12T～60T 23T～60T 12T～25T
RS80 Basic model number RS80-1A□T■ RS80-1B□T■ RS80-1C□T■ RS80-2A□T■ RS80-2B□T■ RS80-2C□T■ RS80-SD□TQ
Tooth number range 12T～75T 9T～75T 22T～75T 18T～60T 12T～60T 18T～60T 12T～18T
RS100 Basic model number RS100-1A□T■ RS100-1B□T■ RS100-1C□T■ RS100-2A□T■ RS100-2B□T■ RS100-2C□T■ ---
Tooth number range 12T～75T 10T～75T 22T～75T 15T～60T 12T～60T 15T～60T
RS120 Basic model number RS120-1A□T■ RS120-1B□T■ RS120-1C□T■ RS120-2A□T■ RS120-2B□T■ RS120-2C□T■ ---
Tooth number range 12T～75T 10T～75T 22T～75T 14T～60T 12T～60T 14T～60T
RS140 Basic model number RS140-1A□T■ RS140-1B□T■ RS140-1C□T■ --- --- --- ---
Tooth number range 10T～60T 10T～60T 22T～60T
RS160 Basic model number RS160-1A□T■ RS160-1B□T■ RS160-1C□T■ --- --- --- ---
Tooth number range 10T～60T 10T～60T 22T～60T
RS180 Basic model number RS180-1A□T■ RS180-1B□T■ RS180-1C□T■ --- --- --- ---
Tooth number range 11T～60T 11T～20T 21T～60T
RS200 Basic model number RS200-1A□T■ RS200-1B□T■ RS200-1C□T■ --- --- --- ---
Tooth number range 11T～60T 11T～18T 19T～60T
RS240 Basic model number RS240-1A□T■ RS240-1B□T■ RS240-1C□T■ --- --- --- ---
Tooth number range 11T～60T 11T～14T 15T～60T
RF06B Basic model number --- RF06B-1B□T■ --- --- --- --- ---
Tooth number range 9T～60T
RS08B Basic model number RS08B-1A□T■ RS08B-1B□T■ --- --- RS08B-2B□T■ --- ---
Tooth number range 12T～60T 9T～60T 12T～60T
RS10B Basic model number RS10B-1A□T■ RS10B-1B□T■ --- --- RS10B-2B□T■ --- ---
Tooth number range 12T～60T 9T～60T 12T～60T
RS12B Basic model number RS12B-1A□T■ RS12B-1B□T■ --- --- RS12B-2B□T■ --- ---
Tooth number range 12T～60T 9T～60T 12T～60T
RS16B Basic model number RS16B-1A□T■ RS16B-1B□T■ --- --- RS16B-2B□T■ --- ---
Tooth number range 12T～60T 9T～60T 12T～60T
size type Stainless steel type Engineering plastic type
No. of strands single strand
Hub type 1B 1C 1B
shape
RS11 Basic model number RS11-1B□T-SS RS11-1C□T-SS ---
Tooth number range 12T～48T 12T～48T
RS25 Basic model number RS25-1B□T-SS --- ---
Tooth number range 10T～40T
RS35 Basic model number RS35-1B□T-SS --- RS35-1B□T-P
Tooth number range 10T～40T 13T～30T
RS40 Basic model number RS40-1B□T-SS --- RS40-1B□T-P
Tooth number range 10T～40T 12T～30T
RS50 Basic model number RS50-1B□T-SS --- RS50-1B□T-P
Tooth number range 10T～40T 13T～30T
RS60 Basic model number RS60-1B□T-SS --- RS60-1B□T-P
Tooth number range 10T～30T 13T～30T
RS80 Basic model number RS80-1B□T-SS --- ---
Tooth number range 10T～25T

Click here for TOUGH TOOTH compatible sizes
