Plastic modular chain WT1907-K type
- チェーンピッチ
19.05mm - For straight running
- Raised rib type
- Short-pitch raised rib type WT1900 series
- Ideal for transporting small containers and rubber sheets.
Features
- The raised rib type, when combined with a transfer plate, eliminates gaps that occur at transfer points.
- This prevents the transported items from getting caught or entangled, allowing for smooth transfers.

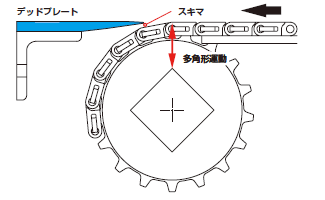

In the case of a dead plate
In the case of a dead plate, the gap between the dead plate and the top surface of the chain changes as the chain moves up and down due to polygonal movement.
Depending on the shape of the transported item, it may get caught in this gap and fall over.

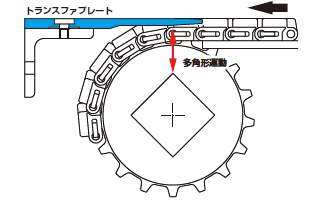

For transfer plates
In the case of a transfer plate, the comb of the transfer plate can be inserted between the ribs on the top surface of the chain to a position where it is not affected by polygonal movement.
This has the effect of preventing the transported items from tipping over.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | ○ | ○ | △ | △ | △ | ○ | △ | △ | △ |
| Medium | ● | ● | △ | △ | ○ | ● | ○ | ○ | ○ |
| Small | ● | ● | ● | ● | ● | ● | ● | ● | ● |
Purpose
- ■ Small container transport
- ■Rubber sheet transport
- ■ Shower equipment
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 19.05 |
|---|---|
| Purpose | For straight running |
| Chain Type | Raised rib type |
| - | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | - |
| Model | WT1907-K |
|
|
| Chain width mm | 228.6～3835.4 |
| Organizational Unit | Every 76.2 mm |
