Plastic modular chain WTM2535G-M type
- チェーンピッチ
25.4mm - For straight running
- Closed type
- Magnet type
- WTM2530 series with magnets embedded in the link plates
- Magnets embedded in the link plates attract the transported object (magnetic material), enabling inclined transport.
- Ideal for transporting trays in parallel.
Features
-
- Reduced damage to transported items and chains
The low magnetic force (approximately 60% of the magnetic force of the BTM8H type) reduces the impact when the transported item separates from the chain, minimizing damage to the transported item and chain.

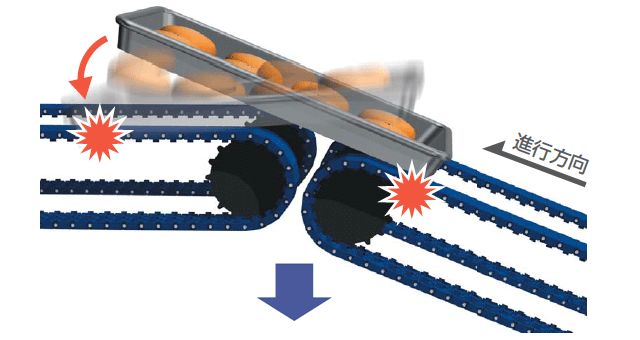

If the magnet's magnetic force is too strong...
If the magnetic force is too strong, the tray will not separate from the chain easily, causing the chain on the inclined conveyor to lift up, and both the tray and the chain will be subjected to impact when transferring.

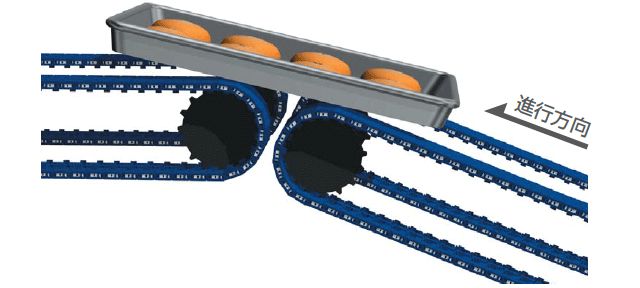

By using a low-magnetic-force magnet...
If the magnetic force is low, the impact when transferring will be small, and damage to both the tray and the chain will be minimal.
-

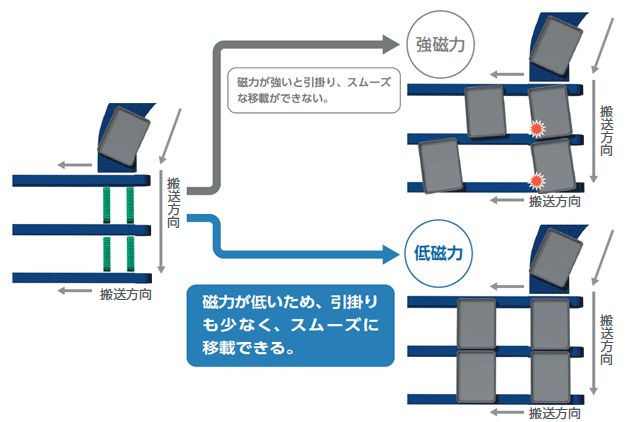

・Smooth transfer
When transferring at right angles, if the magnetic force is low, the transfer will be smooth.
-
- Slide plug system is used, making cut and connect easy
A slide plug system is used on both sides of the chain.
It can be accessed from either the left or right side, so you can insert and remove pins simply by sliding the plug, which also helps reduce maintenance work.
-

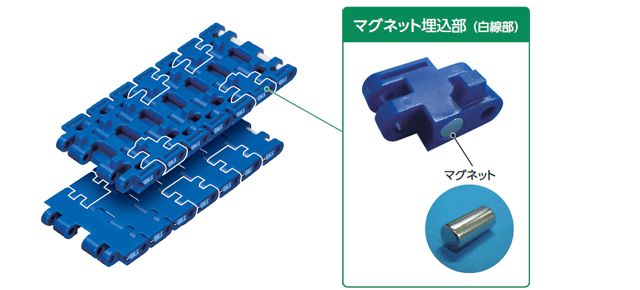

・Cylindrical magnet prevents the magnet from popping out
A cylindrical magnet is used, preventing the magnet from flying out during sliding wear.
Note: We do not guarantee that the product can be used with the magnet protruding.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | △ | ○ | ○ | △ | ○ | △ | △ |
| Medium | ○ | ○ | △ | ● | ● | △ | ● | △ | △ |
| Small | ● | ● | △ | ● | ● | △ | ● | △ | △ |
Purpose
- ■Transporting trays in parallel
- ■ Inclined transport of trays in parallel use
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 25.4 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| Magnet type | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | Meandering prevention attachment available |
| Model | WTM2535G-M |
|
|
| Chain width mm | 82.6 |
