Product Info Top chain
Top chain is a conveyor chain in which the top plate and chain section are integrated and connected by a joint pin.
There are Plastic top chain, which has plastic plates that prevent scratches on the transported objects, and Stainless Steel Top chain which has stainless steel plates that are highly corrosion-resistant and suitable for transporting heavy objects.
Our lineup also includes Snap top chain, which are steel chains with plastic plates attached, and accumulation chains, which have rollers built into the top plate.
table of contents
Top chain Related Information
-
Selection
-
Materials
-
Operation
Top chain Features
Common Features
- Feature 1Protection of transported items: Prevents scratches on products caused by sliding >>See details
- Feature 2: A wide range of top plate widths and shapes are available >>See details
- Feature 3: Extensive lineup of curved conveyor chains >>See details
Protection of transported items: Reduces scratches caused by sliding
Its excellent sliding properties prevent scratches on valuable products and parts caused by sliding.
A lineup of various top plate widths and shapes
With a wide variety of types available, you can select a chain that best suits the items you are transporting.
A wide range of curved conveyor chains are also available
A wide variety of chain pitches and widths are available, allowing for a variety of curved conveyances.
Features of Plastic Top Chain and Stainless Steel Top chain
Conveyor chain with a large allowable tension and a stainless steel top plate suitable for transporting heavy loads
It has twice allowable tension of the TTP type Plastic Top Chain and uses highly corrosion-resistant stainless steel for its main parts.
It has both heat and chemical resistance.
There are types where the top plate and chain are made as one unit, and types where the chain and top plate are joined together.

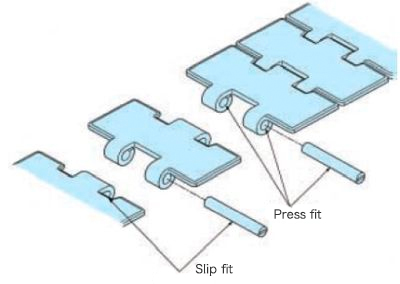

・An example of a type made in one piece

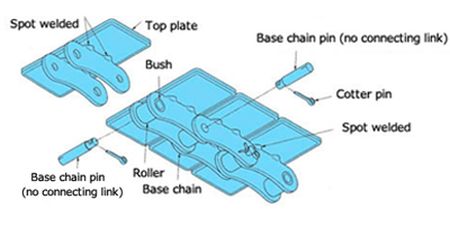

・An example of a bonded type
straight running list
- チェーンピッチ
38.1mm - For straight running
- -This is a chain with a global standard shape.
- - The smooth R chamfer on the entire top surface of the plate allows for smooth transfer.
Top plate width mm
63.5, 76.2, 82.6, 101.6, 114.3, 127.0, 152.4, 190.5
- チェーンピッチ
38.1mm - For straight running
- - A conveyor chain with plates attached to double pitch chain, allowing the use of Double pitch sprockets.
- - There are various specifications available, such as a hardened plate that improves the wear resistance of the plate, and a hard chrome plated + buffed plate on the top surface of the plate, allowing you to select the type that best suits your workpiece and the environment.
Top plate width mm
32.0, 33.0, 34.0, 35.0, 40.0, 50.0, 55.0, 63.5, 76.2, 82.6, 95.0, 101.6, 110.0, 114.3, 127.0, 152.4, 190.5
- チェーンピッチ
38.1mm - For straight running
- - There is little gap between the top surfaces of the slats, preventing transported items from getting caught.
Top plate width mm
63.5, 76.2
- チェーンピッチ
38.1mm - For straight running
- - The top plate (carbon steel) is hardened and quenched, making it less susceptible to scratches.
Top plate width mm
55.0, 63.5, 76.2, 82.6, 95.0, 101.6
