Plastic modular chain WT0405-W type
- チェーンピッチ
4.5mm - For straight running
- Closed type
- Tsubaki Plastic modular chain Minimum Chain Pitch WT0400 Series
High-performance Plastic modular chain made with PEEK resin - The main body link is made of PEEK resin, which provides excellent resistance to wear, heat, and chemicals.
Features
-

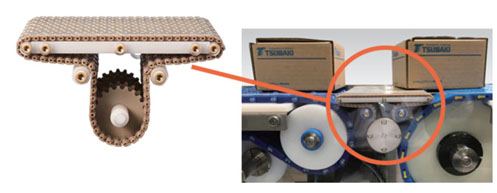

- Tsubaki Plastic modular chain with a minimum pitch of 4.5 mm enables compact conveyor designs
Since the space in-line for conveyors to meet can be minimized, it can also be used as a transfer unit between conveyors.
-
-Excellent radiation resistance and can be used in vacuum environments
Plastic modular chain is made from PEEK resin, a crystalline resin that has excellent heat resistance (up to 150°C), chemical resistance, and sliding properties.
It has excellent radiation resistance and emits little gas in a vacuum, so it can be used in a vacuum environment.
-
・Complies with the Food Sanitation Act (Ministry of Health, Labour and Welfare Notification No. 370) and the FDA (U.S. Food and Drug Administration)

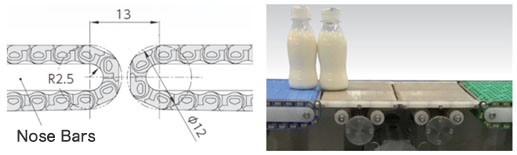

Example of using a layout where conveyors in-line
By using a nose bar with a minimum R of 2.5 mm, it is possible in-line conveyors so that they are butted together.
By reducing the conveyor spacing (minimum 13 mm), layouts can be created without using dead plates.
Note
1. Please contact us for more information.
2. Please contact us for accessories.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | △ | △ | △ | △ | △ | △ | △ |
| Medium | △ | △ | △ | ○ | △ | ○ | ○ | ○ | ○ |
| Small | △ | ● | △ | ● | ● | ● | ● | ● | ● |
Purpose
- ■Transfer units for entrances and exits in high-temperature environments such as drying furnaces and ovens
- ■ In an environment where chemicals are used, such as cleaning and sterilizing the filling room
- ■Transport conveyor in a vacuum environment
- ■Transporting small items that are prone to tipping over and preventing items from remaining behind with dead plates
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 4.5 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| - | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | - |
| Model | WT0405-W |
|
|
| Chain width mm | 90～945 |
| Organizational Unit | Every 45mm |
