Chain cutting tool
- Tools for cutting chains to the required length.
- Cradle ・Chain vises
- Punch (primary punch, secondary punch)
- Chain screw
- Cutting tools for Poly-steel chain and Lambda Chain
Catalogs and Instruction Manuals

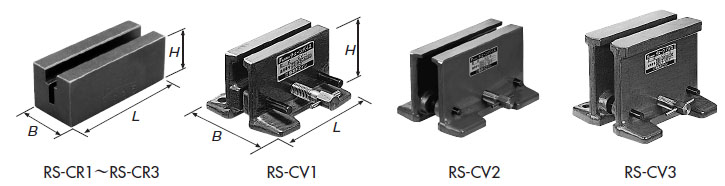

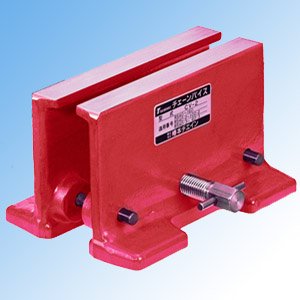

Chain cradle and chain vises
Use it together with the punch to cut the chain.
Usage example
The roller chain can be fixed by setting it in the chain vise.
It can also be used to secure the pin when grinding the end.
variety
[Click to enlarge]
| Model number | Applicable chain | size | Standard price | Delivery | ||||
|---|---|---|---|---|---|---|---|---|
| single strand | 2 rows | 3 rows | L | H | B | |||
| RS-CR1 | RS15 | - | - | 50 | 16.4 | 20 | Please contact us | Please contact us |
| RS-CR2 | RS25 | - | - | 50 | 19 | 20 | Please contact us | Please contact us |
| RS-CR3 | RS35 | - | - | 60 | 30 | 30 | Please contact us | Please contact us |
| RS-CV1 | RS40～80 | RS40 | - | 100 | 65 | 94～115 | Please contact us | Please contact us |
| RS-CV2 | PS40～160 | RS40～100 | RS40～100 | 180 | 110 | 120～151 | Please contact us | Please contact us |
| RS-CV3 | RS80～240 | RS80～160 | RS80～100 | 200 | 170 | 180～220 | Please contact us | Please contact us |

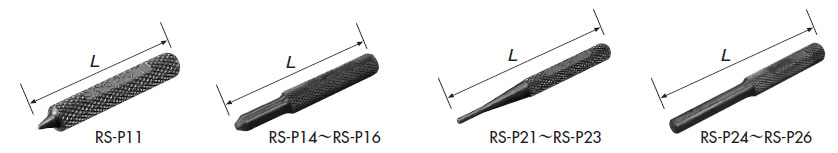

Punch (primary punch, secondary punch)
Primary Punch
Secondary Punch
The primary punch is the first punch used to cut the chain.
The secondary punch is used after the primary punch to remove the pin.
[Click to enlarge]
First Punch
| Model number | L mm |
Applicable chain | Standard price | Delivery |
|---|---|---|---|---|
| RS-P11 | 52 | RS15,RS25,RS35 | Please contact us | Please contact us |
| RS-P14 | 60 | RS40～60 | Please contact us | Please contact us |
| RS-P15 | 70 | RS80～120 | Please contact us | Please contact us |
| RS-P16 | 80 | RS140～240 | Please contact us | Please contact us |
Secondary Punch
| Model number | L mm |
Applicable chain | Standard price | Delivery |
|---|---|---|---|---|
| RS-P21 | 65 | RS15 | Please contact us | Please contact us |
| RS-P22 | 70 | RS25 | Please contact us | Please contact us |
| RS-P23 | 80 | RS35 | Please contact us | Please contact us |
| RS-P24 | 80 | RS40～60 | Please contact us | Please contact us |
| RS-P25 | 90 | RS80～120 | Please contact us | Please contact us |
| RS-P26 | 120 | RS140～240 | Please contact us | Please contact us |
*RS-P11 can be used with three sizes: RS15, RS25, and RS35.

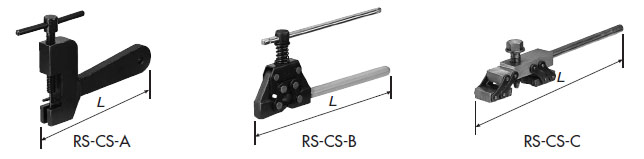

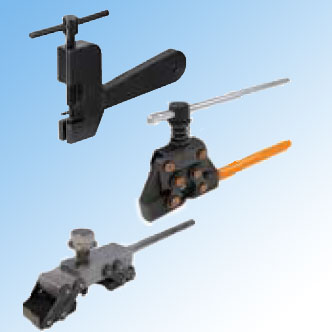

Chain screw
This is a special tool for disassembling roller chains while they are still set in the device.
Usage example
[Click to enlarge]
| Model number | L mm |
Applicable chain | Standard price | Delivery | |
|---|---|---|---|---|---|
| Chain number | No. of strands | ||||
| RS-CS-A1 | 116 | RS25 | 1 | Please contact us | Please contact us |
| RS-CS-A2 | 119 | RS35 | 1 | Please contact us | Please contact us |
| RS-CS-A3 | 119 | RS41 | 1 | Please contact us | Please contact us |
| RS-CS-A4 | 119 | RF06B | 1 | Please contact us | Please contact us |
| RS-CS-B1 | 185 | RS40～60 | 1, 2 | Please contact us | Please contact us |
| RS-CS-C1 | 222 | RS80・100 | 1, 2 | Please contact us | Please contact us |
| RS-CS-C2 | 290 | RS120・140 | 1, 2 | Please contact us | Please contact us |
| RS-CS-C3 | 708 | RS160～240 | 1, 2 | Please contact us | Please contact us |

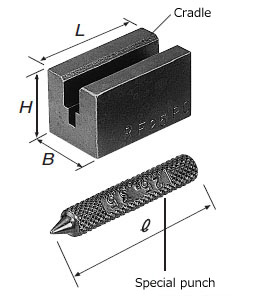

Cutting tool for Poly-steel chain
Standard chain cutting tools cannot be used with Poly Steel Chain. A special Poly Steel Chain vise and punch are needed.
[Click to enlarge]
| Model number | L | H | B | ℓ | Applicable chain | Standard price | Delivery |
|---|---|---|---|---|---|---|---|
| RS-PC01-AST | 35 | 20 | 20 | 52 | RS25-PC-1 | Please contact us | Please contact us |
| RS-PC02-AST | 50 | 30 | 30 | 52 | RS35-PC-1 | Please contact us | Please contact us |
| RS-PC03-AST | 65 | 35 | 35 | 56 | RS40-PC-1 | Please contact us | Please contact us |
| RS-PC04-AST | 80 | 40 | 35 | 56 | RS50-PC-1 | Please contact us | Please contact us |
| RS-PC05-AST | 100 | 45 | 40 | 56 | RS60-PC-1 | Please contact us | Please contact us |
Lambda Chain cutting tool
To disassemble Lambda Chain, a dedicated support stand, primary punch, and secondary punch are required.
[Click to enlarge]
| Model number | L | H | B | Applicable chain | Standard price | Delivery |
|---|---|---|---|---|---|---|
| RS-LMD01-AST | 65 | 32 | 32 | RS40-LMD-1 | Please contact us | Please contact us |
| RS-LMD02-AST | 80 | 40 | 40 | RS50-LMD-1 | Please contact us | Please contact us |
| RS-LMD03-AST | 95 | 48 | 48 | RS60-LMD-1 | Please contact us | Please contact us |
| RS-LMD04-AST | 130 | 60 | 60 | RS80-LMD-1 | Please contact us | Please contact us |
| RS-LMD05-AST | 160 | 73 | 73 | RS100-LMD-1 | Please contact us | Please contact us |
| RS-LMD06-AST | 160 | 88 | 88 | RS120-LMD-1 | Please contact us | Please contact us |
| RS-LMD07-AST | 180 | 98 | 98 | RS140-LMD-1 | Please contact us | Please contact us |
| RS-LMD08-AST | 200 | 114 | 114 | RS160-LMD-1 | Please contact us | Please contact us |
