Shock Relay ED Series
- Digital economy type
- You can easily set the setting value while looking at the digital display.
- One model now supports 24 to 240V AC/DC.
Standard Model

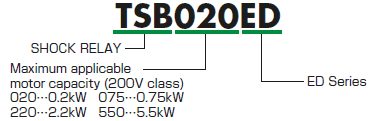

| Model number | Operating power supply voltage 24-240V AC/DC |
TSB020ED | TSB075ED | TSB220ED | TSB550ED | ||
|---|---|---|---|---|---|---|---|
| Applicable motor capacity | 200V class | CT penetration number selection DIP switch | T2 | 0.1kW | 0.4kW | 1.5kW | 3.7kW |
| T1 | 0.2kW | 0.75kW | 2.2kW | 5.5kW | |||
| 400V class | CT penetration number selection DIP switch | T2 | 0.1, 0.2kW | - | 2.2, 3.7kW | 7.5kW | |
| T1 | 0.4, 0.75kW | 1.5kW | 5.5kW | 11kW | |||
Features
- - The motor current value and various setting values during operation are displayed digitally.
- -Compact and economical with integrated CT.
- - Inverter compatible: Current can be detected accurately when driven by an inverter at frequencies of 20 to 200 Hz.
- -You can choose between self-holding and Auto reset of the output relay.
- ・CE marking, cUL, CCC certified product
