Bearing Bush Chain　NB (Standard) Series

This is an intermittent conveyor chain that uses special needles and has zero wear and elongation.
This makes it possible to use it in transport systems that were previously thought impossible, contributing to automation, labor savings, and higher speeds for improved productivity.

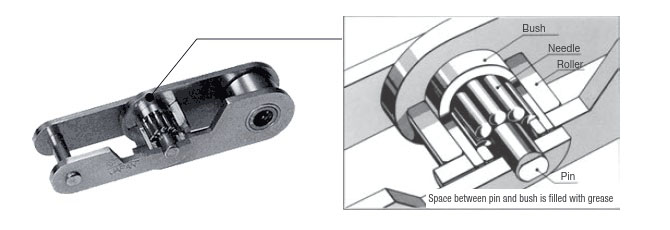

NB (Standard) Series has a needle (made of steel) inserted between the pin and bushing, plus steel (only the plate is nickel-plated).

Features

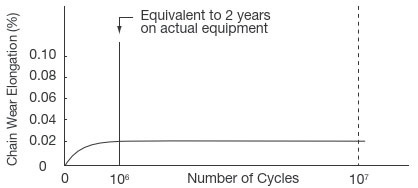

- The chain stretches slightly (0.02%) when the vehicle starts to operate, but there is no subsequent wear or elongation.
・We have a wealth of experience in special shapes and can meet a variety of requests.
- RF Double pitch pitch R roller sprockets can be used.
・使用温度範囲：-10℃～150℃
- Use lubricant suitable for the operating temperature.

It is necessary to select a sprocket specification that corresponds to the customer's operating environment and chain specifications.

NB (Standard) Series Bearing Bush Chain, please use standard steel Double pitch sprockets with R roller specifications.

Please see the chain and sprocket compatibility chart here.

*Click to display detailed information.

*The table below includes related products. The model numbers of the products introduced on this page are colored.

Pitch mm	Bearing Bush Chain			Roller diameter mm	Inner link Inner width mm
Pitch mm	NB (Standard) Series	NBH (High Precision) Series	NBSS (stainless steel) specifications	Roller diameter mm	Inner link Inner width mm
25.40	RF2040R-NB	RF2040R-NBH	RF2040R-NBSS	15.88	7.95
31.75	RF2050R-NB	RF2050R-NBH	RF2050R-NBSS	19.05	9.53
38.10	RF2060R-NB	RF2060R-NBH	RF2060R-NBSS	22.23	12.70
50.80	RF2080R-NB	RF2080R-NBH	RF2080R-NBSS	28.58	15.88
