Linispeed Jack
- This is Ball screw lifting unit that can make the most of the performance of the servo motor.
- Linispeed Jack achieves a maximum operating speed of 200 mm/s and a maximum Percentage duty cycle of 100% ED, helping to improve the productivity of your equipment.
Even when operating at higher speeds, the jack is smaller than conventional jacks, and the newly developed structure allows for a low profile, contributing to more compact equipment.
Features
-
・Super high speed

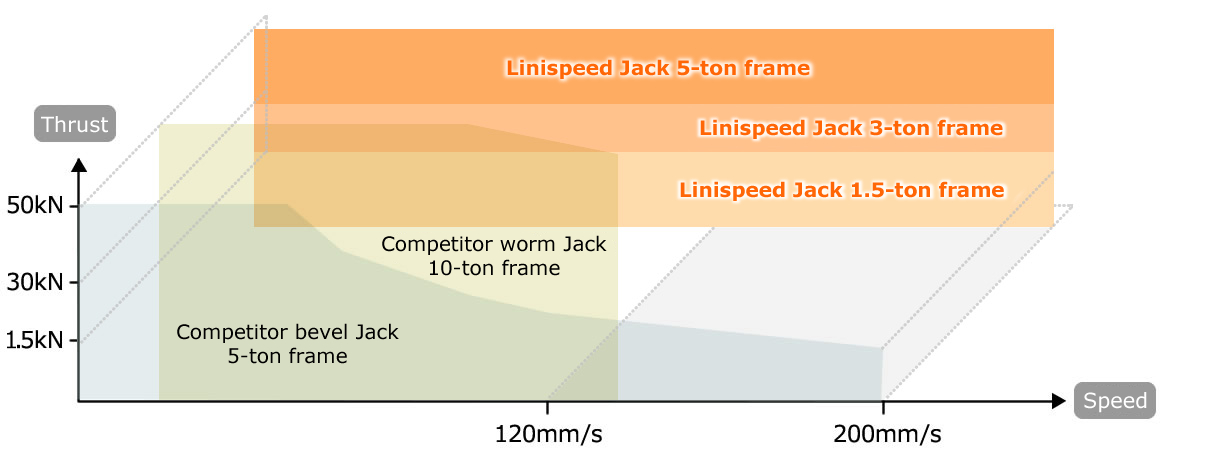

Conventional jacks had a maximum screw shaft speed of 120 mm/s, and the faster the speed, the larger the jack needed to be.
Linispeed Jack achieves a "constant thrust" that can transport heavy loads at high speeds of 200 mm/s without increasing the size.
-
・Low profile and compact
Linispeed Jack is even more compact by placing the ball nut inside the worm wheel.
The dead space that previously existed due to the height of the nut is eliminated, allowing for a lower floor. This reduces the overall height of the device and creates more room for lifting.
-
- Traveling nut specification for pit-less design
Pitless operation is now possible even in environments where pits were previously required.
Basic form
A pit is required in the floor

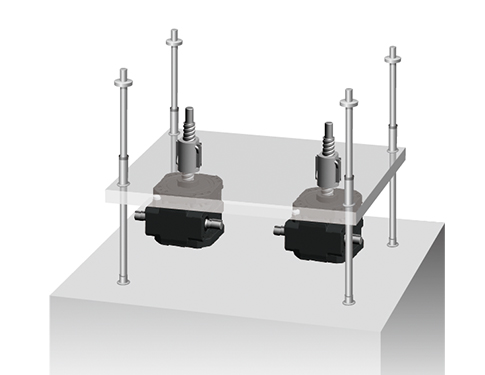

Traveling nut specifications
Can be placed directly on the floor, no pit required
-
・High frequency operation
Linispeed Jack achieve a maximum allowable Percentage duty cycle of 100% ED, enabling continuous operation and greatly contributing to increased productivity of equipment.
Furthermore, Ball screw 's expected travel distance is achieved in line with high-frequency operation.
-
・Comprehensive ease of use
Linispeed Jack maintains ease of installation and interlocking operation, while enabling high-speed, high-frequency operation and a low profile.
Furthermore, high-speed input allows the motor and coupling to be made compact.
Catalogs and Instruction Manuals
Model number display example
| SJ | 015 | H | - | T | S | R | 1 | |
| SJ | 030 | H | - | T | U | T | 4 | |
| SJ | 050 | H | - | P | U | R | 15 | U |
| ｜ Series Name Linispeed jack |
｜ Allowable thrust 015: 15kN 030: 30kN 050: 50kN |
｜ speed H: max. 200mm/s |
｜ ｜ ｜ ｜ ｜ ｜ ｜ |
｜ ｜ ｜ ｜ ｜ |
｜ Shaft Arrangement (See the figure below) |
｜ 称呼ストローク 1：100mm 2：200mm 3：300mm 4：400mm 5：500mm 6：600mm 8：800mm 10：1000mm 12：1200mm 15：1500mm |
｜ Travel flange installation direction U: Upper mounting D: Lower mounting |
|
| Mounting method (See the figure below) |
||||||||
| ｜ Mounting type (screw direction) T: Basic type screw facing upward B: Basic type screw facing downwards P: Traveling nut specification, screw facing upward H: Traveling nut type, screw facing downwards |
||||||||
■ Tsubaki model No. navigation
Allowable thrust
This is the thrust that the jack body can tolerate.
Mounting Type
Indicates the direction of the screw shaft and the presence and position of a flange.
Basic form
T, B: Basic type with moving screw shaft.
Traveling nut specifications
P, H: The screw shaft rotates and the nut moves.
Shaft arrangement
T: Both input shafts.
R: Input shaft is on the right side only.
L: Input shaft is on the left side only.
Stroke
travel distance of the screw shaft.
Flange mounting direction
For traveling nut types, specify which side of the nut the mounting flange should be on.
U: Upper side
D: Lower side
Option symbol
J: It comes with bellows.
I: Equipped with I-type end fitting.
M: Comes with table-shaped End fitting.
K2: Two built-in microswitches detect the stroke position.
K4: Equipped with four built-in microswitches that detect the stroke position.
P: Equipped with a potentiometer that detects the stroke position.
R: Equipped with a rotary encoder that outputs a stroke movement signal.
・Installation type
| U Face Mount |
C Flange cover side |
S Flange/screw side |
||||
|---|---|---|---|---|---|---|
| T or P Screws facing upward |
TU |
PU |
TC Screw tensile load ↑  |
PC Screw tensile load ↓  |
TS Screw compression load ↓  |
PS Screw compression load ↑  |
| Basic form | Traveling nut specifications | Basic form | Traveling nut specifications | Basic form | Traveling nut specifications | |
| B or H Screw downward direction |
BU |
HU |
BC ↓ Screw tensile load |
HC ↓ Screw tensile load |
BS ↑ Screw compression load |
HS ↑ Screw compression load |
| Basic form | Traveling nut specifications | Basic form | Traveling nut specifications | Basic form | Traveling nut specifications | |
-
・The position of the pressure vent and drain plug varies depending on the mounting style. Mounting styles other than screw facing up or down are special orders.
- Bellows are available as special models. Please contact us as consideration is required depending on the screw shaft speed. The bellows protect the screw in a dusty environment. They do not prevent water from entering from the outside.
*Please limit the screw compression load/screw tensile load to 50% of the allowable thrust.
*When a screw compression load is applied to TS, BS, PS, or HS, limit the thrust to 50% of the allowable thrust.
*When a tensile load is applied to the screw with TC, BC, PC, or HC, limit the thrust to 50% of the allowable thrust.
・Shaft arrangement
| T both sides |
R Right side only |
L Left side only |
||||
|---|---|---|---|---|---|---|
| Screw facing up |  |
 |
 |
 |
 |
 |
| Basic form | Traveling nut specifications | Basic form | Traveling nut specifications | Basic form | Traveling nut specifications | |
| Screws facing downwards |  |
 |
 |
 |
 |
 |
| Basic form | Traveling nut specifications | Basic form | Traveling nut specifications | Basic form | Traveling nut specifications | |
Output options
| symbol | Unbranded | J | I | M |
|---|---|---|---|---|
| option |
|
Bellows (special product) |
I-type End fitting |
Table-type End fitting |
・Control options
| option | symbol |  |
|---|---|---|
| Position detection unit (*) | ||
| 2 internal LS | K2 | |
| 4 internal LS | K4 | |
| With potentiometer | P | |
| With rotary encoder | R | |
-
Please check here for option model numbers.
*Please check the option symbols on the page link screen above and arrange them in the order they are listed.
*Regarding the relative positions of the jack and control option, the installation method and cable outlet direction cannot be changed by the customer.
Please contact us for more details.
*If a control option is selected, the shaft arrangement will be T (double shaft).
