Product Info Plastic block chain
Plastic block chain is a chain with a simple structure, consisting of block-shaped links connected by joint pins.
RS Drive chain sprockets can be used, and by using a smaller chain pitch (9.525 to 25.4 mm) than Top chain, the transition area (dead space) can be made smaller, making it easier to transfer.
The chain width is small, ranging from 13 to 63 mm, so it can be installed in small spaces.
*We also have Snap cover chain, which are steel chains with plastic covers attached and have a large allowable tension.
You can select according to the tension and environment in which it will be used.
table of contents
Top chain Related Information
-
Selection
-
Materials
-
Operation
Features of Plastic block chain Snap Cover Chain
Common Features
- Feature 1Protection of transported items: Prevents scratches on products caused by sliding >>See details
- Feature 2RS sprocket (standard) can be used >>See details
- Feature 3Space saving: Compact conveyor design possible >>See details
Protection of transported items: Reduces scratches caused by sliding
This is a versatile plastic conveyor chain with the same chain pitch as RS Chain.
The block-shaped, smooth conveying surface provides excellent sliding properties, preventing scratches on valuable products and parts caused by sliding.
RS sprockets (standard) can be used
RS sprockets (JIS and ISO standard products) for general-purpose Drive chain can be used as is.
They are easily available and available from a wide range of products (materials, number of teeth, etc.).
Space saving: Compact conveyor design possible
The lineup includes chain pitches from 9.525 to 25.4 mm (equivalent to RS35 to RS80).
Like RS roller chain it allows for compact conveyor designs, contributing to space savings.
* Snap cover chain includes chain pitches of 9.525 to 31.75 mm (equivalent to RF06B to RS100).
Features and product list of Plastic block chain Snap Cover Chain
It has allowable tension of a steel chain and is equipped with a plastic cover to prevent scratches on the transported items.
Block-shaped conveyor chain
With Plastic block chain, even in layouts where allowable tension is insufficient, it is possible to protect directly placed transported goods.
Available in six different chain pitches, it can be used for a wide range of applications.

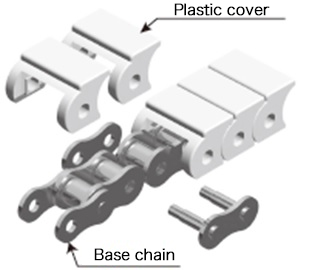

About connecting links
The connecting links are for Snap cover chain only.
connecting link plate can be prevented from coming loose by attaching a plastic cover.
Please note that standard connecting links (cotter pins and spring spring clip) cannot be used.
Snapcover Chain
- Chain pitch
9.525, 12.70, 15.875, 19.05, 25.40, 31.75mm - For straight running
- ・With a larger allowable tension than Plastic block chain, it is ideal for layouts with long transport distances
- - The cover that comes into contact with the transported items is made of plastic to prevent scratches on the transported items.
- - With a lineup of six different chain sizes, it can be used for a variety of purposes.
