Lambda Plastic Roller Conveyor Chain
- It can be used Lube-free and suppresses the generation of metal wear debris.
- This conveyor chain can be used Lube-free, even in places where lubrication is difficult.
- You can maintain a clean environment.
- The rollers are made of engineering plastic, and the bushes are special oil-impregnated bush (other parts are made of steel).
- Usable ambient temperature: 0℃ to 50℃

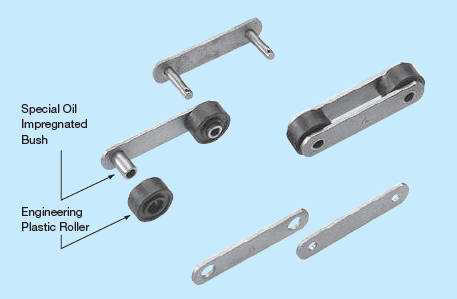

Structure
Features
・Long life Lube-free:
Compared to DT Series, the wear life between the pin and bush and between the bush and roller is significantly improved Lube-free.
・Low noise:
This is 5 to 7 dB less than steel rollers, preventing squealing noise when the rollers roll.
・Low rolling resistance:
55% reduction compared to steel rollers (Lube-free)
- Clean:
Suppresses the generation of metal wear debris.
·lightweight:
This is a 30% reduction compared to steel rollers.
・Compatibility:
It is dimensionally compatible with conveyor chains, and can be replaced with Lambda Plastic Roller conveyor chain without modification (although strength and other factors must be confirmed).
Catalogs and Instruction Manuals
Product List
※Click to display detailed information
* Maximum allowable load is a value calculated based on our design standards and is the calculated strength. Unless otherwise specified, Maximum allowable load is used when selecting Large size conveyor chain.
This value varies depending on the manufacturer and is not a guaranteed value.
*Please contact us for average tensile strength.
| size | Roller Type |
Pitch | Roller Outer diameter |
Inner link Inner width |
|||
|---|---|---|---|---|---|---|---|
| 75mm | 100mm | 125mm | 150mm | Φmm | mm | ||
| RF03 | RP | RF03075RP-LMC | RF03100RP-LMC | --- | --- | 31.8 | 16.1 |
| FP | RF03075FP-LMC | RF03100FP-LMC | --- | --- | |||
| RF05 | RP | --- | RF05100RP-LMC | RF05125RP-LMC | RF05150RP-LMC | 40 | 22 |
| FP | --- | RF05100FP-LMC | RF05125FP-LMC | RF05150FP-LMC | |||
