Plastic top Chain TTUPH Type
- チェーンピッチ
38.1mm - For curved transport
- The use of a comb-tooth plate reduces the gap between the front and rear links, making it ideal for transporting unstable containers such as plastic bottles and dessert cups.
- The improved flatness of the plate top surface effectively prevents containers from flapping or tipping over.
Features

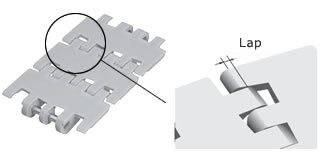

- - A comb-tooth plate is used to reduce the gap between the front and rear links, making it ideal for transporting unstable containers such as plastic bottles and dessert cups.
- - The flatness of the plate top surface has been improved, which is effective in preventing containers from flapping and tipping over.
- - The basic dimensions are the same as the TTUP type, so stable transport of containers is possible simply by replacing the chain.
- - The small chamfers on both ends of the plate allow for smooth side-to-side transfer of containers that tend to get caught.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | △ | △ | △ | △ | △ | △ | △ |
| Medium | ● | ● | △ | ● | ● | ● | ● | ● | ● |
| Small | ● | ● | △ | ● | ● | ● | ● | ● | ● |
Purpose
- ■Transportation of unstable containers such as PET bottles and dessert cups
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 38.1 |
|---|---|
| Purpose | For curved transport |
| Chain Type | - |
| - | |
| Main body chain specifications | - |
| Pin Type | Stainless steel pin type |
| Pin Material | SUS304 |
| Pin Shape | D-pin |
| Top plate thickness mm | 4.0 |
| Pusher Material | - |
| Other features | - |
| Model | TTUPH |
|
|
| Top plate width mm | 82.6 |
Note: Plastic pin type cannot be manufactured.
