BR & BR-P series
- This cam clutch is expected to have a long life because the cam does not come into contact with the inner and outer race during high-speed rotation.
- This type is for high speed idling and is attached to the motor shaft.
- The BR-P is a packaged version of the BR, and can be installed and used as is.
- トルク範囲：306～62034N・m
Features
- - For high speed rotation, low speed engagement and reverse prevention.
- - The BR type is a type that is attached directly to the motor shaft.
- - The BR-P type has a built-in bearing, so it can be used as is.
Structure

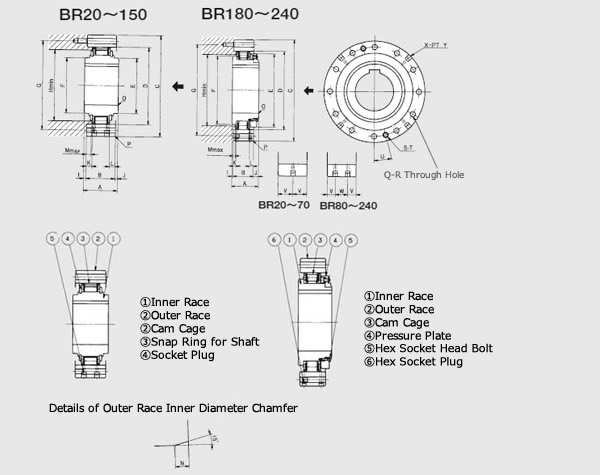

・BR (open type)
・BR-P (package type)
Model number display example
| BR | 20 | - | LH |
| ｜ Series Name |
｜ Shaft hole diameter: mm |
｜ Engagement direction as seen from the arrow in the structural diagram RH: Right engagement LH: Left mesh |
|
| BR | 20 | P |
| ｜ Series Name |
｜ Shaft hole diameter: mm |
｜ Package Type |
Catalogs and Instruction Manuals
Product model number list
*Click on the model number to display detailed information. Open all Close all
|
|
