Power-Lock SL Series
- This is an external tightening type that tightens from the outside of the boss.
- - Ideal for fastening hollow shafts such as reducers.
- -It can also be used when the boss thickness cannot be secured due to the design.
- * The boss does not move during assembly.
- *When using with a hollow shaft, the inner diameter of the hollow shaft must be considered when selecting. Please contact us for details.
Standard Specifications
- - Special surface treatment has been applied, so there is no need to apply oil during assembly.
- - The thicker the shaft diameter, the greater the torque that can be transmitted.
- - Simple structure makes it easy to install and remove.
- Applicable shaft diameter: Φ24 to Φ300
- トルク範囲：167～290000N・m
- Applicable tolerance: outer hub diameter: h7 hub bore: H7 (Applicable shaft tolerance: h6)
- Applicable surface roughness: Ra1.6

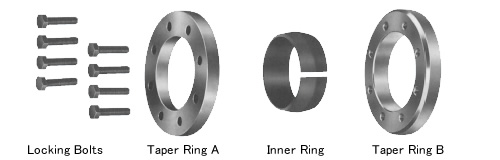

Structure
Double Taper
・ Power-Lock SL series has tapered inner diameters for tapered rings A and B and outer diameter for the inner ring.
By tightening the fastening bolts, tapered rings A and B move while sliding along the tapered surfaces.
Catalogs and Instruction Manuals
Model number display example
| PL | 024 | X | 050 | SL |
| ｜ Shaft diameter |
｜ Outer diameter |
｜ Series Name |
Product List
*Click to display detailed information.
| Standard Specifications |
|---|
| PL024X050SL |
| PL030X060SL |
| PL036X072SL |
| PL044X080SL |
| PL050X090SL |
| PL055X100SL |
| PL062X110SL |
| PL068X115SL |
| PL075X138SL |
| PL080X145SL |
| PL090X155SL |
| PL100X170SL |
| PL110X185SL |
| Standard Specifications |
|---|
| PL125X215SL |
| PL140X230SL |
| PL155X265SL |
| PL165X290SL |
| PL175X300SL |
| PL185X330SL |
| PL195X350SL |
| PL200X350SL |
| PL220X370SL |
| PL240X405SL |
| PL260X430SL |
| PL280X460SL |
| PL300X485SL |
