Plastic modular chain WT1515F-W/WT1516F-W/WT1515T-FW/WT1516T-FW types
- チェーンピッチ
15mm - For straight running
- Closed type
- Open type
- Flight Type
- The WT1510 series of Plastic modular chain ideal for replacing flat belts, now includes a flight type
- Inclined transport of boxes, cases, loose items, etc. is possible.
Features
-
・Flight height can be selected according to the purpose of use
Flight heights of 10mm and 50mm are available, allowing you to select the flight height that best suits your transport conditions.
Note) Flight heights other than 10mm and 50mm are available as special orders.

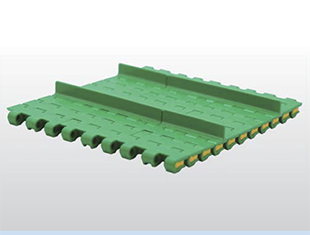

Flight height 10mm
Flight height 50mm
-
・Available in 0mm and 25mm indents
Used to support the chain with rollers on return-way.
Depending on the transport conditions, an indent of 0 mm can also be used.
Note
1. The indent width of 25mm indicates a double indent.

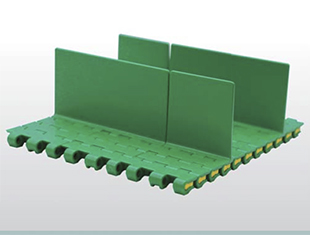

Indents other than 2.25mm are available as special orders.Indentation 0mm
Indentation 25mm
-

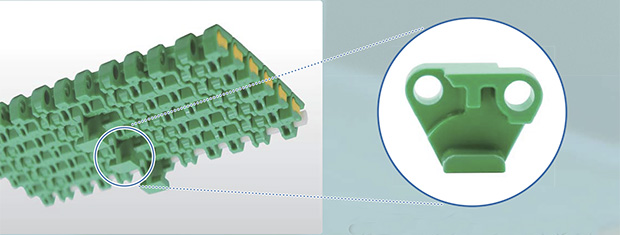

-float-preventive tabs prevents the chain from floating up
The WT1515T-FW and WT1516T-FW models use float-preventive tabs to prevent the chain from floating up.
float-preventive tabs
-
- The use of slit pins makes cut and connect work smooth.
Chains with widths of 50mm and 100mm use a "slit pin" which combines the plug and pin.
Chains can be easily cut and connect, reducing the amount of work required for chain installation and maintenance.
It also supports the conventional main body pin + plug system.
Note
1. High temperature (HTW) and ultraviolet ray (UVR) specifications are not compatible with the slit pin method.
2. Chain widths of 150mm or more will be secured with a pin and plug.Slit pin method

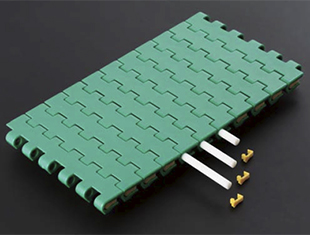

Main body pin + plug fastening method
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | △ | △ | △ | △ | △ | △ | △ |
| Medium | △ | △ | △ | ○ | △ | ○ | ○ | △* | △ |
| Small | ○ | ● | △ | ● | ○ | ● | ● | △* | △ |

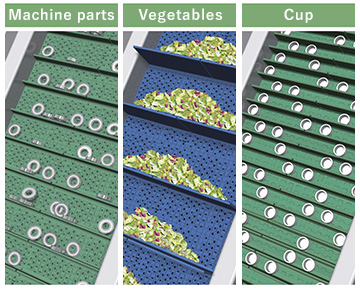

Purpose
- ■Transportation of machine parts
- ■ Vegetable transportation
- ■Conveying beverage container caps
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 15 | |||
|---|---|---|---|---|
| Purpose | For straight running | |||
| Chain Type | Closed type | Open type | ||
| Flight Type | ||||
| Main body chain specifications | - | |||
| Pin Type | - | |||
| Pin Material | - | |||
| Pin Shape | - | |||
| Top plate thickness mm | - | |||
| Pusher Material | - | |||
| Other features | - | Includes float-preventive tabs | - | Includes float-preventive tabs |
| Model | WT1515F-W | WT1515T-F-W | WT1516F-W | WT1516T-F-W |
|
 |
 |
 |
|
| Chain width mm | 50～2300 | 100～2300 | 50～2300 | 100～2300 |
| Organizational Unit | Every 50mm | |||
Catalogs and Instruction Manuals
Flight dimensions
To install the flights, determine the following dimensions:
- Flight installation spacing P (Installation possible from 15mm)
- Flight height F (choose from 10mm or 50mm)
- - Indent N (necessary for supporting the chain with rollers on return-way. 25 mm)
- *With an indent of 0mm, the chain cannot be supported by rollers on return-way.
