Cable Carrier (CABLEVEYOR) Accessories Gliding arrangement Rails
- Guide channel for Gliding arrangement specification of the plastic series
- -The rail body is made of aluminum, making it lightweight and easy to handle.
- - The connecting parts have an original structure that prevents misalignment at the joints, allowing for quick and precise installation.
- -Rail fixing parts sets are also available.
Structure, construction and installation
Structure
The parts consist of two types of rails, the H2M rail (front) and the U2M rail (rear), which can be used on their own, but two fixing bases (SB set and JB set) are also available for quick, easy, and highly accurate installation on the mounting surface.
The rail clamper (RCL06) can easily align rail joints at connecting sections, and can be used with just the rail and rail clamper.
Notes: 1. The rails are made of aluminum and are anodized and painted silver.
2. Fix the rails every 1m.

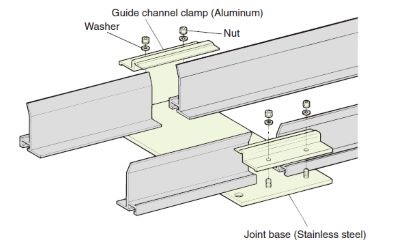

■JB set

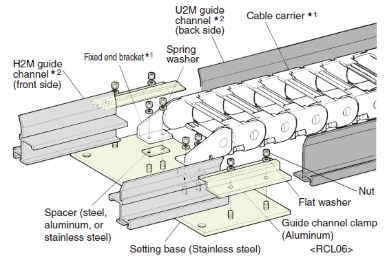

■SB Set
Notes: 1. Cable Carrier (CABLEVEYOR) and Fixed end bracket are sold separately.
2. The JB and SB sets do not include rails.
3. The setting base is designed to allow Cable Carrier (CABLEVEYOR) 's Fixed end bracket to be attached, and other dimensions are the same as the joint base.
4. If the travel speed is high, the rails may be prone to wear, so please contact us.
5. In an environment where dust and dirt accumulate, rails may wear out prematurely.
6. Do not install or use outdoors.
7. When using in an environment with large temperature differences, the rails will expand and contract, so please leave some slack in the rail joints.
Please refer to guide channel construction and installation manual here.
Product List
*Click to display detailed information.
| Applicable Cable Carrier (CABLEVEYOR) | Rail model number | Fixing base model number | ||
|---|---|---|---|---|
| H-rail (H2M) | U-Rail (U2M) | JB Set | SB Set | |
| TKP45H25-30W38 | TKP45H25-H2M | TKP45H25-U2M | TKP45H25W38-JB | TKP45H25W38-SB |
| TKP45H25-30W58 | TKP45H25W58-JB | TKP45H25W58-SB | ||
| TKP45H25-30W78 | TKP45H25W78-JB | TKP45H25W78-SB | ||
| TKP45H25-30W103 | TKP45H25W103-JB | TKP45H25W103-SB | ||
| TKP58H39-30W50 | TKP58H39-H2M | TKP58H39-U2M | TKP58H39W50-JB | TKP58H39W50-SB |
| TKP58H39-30W75 | TKP58H39W75-JB | TKP58H39W75-SB | ||
| TKP58H39-30W100 | TKP58H39W100-JB | TKP58H39W100-SB | ||
| TKP58H39-30W125 | TKP58H39W125-JB | TKP58H39W125-SB | ||
| TKP58H39-30W50 with sliding shoe | TKP58H39-H2M | TKP58H39-U2M | TKP58H39W50GS-JB | TKP58H39W50GS-SB |
| TKP58H39-30W75 with sliding shoe | TKP58H39W75GS-JB | TKP58H39W75GS-SB | ||
| TKP58H39-30W100 with sliding shoe | TKP58H39W100GS-JB | TKP58H39W100GS-SB | ||
| TKP58H39-30W125 with sliding shoe | TKP58H39W125GS-JB | TKP58H39W125GS-SB | ||
| TKP62H34W150 | TKP62H34-H2M | TKP62H34-U2M | TKP62H34W150-JB | TKP62H34W150-SB |
| TKP62H34W200 | TKP62H34W200-JB | TKP62H34W200-SB | ||
| TKC34H25W50 | TKC34H25-H2M | TKC34H25-U2M | TKC34H25W50-JB | TKC34H25W50-SB |
| TKC34H25W90 | TKC34H25W90-JB | TKC34H25W90-SB | ||
| TKC34H25W130 | TKC34H25W130-JB | TKC34H25W130-SB | ||
| TKC47H36W80 | TKC47H36-H2M | TKC47H36-U2M | TKC47H36W80-JB | TKC47H36W80-SB |
| TKC47H36W160 | TKC47H36W160-JB | TKC47H36W160-SB | ||
