ML Series
- Suitable for medium loads, easy to install, and enables compact design.
- Cam and roller structure allows for easy installation of various transmission parts.
- Suitable for medium to low speed and medium load applications.
- トルク範囲：70～2300N・m
Features
- - The cam and roller structure allows the rollers to act as bearings, making a compact design possible.
- - Grease is sealed inside.
- - No lubrication maintenance is required.
- - We also offer the 2GD type with a dust seal. It has excellent dust resistance and can be used in dusty places.
- - A retaining ring for the shaft is included when shipped.
- -Suitable for medium to low speed and medium load applications.
Structure

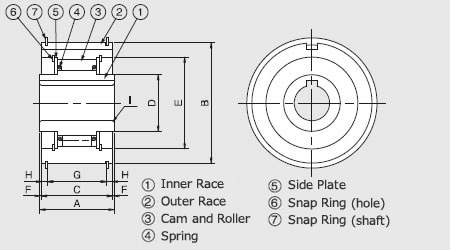

・ML type structure

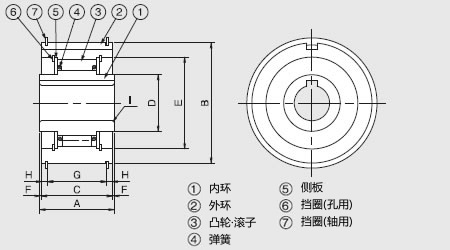

・ML-2GD type (with dust seal) structure
Model number display example
| ML | 20 | - | 2GD |
| ｜ Series Name |
｜ ｜ Shaft hole diameter: mm |
｜ ｜ Dust seal included* |
|
*Items without the 2GD notation are ML standard type (without dust seal).
