Bearing Bush Chain NBSS (stainless steel) Series

製品写真
  • This is an intermittent conveyor chain that uses special needles and has zero wear and elongation.
  • This makes it possible to use it in transport systems that were previously thought impossible, contributing to automation, labor savings, and higher speeds for improved productivity.
  • The NBSS (stainless steel) specification uses 18-8 stainless steel for all parts other than the needle, and the bearing section is sealed, allowing it to be used in environments where it is exposed to water droplets.

Features

  • - The wear elongation is an extremely small value of 0.06% after10 7 bending cycles.
  • - All parts other than the needle are made of stainless steel, and the bearing part is sealed, so it can be used in an environment where it is exposed to water droplets.
  • ・We have a wealth of experience in special shapes and can meet a variety of requests.
  • ・使用温度範囲：-10℃～60℃
  • - RF Double pitch pitch R roller sprockets can be used.

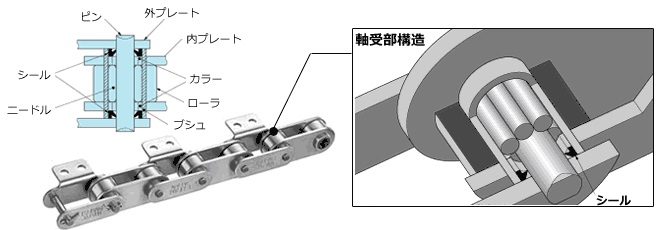

Structure

Structure
  • *The seal prevents grease from leaking out. The space between the pin and bushing is already greased.

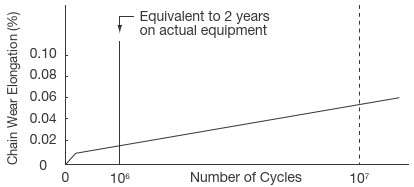

Wear elongation diagram

Wear elongation diagram

Operating conditions

  • Chain number: RF2040R-NBSS
  • ・チェーン張力：0.44kN{45kgf}
  • Chain speed: 70m/min (acceleration test)
  • - Number of sprocket teeth: 12T x 12T
  • ・Number of links: 44 links
  • ・Continuous operation

Precautions

  • - It is sealed when exposed to water, but it is not completely waterproof and cannot be used underwater.
  • Please note that the C and X dimensions and pin length of the A and K attachments are different from NB (Standard) Series Bearing Bush Chain.

Attachment type

When selecting sprocket specifications

It is necessary to select a sprocket specification that corresponds to the customer's operating environment and chain specifications.

For NBSS (stainless steel) Bearing Bush Chain, please use standard stainless steel Double pitch sprockets with R roller specifications.

Please see the chain and sprocket compatibility chart here.

Chain and sprocket compatibility table

Catalogs and Instruction Manuals

Product List

*Click to display detailed information.

*The table below includes related products. The model numbers of the products introduced on this page are colored.

Pitch
mm		 Bearing Bush Chain Roller diameter
mm		 Inner link
Inner width
mm
NB (Standard) Series NBH (High Precision) Series NBSS (stainless steel) specifications
25.40 RF2040R-NB RF2040R-NBH RF2040R-NBSS 15.88 7.95
31.75 RF2050R-NB RF2050R-NBH RF2050R-NBSS 19.05 9.53
38.10 RF2060R-NB RF2060R-NBH RF2060R-NBSS 22.23 12.70
50.80 RF2080R-NB RF2080R-NBH RF2080R-NBSS 28.58 15.88
