Sprockets for WT5700 Series Plastic modular chain
- Sprockets for WT5700 Series Plastic modular chain
-
Purpose
This product transmits the motor's power to the chain.
Please attach it to the conveyor drive shaft before use.
-

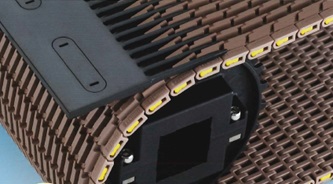

Usage image
[Click to enlarge]
[Click to enlarge]
List of sprockets for the WT5700 series Plastic modular chain
| type | Integrated type | ||
|---|---|---|---|
| Purpose | - | ||
| Model number | WT-S5707-9T | WT-S5707-12T | WT-S5707-14T |
| Applicable chain type | WT5707-K | ||
| Applicable chain pitch mm | 57.15 | ||
| Applicable sprocket type | - | ||
| Applicable guide flange | - | ||
| Applicable hub | - | ||
| shape |  |
||
| Body material | Ultra-high molecular weight polyethylene | ||
| Material Grade | - | ||
| Body exterior color | green | ||
| Knob exterior color | - | ||
| Bearing Material | - | ||
| Seal Ring Material | - | ||
| Structure | - | ||
| Countersunk head screws | - | ||
| Bolt and nut material | - | ||
| Number of teeth | 9 | 12 | 14 |
| effective number of teeth | - | ||
| Shaft hole shape | Upon request, we will consider production. We will respond to your request. |
||
| Shaft hole dimensions mm | Upon request, we will consider production. We will respond to your request. |
||
| pilot bore mm | Φ20 | ||
| Maximum shaft bore diameter mm | - | ||
| Width mm | - | ||
| Length mm | - | ||
| Chain side bending radius R mm | - | ||
Model number display example
| WT | - | S | 5707 | - | 12T |
| ｜ Model |
｜ ｜ ｜ ｜ |
｜ series 5707:WT5700 series |
｜ Number of teeth 12T: 12 |
||
| Sprocket shape S: Integrated type (machined type) |
|||||
