Power-Lock TF Series
- This series has the smallest inner and outer diameter ratio and is ideal for small hub diameter.
- - The smallest inner/outer diameter ratio in the series, so it can be used even when the boss diameter is small.
- - The number of tightening bolts is the smallest in the series, reducing assembly time.
- * Centering function included. No need for troublesome boss step processing.
- * The boss does not move during assembly.
Standard Specifications
- - It consists of four parts: inner ring, outer ring, spacer, and tightening bolt.
- - This series is highly compatible and is available from many manufacturers both domestically and internationally.
- Applicable shaft diameter: Φ6 to Φ90
- トルク範囲：11～8820N・m
- Applicable tolerance: Shaft: h8 Hub bore: H8
- Applicable surface roughness: Ra1.6
Electroless nickel plating specifications
- - The main body is electroless nickel plated, which does not peel off.
- - The tightening bolts have been given a special surface treatment that provides lubrication, so there is no need to apply oil during assembly.
- · Both dimensions and transmission torque are the same as the TF standard series. There is no torque reduction.
- · With a small inner and outer diameter ratio and a lineup starting from Φ10, it is ideal for small hub diameter, just like the standard series.
- Applicable shaft diameter: Φ10 to Φ90
- トルク範囲：44～8820N・m
- Applicable tolerance: Shaft: h8 Hub bore: H8
- Applicable surface roughness: Ra1.6
Structure
Single Taper

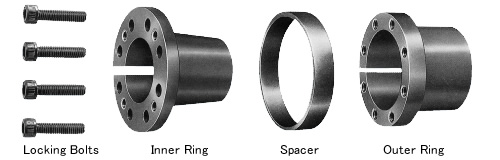

Power-Lock TF series consists of four parts: an inner ring, an outer ring, a spacer, and a tightening bolt.
It can be firmly fastened by simply tightening the fastening bolts.
Handling Instructions
Catalogs and Instruction Manuals
Model number display example
| PL | 010 | X | 018 | TF | - | KP |
| ｜ Shaft diameter |
｜ Outer diameter |
｜ Series Name |
｜ specification |
|||
| None: Standard specification KP: Electroless nickel plating |
