Plastic modular chain WT0705-W type
- チェーンピッチ
7.5mm - For straight running
- Closed type
- Standard series (specification) minimum chain pitch WT0700 series
- When combined with the nose bar, it achieves a dead space of 19mm.
- Ideal for stable transport of items that are prone to losing their shape and for transporting small items.
- Eliminate the labor required for troublesome conveyor design! Compatible with WinCS mini conveyor units that can be ordered simply by entering the model number.
Features
-
- Achieves a dead space of 19mm between conveyors, allowing use as a transfer unit between conveyors
By combining it with a nose bar with a minimum R of 3 mm, the dead space between conveyors can be reduced to 19 mm.
Depending on the transported items and conditions, no dead plate is required, making it ideal for transporting small items of around Φ30! It can also be used as a transfer unit between conveyors.
-
- The use of slit pins makes cut and connect work smooth.
Chain widths of 50mm and 100mm use a "slit pin" with an integrated plug.
Chains can be easily cut and connect, reducing the amount of work required for chain installation and maintenance.

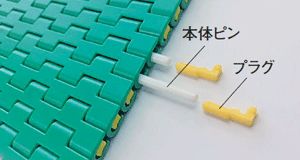

Chain width 50mm/100mm Chain width 150mm and up Slit pin specifications Main body + plug fastening method
*If the width exceeds 100mm, the main body pin + plug fastening method will be used.
-
・Low noise compared to the WT1510 series (chain pitch 15 mm)
Compared to the WT1510 series (chain pitch 15mm), noise has been reduced by an average of 6.5dB. Note: Based on in-house test results.
-
- Chain width suitable for replacing conveyor belts
It is compatible with conveyor belts of widths of 50mm and 100mm, making it ideal for replacing belt conveyors.
mold-to-width type: 50mm width, 100mm width
Wide type: Amplification in 50mm increments from 150mm
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | △ | △ | △ | △ | △ | △ | △ |
| Medium | ○ | ○ | △ | ○ | ○ | ○ | ○ | ○ | ○ |
| Small | ● | ● | △ | ● | ● | ● | ● | ● | ● |
Purpose
- ■ Stable transport of items that are prone to losing their shape
- ■Transporting small items that are prone to tipping over and preventing items from remaining behind by using dead plates
Example of in-line layout
Example of transfer unit
Detachable unit example
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 7.5 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| - | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | - |
| Model | WT0705-W |
|
|
| Chain width mm | 50～2000 |
| Organizational Unit | Every 50mm |
Catalogs and Instruction Manuals
Other WT0700 series
- チェーンピッチ
7.5mm - For straight running
- Closed type
- ・WT0700 series: the first Plastic modular chain with a chain width of 30mm
- - The first Plastic modular chain to use a chain width of 30mm, making it ideal for replacing narrow belts.
- - Ideal for stable transport of small items and items that are prone to losing their shape.
