Flow Conveyor Chain for Grains

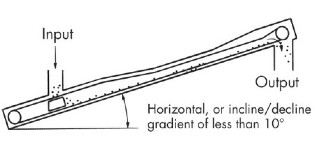

This chain is for horizontal flow conveyors (upward and downward gradients of 10° or less) specially designed for grain.
The scraper prevents the items being transported on the rails from being crushed, and the cleaner prevents any items from remaining inside the case.
The cleaners are installed at intervals of approximately 6m.
In addition, attachments are usually attached to Inner link every two links.
Note: The sweeper cannot be installed when operating in forward or reverse direction.

*Please also consider the "Screw Lock Link," a connecting link that makes connection and disconnection easy.

Catalogs and Instruction Manuals

- Flow conveyors transport powder and granular materials in a sealed case, so the materials do not scatter, making them bulk item bulk material conveyors for preventing pollution.
- The attachment material is standard carbon steel, but stainless steel can also be manufactured.
We will propose the most suitable specifications for the main body material depending on the properties of the transported items. Please contact us for details.
・The types of attachments are as shown in the diagram below. For more information, please check the product details page from the product list.

- The attachment material is standard carbon steel, but stainless steel can also be manufactured upon request.
・The standard chain body materials are DT Series and AT Series specifications, but other chain specifications can also be selected depending on the nature of the transported goods.

・Metric pitch

- Inch pitch
