Power Cylinder T Series

Product Photos
  • This is an electric cylinder in the medium thrust zone with a rated thrust of 2.45kN or more that can be used with AC (alternating current) power.
  • A brake motor that can hold a load powerfully, a gear reduction unit that achieves low noise, a highly efficient Ball screw developed for cylinders, a safety mechanism that protects the mating device,
    A wide range of options are available for use in a variety of applications. Outdoor use is possible as standard (motor protection class IP55).
  • Rated thrust: 2.45-39.2kN
  • Nominal speed: 9~120mm/s

Features

  • ・Two easy-to-choose types

    There are two types, each with a different safety mechanism: Type B has a built-in wet slip clutch.

    Type C is equipped with a thrust detection limit switch.

  • ・Wide variation

    We offer a wide range of standard models to suit your application, thrust, and speed. You can choose from thrusts of 2.45kN to 39.2kN and speeds of 9mm/s to 120mm/s.

  • ・Reliable operation

    All models use a highly efficient Ball screw, a quiet deceleration unit, and a highly reliable brake motor. Each series also has a highly reliable built-in safety device,
    It works effectively against overload.

  • ・Abundant options

    Two types of stroke adjustment limit switches are available: external and internal, and two types of stroke sensors are available: potentiometer and rotary encoder.
    Sequencer control is now easier.

How to use each type (protective device) and its structure

Two types are available, each with a different safety mechanism.

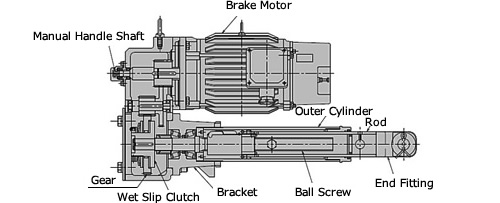

  • ・B type (Wet-type slip clutch)

    Wet-type slip clutch is built into the screw shaft end of the reduction section. A special lining is used to provide protection in the event of an overload.

    The special lining provides protection even during overstroke.

Type B

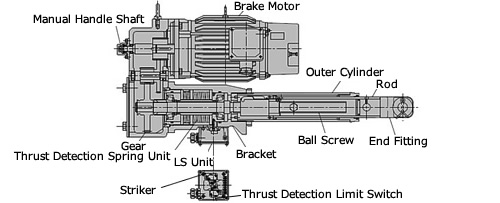

  • ・C type (Thrust detection limit switch)

    The bracket has a built-in thrust detection spring unit, which is effective when an electrical signal is required for push (pull) stop or overload.

    An electrical signal is also output if an overload occurs from the load side while the motor is stopped or if the stroke is exceeded.

    *In particular, when subjected to impact, the built-in spring will deflect and absorb the impact load.

C type

Standard model list

Model number Rated thrust
N
{kgf}		 Nominal speed
50/60Hz
mm/s		 Motor Capacity
kW		 Rod travel per revolution
of manual shaft
mm		 Rod rotation force
N・m
{kgf・m}		 Nominal stroke
mm
LPTB250
LPTC250		 S 2.45k
{250}		 12.5/15 0.1 2.0 2.65
{0.27}		 200, 300, 400,
500, 600
L 25/30 0.1 1.0
M 50/60 0.2 2.0
H 100/120 0.4 4.0
LPTB500
LPTC500		 S 4.90k
{500}		 12.5/15 0.1 2.0 2.29
{0.54}		 200, 300, 400,
500, 600, 800
L 25/30 0.2 1.0
M 50/60 0.4 2.0
H 100/120 0.75 3.9
LPTB1000
LPTC1000		 S 9.80k
{1000}		 12.5/15 0.2 2.0 14.7
{1.5}		 200, 300, 400,
500, 600, 800,
*1000
L 25/30 0.4 1.0
M 50/60 0.75 2.0
H 100/120 1.5 4.0
LPTB2000
LPTC2000		 S 19.6k
{2000}		 12.5/15 0.4 2.0 35.3
{3.6}		 200, 300, 400,
500, 600, 800,
*1000, *1200
L 25/30 0.75 1.0
M 50/60 1.5 2.0
H 75/90 2.2 3.0
LPTB4000
LPTC4000		 S 39.2k
{4000}		 9/11 0.75 1.4 83.3
{8.5}		 200, 300, 400,
500, 600, 800,
1000, 1200, *1500
L 25/30 1.5 1.0
M 35/42 2.2 1.4
H 60/72 3.7 2.4

*The speed indicates the value at the motor's synchronous rotation speed.

*The rated thrust is limited for strokes marked with an *.

Catalogs and Instruction Manuals

Motor Specifications

Model Fully sealed and air cooling type with brake
output See the list of standard models
Number of poles 4 poles
power supply Voltage 200V/200V/220V
frequency 50Hz/60Hz/60Hz
Time rating 30 minute rating
Heat resistance class B
protective structure Fully sealed outdoor model (IP55)

Click here to see motor options.

Model number display example

LPT B 1000 L 4
｜
Series Name
Power Cylinder
T Series		 ｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜		 ｜
Rated thrust
250: 2.45kN {250kgf}
500: 4.90kN{500kgf}
1000: 9.80kN {1000kgf}
2000: 19.6kN {2000kgf}
4000: 39.2kN {4000kgf}
32000: 313kN {32000kgf}		 ｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜		 ｜
Nominal stroke
2: 200mm
3: 300mm
4: 400mm
5: 500mm
6: 600mm
8: 800mm
10: 1000mm
12: 1200mm
15: 1500mm
20: 2000mm
type
B: Wet-type slip clutch type
C: Thrust detection limit switch type		 Nominal speed
S, L, M, H
Please refer to
the detailed information
for actual speeds.

■ Tsubaki model No. navigation

Selectable model number:

View product details

*To generate the correct model number, select items in order from left to right.

series type Rated thrust Nominal speed Stroke

LPT






















type

B: Wet-type slip clutch is built in as an overload protection device.

C: Equipped with Thrust detection limit switch.

Rated thrust

This is the rated thrust at which the motor can operate.

Nominal speed

This is the cylinder operating speed when the motor is rotating synchronously.

Please refer to the detailed information for the speed values of each model.

Nominal stroke

This is the stroke distance of the operating part. The manufacturing range varies depending on the thrust.

Motor Specifications

Z: Inverter drive compatible.

V: The power supply voltage and frequency are 400/400/440V, 50/60/60Hz.

V1: The power supply voltage and frequency are 380V and 50Hz.

V2: The power supply voltage and frequency are 380V, 60Hz.

V3: The power supply voltage and frequency are 415V, 50Hz.

V4: The power supply voltage and frequency are 460V, 60Hz.

T1: Heat resistance class F, resistant to 40°C.

T2: Heat resistance class F, 60°C.

T3: Heat resistance class F, 80°C.

T4: Heat resistance class H, 80°C resistant.

N: CE compliant.

N2: UL standard compliant specifications.

N3: CCC specification.

D: Pressure-resistant and explosion-proof.

A: It is an adapter without a motor.

Option symbol

L: Comes with two external stroke adjustment LSs.

L3: Comes with 3 external stroke adjustment LSs.

K2: Two built-in microswitches detect the stroke position.

K4: Equipped with four built-in microswitches that detect the stroke position.

P: Equipped with a potentiometer that detects the stroke position.

R: Equipped with a rotary encoder that outputs a stroke movement signal.

C: Equipped with clevis.
Cannot be installed simultaneously with position detection options K2, K4, P, and R.

I: Comes with I-shaped End fitting.
Models with a thrust of 58.8kN {6000kgf} or more
I-type End fitting are standard (no additional symbol required).

J: It comes with bellows.

F: The motor terminal box and stroke adjustment external LS are installed on the opposite side from the standard side.
This can be selected for models with a thrust of 39.2kN {4000kgf} or less.


*Various options are available.

Please check here for option model numbers.

Product model number list

*Click on the model number to display detailed information. Open all Close all

Thrust 2.45kN {250kgf} (Model number LPTB250~/LPTC250~)

Thrust 4.90kN {500kgf} (Model number LPTB500~/LPTC500~)

Thrust 9.80kN {1000kgf} (Model number LPTB1000~/LPTC1000~)

Thrust 19.6kN {2000kgf} (Model number LPTB2000~/LPTC2000~)

Thrust 39.2kN {4000kgf} (Model number LPTB4000~/LPTC4000~)

Thrust 58.8kN {6000kgf} (Model number LPTB6000~/LPTC6000~)

This model number has been redesigned.
speed stroke
mm		 Wet-type
slip clutch		 With Thrust detection limit switch
S  500LPTB6000S5 LPTC6000S5
1000LPTB6000S10 LPTC6000S10
1500LPTB6000S15 LPTC6000S15
L  500LPTB6000L5 LPTC6000L5
1000LPTB6000L10 LPTC6000L10
1500LPTB6000L15 LPTC6000L15
M  500LPTB6000M5 LPTC6000M5
1000LPTB6000M10 LPTC6000M10
1500LPTB6000M15 LPTC6000M15
H  500LPTB6000H5 LPTC6000H5
1000LPTB6000H10 LPTC6000H10
1500LPTB6000H15 LPTC6000H15
Back to top of this page

Thrust 78.4kN {8000kgf} (Model number LPTB8000~/LPTC8000~)

This model number has been redesigned.
speed stroke
mm		 Wet-type
slip clutch		 With Thrust detection limit switch
S  500LPTB8000S5 LPTC8000S5
1000LPTB8000S10 LPTC8000S10
1500LPTB8000S15 LPTC8000S15
L  500LPTB8000L5 LPTC8000L5
1000LPTB8000L10 LPTC8000L10
1500LPTB8000L15 LPTC8000L15
M  500LPTB8000M5 LPTC8000M5
1000LPTB8000M10 LPTC8000M10
1500LPTB8000M15 LPTC8000M15
H  500LPTB8000H5 LPTC8000H5
1000LPTB8000H10 LPTC8000H10
1500LPTB8000H15 LPTC8000H15
Back to top of this page

Thrust 117kN {12000kgf} (Model number LPTB12000~/LPTC12000~)

Thrust 156kN {16000kgf} (Model number LPTB16000~/LPTC16000~)

Thrust 313kN {32000kgf} (Model number LPTB32000~/LPTC32000~)

・LPT series models with a thrust of 6000 kgf or more have been transitioned to the LPU series from fiscal year 2019.

Please check here for details.

Simple calculation of hydraulic cylinder thrust

・The formula for converting hydraulic cylinder output into approximate Power Cylinder thrust is provided below.

Simple calculation of hydraulic cylinder thrust

Special support

・Special support is available to suit your usage conditions.

For special requests such as anti-rotation specifications, anti-sticking measures, and special bellows, click here
