Croise Motor CSMA/CSMR/HCMA/HCMR series
- A compact, lightweight, quietly operating right-angle shaft worm reducer with motor.
- Croise Motor uses a worm gear, has right-angle shaft and high reduction ratio, and achieves space saving in the equipment layout.
- The output shaft can be selected from hollow or solid types.
- Our lineup includes three-phase motor capacities from 0.1kW to 5.5kW, and reduction ratios from 1/10 to 1/300.
- MR series is compatible with High Efficiency motors. (IE3 Class : Premium Efficiency )
Features
-
・ Right-angle shaft・ High reduction ratio
The CSMA and CSMR series have a single-stage worm gear that achieves a reduction ratio of up to 1/60, while the HCMA and HCMR series have right-angle shaft type that achieves a maximum reduction ratio of up to 1/300 by combining a first-stage helical gear with a second-stage worm gear.
-
·compact
The CSMA and CSMR series have a simple structure that makes the motor more compact in the longitudinal direction, while the HCMA and HCMR series use a helical gear in the first stage, reducing the offset between the output shaft and input shaft of the worm gear and making it more compact in the vertical direction.
-
・Quiet operation
Because it is a worm gear, it operates very smoothly and quietly compared to other gear mechanisms.
In addition, the brake is a silent type, so there is no harsh metallic sound when suctioning.
-
- Excellent stopping position accuracy
Compared to other gear mechanisms, it has less backlash and can be expected to have excellent stopping position accuracy.
-
-High efficiency
In the reduction ratio range of 1/10 to 1/60, the CSMA and CSMR series achieved high efficiency in the low reduction ratio range (1/10 to 1/30), while the HCMA and HCMR series achieved high efficiency in high reduction ratio range (1/40 to 1/60).
-
・Shock resistant
Compared to other gear mechanisms, worm gears have greater tooth root strength and are more resistant to impact.
-
- Compliant with overseas high-efficiency regulations (MR series)
With growing awareness of energy conservation, countries around the world are introducing legislation that mandates the manufacture and sale of high-efficiency motors.
Tsubaki's MR series of compact gear motors comply with high-efficiency regulations in Japan and around the world. We deliver high-grade, quality products that meet the needs of the times.
[International Standards Compatibility Table]
Please contact us for detailed specifications. Motor Capacity 0.2kW 0.4kW 0.75kW 1.5kW 2.2kW 3.7kW 5.5kW No brakes With brake No brakes With brake No brakes With brake No brakes With brake No brakes With brake No brakes With brake No brakes With brake China High Efficiency Regulation
GB18613-2020√ √ √ √ √ √ √ √ √ √ √ √ √ √ European High Efficiency Regulation
IEC60034-30-1(2017)
*1√ √ √ √ √ √ √ √ √ √ √ √ √ √ Korean High Efficiency Regulation
KS C 4202Not applicable √ √ Please contact us √ √ √ √ US High Efficiency Regulations
MEMA MG1-12-12Not applicable √ √ Please contact us √ √ √ √ *1. For power loss data related to (EU)2019/1781, please click here.
Standard Model
・CSMA series
| Motor Capacity | Reduction ratio |
|---|---|
| 0.1kW | 1/10～1/60 |
| 0.2kW | 1/10～1/60 |
| 0.4kW | 1/10～1/60 |
| 0.55kW | 1/10～1/60 |
・CSMR series
| Motor Capacity | Reduction ratio |
|---|---|
| 0.75kW | 1/10～1/60 |
| 1.5kW | 1/10～1/60 |
| 2.2kW | 1/10～1/60 |
| 3.7kW | 1/10～1/60 |
| 5.5kW | 1/10～1/30 |
・HCMA series
| Motor Capacity | Reduction ratio |
|---|---|
| 0.1kW | 1/40～1/300 |
| 0.2kW | 1/40～1/300 |
| 0.4kW | 1/40～1/300 |
| 0.55kW | 1/40～1/300 |
・HCMR series
| Motor Capacity | Reduction ratio |
|---|---|
| 0.75kW | 1/40～1/300 |
| 1.5kW | 1/40～1/300 |
| 2.2kW | 1/40～1/300 |
| 3.7kW | 1/40～1/300 |
| 5.5kW | 1/40～1/100 |
Structure

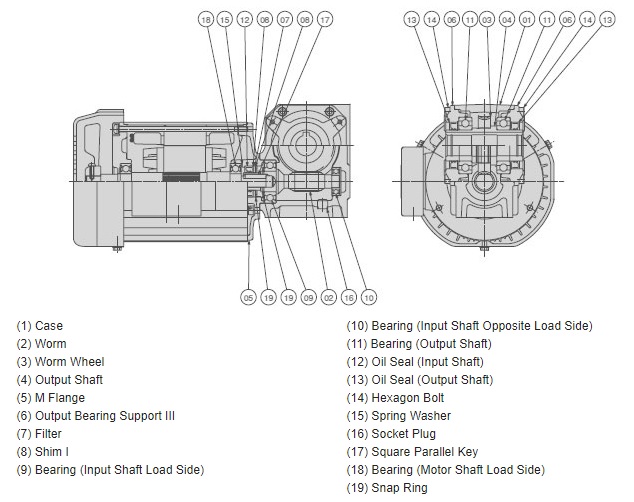

(For single reduction CSMA/CSMR hollow shaft)

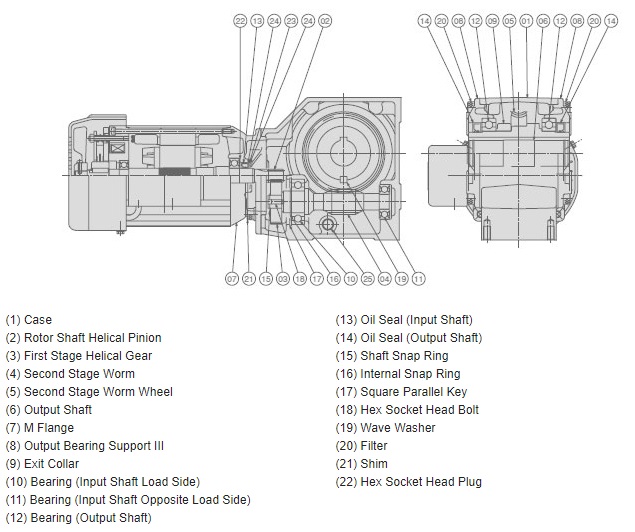

(For Double Reduction HCMA/HCMR hollow shaft)
Catalogs and Instruction Manuals
Model number display example
| CSMA | 010 | - | 13 | 0 | L | 20 | T | B |
| HCMR | 151 | - | 32 | 1 | H | 40 | ｜ ｜ |
｜ ｜ |
| ｜ ｜ ｜ ｜ ｜ |
│ Motor Capacity |
│ Frame number |
│ Installation symbol |
│ Mounting Type |
│ Reduction ratio |
｜ ｜ ｜ ｜ ｜ |
│ Specification Code |
|
| 010：0.1kW 151：1.5kW |
(Explanatory diagram) | L: Foot mount type U: Face mount type H: Hollow shaft type |
20：1/20 | B: With brake | ||||
| Series Name CSMA, CSMR: single reduction with motor HCMA, HCMR: double reduction with motor |
Shaft arrangement L: The output shaft is on the left side when viewed from the motor side. T: Output shaft on both sides R: The output shaft is on the right side when viewed from the motor side. No symbol: Hollow shaft type |
|||||||
A wide range of options are available. Please check here for the types and model numbers of options.
■ Tsubaki model No. navigation
series
CSMA, CSMR: Worm gear single reduction type.
HCMA, HCMR: Double Reduction type with helical gear and worm gear.
Motor Capacity
Indicates the motor capacity.
Frame No.
Indicates the size of the reducer.
It is automatically determined from the motor capacity and reduction ratio.
Installation symbol
Specify the installation direction.
(Here, frame numbers 28 and below are fixed to installation No. 0, and frame numbers 32 and above are fixed to installation No. 1.
For other symbols, please contact us.)
Mounting Type
H: The output shaft is hollow.
U: The output shaft is a solid type and is face mounted.
L: The output shaft is solid and is Foot mount mounted.
Reduction ratio
Indicates the reduction ratio.
The range division corresponds to the frame number.
Shaft arrangement
L: When viewed from the motor side, this type has a solid output shaft on the left side.
R: When viewed from the motor side, this type has a solid output shaft on the right side.
T: A type with a solid output shaft on both sides.
No symbol: If the mounting format is a hollow shaft type (H), the shaft arrangement symbol is not required.
Specification Code
No symbol: If there is no brake, no specification symbol is required.
B: Add when brake is installed.
BE: A rotary encoder is installed at the rear of the motor. A brake is included.
SR: Install an electrical overload protection device called a "Shock Relay."
Option symbol A
LG: Equipped with a mechanical overload protection device. Mounting surface is on the left side.
RG: Equipped with a mechanical overload protection device. Mounting surface is on the right side.
Z: This motor is compatible with inverter drive.
W: Suitable for outdoor installation.
J: Suitable for installation in locations subject to water.
V: The power supply voltage and frequency are 400/400/440V, 50/60/60Hz.
V1: The power supply voltage and frequency are 380V and 50Hz.
V2: The power supply voltage and frequency are 380V, 60Hz.
V3: The power supply voltage and frequency are 415V, 50Hz.
V4: The power supply voltage and frequency are 460V, 60Hz.
N: CE compliant.
N2: UL standard compliant specifications.
*N3: CCC specification.
H: Comes with an aluminum terminal box.
Q: Manual brake release available
M: Rotation can be controlled manually from the motor fan side.
Option symbol B (formerly: supplementary symbol)
・Terminal box position
Move the terminal box to a position where it has been rotated counterclockwise as viewed from the motor side.
P1: 90° offset P2: 180° offset P3: 270° offset
・Terminal box exit direction
Move the outlet to a position rotated clockwise as viewed from the terminal box.
・CSMA, HCMA motor capacity 0.75kW or less
D1: 90° offset D2: 180° offset D3: 270° offset
・CSMA, HCMA motor capacity 1.5kW or more
E1: 90° offset E2: 180° offset E3: 270° offset
・For CSMR and HCMR
F1: 90° offset F2: 180° offset F3: 270° offset
・Paint color
C0: Light gray C1: Light silver metallic
C2: Ivory White C3: Dark Silver Metallic
Product List
*Click on the model number to display detailed information. Open all Close all
Motor included, three-phase 0.1kW (Model numbers CSMA010~, HCMA010~)
Motor included, three-phase 0.2kW (model numbers CSMA020~, HCMA020~)
Motor included, three-phase 0.4kW (model numbers CSMA040~, HCMA040~)
Motor included, three-phase 0.55kW (model numbers CSMA055~, HCMA055~)
Motor included, three-phase 0.75kW (Model numbers CSMR075~, HCMR075~)
Motor included, three-phase 1.5kW (model numbers CSMR151~, HCMR151~)
Motor included, three-phase 2.2kW (Model numbers CSMR221~, HCMR221~)
Motor included, three-phase 3.7kW (Model numbers CSMR370~, HCMR370~)
Motor included, three-phase 5.5kW (model numbers CSMR550~, HCMR550~)
option

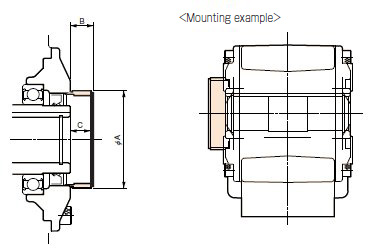

Shaft end cover
For hollow shaft Croise Motor, a cover is available for installation on the end of the hollow shaft opposite the mounting surface. (Material: SS400)
・Dimensions (unit: mm), PDF drawing, standard price and delivery list
| Model number | Frame No. | ΦA | B | C | PDF Drawings | Standard price | Delivery |
|---|---|---|---|---|---|---|---|
| CSM13CAP | 13 | 49 | 20 | 18 | Please contact us | Please contact us | |
| CSM16CAP | 16 | 61 | 20 | 18 | Please contact us | Please contact us | |
| CSM22CAP | 22 | 74 | 20 | 18 | Please contact us | Please contact us | |
| CSM28CAP | 28 | 84 | 20 | 18 | Please contact us | Please contact us | |
| CSM32CAP | 32 | 97 | 26 | 23 | Please contact us | Please contact us | |
| CSM40CAP | 40 | 110 | 26 | 23 | Please contact us | Please contact us | |
| CSM50CAP | 50 | 140 | 31 | 28 | Please contact us | Please contact us |

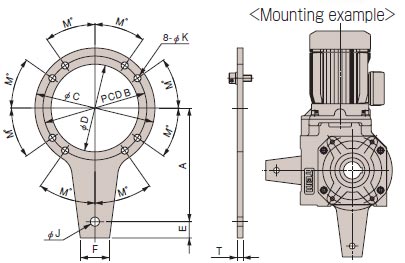

Torque arm
- A torque arm is available for hollow shaft mounting (material: SS400).
・Dimensions (unit: mm), PDF drawing, standard price and delivery list
| Model number | reducer Frame number |
A | B PCD |
ΦC | ΦD | E | F | ΦJ | ΦK | M degree | T | bolt size |
Tightening torque | mass kg |
PDF Drawings | Standard price | Delivery | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N・m | {kgf・m} | |||||||||||||||||
| CSM13TA | 13 | 90 | 80 | 92 | 68 | 10 | 20 | 9 | 5.5 | 35゜ | 6 | M5×16 | 6.3 | 0.64 | 0.3 | Please contact us | Please contact us | |
| CSM16TA | 16 | 105 | 96 | 111 | 81 | 15 | 27 | 11 | 6.6 | 35゜ | 6 | M6×18 | 11 | 1.1 | 0.4 | Please contact us | Please contact us | |
| CSM22TA | 22 | 140 | 128 | 148 | 108 | 20 | 35 | 11 | 9 | 35゜ | 6 | M8×20 | 26 | 2.6 | 0.7 | Please contact us | Please contact us | |
| CSM28TA | 28 | 175 | 160 | 185 | 135 | 25 | 45 | 14 | 11 | 35゜ | 9 | M10×25 | 51 | 5.2 | 1.6 | Please contact us | Please contact us | |
| CSM32TA | 32 | 200 | 160 | 190 | 130 | 25 | 45 | 16 | 14 | 30゜ | 9 | M12×30 | 118 | 12 | 1.9 | Please contact us | Please contact us | |
| CSM40TA | 40 | 250 | 200 | 230 | 170 | 30 | 50 | 18 | 14 | 30゜ | 9 | M12×30 | 118 | 12 | 2.6 | Please contact us | Please contact us | |
| CSM50TA | 50 | 320 | 250 | 286 | 214 | 30 | 50 | 20 | 17 | 30゜ | 12 | M14×40 | 186 | 19 | 4.1 | Please contact us | Please contact us | |

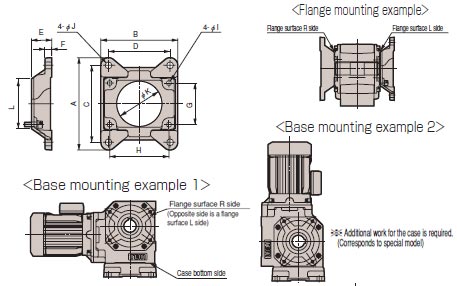

base
- For face mount and hollow shaft types, bases are available for base mounting and flange mounting.
・Dimensions (unit: mm), PDF drawing, standard price and delivery list
| Model number | reducer Frame number |
A | B | C | D | E | F | G | H | ΦI | ΦJ | ΦK | L | bolt size |
Tightening torque | mass kg |
PDF Drawings | Standard price | Delivery | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N・m | {kgf・m} | |||||||||||||||||||
| CSM13BA | 13 | 104 | 88 | 86 | 70 | 30 | 9 | 45.8 | 65.5 | 5.5 | 6.6 | 50 | 55 | M5×16 | 6.3 | {0.64} | 0.2 | Please contact us | Please contact us | |
| CSM16BA | 16 | 127 | 106 | 105 | 84 | 36 | 11 | 55 | 78.6 | 6.6 | 9 | 60 | 66 | M6×20 | 11 | {1.1} | 0.3 | Please contact us | Please contact us | |
| CSM22BA | 22 | 166 | 136 | 140 | 110 | 41 | 14 | 73.4 | 104.8 | 9 | 11 | 80 | 88 | M8×25 | 26 | {2.6} | 0.5 | Please contact us | Please contact us | |
| CSM28BA | 28 | 204 | 170 | 170 | 136 | 45 | 15 | 91.8 | 131 | 11 | 15 | 100 | 110 | M10×30 | 51 | {5.2} | 0.9 | Please contact us | Please contact us | |
| CSM32BA | 32 | 196 | 196 | 160 | 160 | 38 | 16 | 80 | 138.6 | 14 | 15 | 98 | 114 | M12×30 | 118 | {12} | 1.9 | Please contact us | Please contact us | |
| CSM40BA | 40 | 230 | 230 | 190 | 190 | 47 | 18 | 100 | 173 | 14 | 17 | 110 | 124 | M12×30 | 118 | {12} | 3.5 | Please contact us | Please contact us | |
| CSM50BA | 50 | 286 | 286 | 238 | 238 | 55 | 22 | 125 | 216.5 | 17 | 19 | 140 | 154 | M14×40 | 186 | {19} | 7 | Please contact us | Please contact us | |
