Plastic modular chain WT2515F-W type
- チェーンピッチ
25.4mm - For straight running
- Closed type
- Flight Type
- Flight type now available in the WT2510 series of Plastic modular chain
- Inclined transport of boxes, cases, loose items, etc. is possible.
Features
-
・Flight specifications suitable for inclined transport
Boxes, cases, loose items, etc. can be transported using an inclined layout.
-
・Food Sanitation Act compliant
Low Friction / Anti-Wear (CB) and high temperature (HTW) specifications comply with the Food Sanitation Act (Ministry of Health and Welfare Notification No. 370).
-
・Easy maintenance
The pin fastening system uses a main body pin + plug system, which makes maintenance such as connecting and disassembling the chain easy.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | △ | △ | △ | △ | △ | △ | △ |
| Medium | △ | ○ | △ | ● | ○ | ○ | ● | △ | △ |
| Small | ○ | ● | △ | ● | ● | ● | ● | △ | △ |
Purpose
- ■ Inclined transport of boxes, cases, loose items, etc.

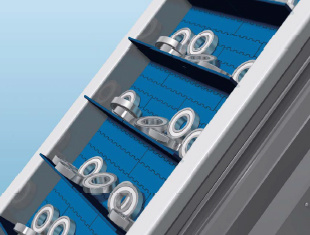

Conveying parts such as bearings
Transporting fish and shellfish
Conveying vegetables, etc.
Conveying sweets
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 25.4 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| Flight Type | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | - |
| Model | WT2515F-W |
|
|
| Chain width mm | 170～3230 |
| Organizational Unit | Every 85mm |
Catalogs and Instruction Manuals

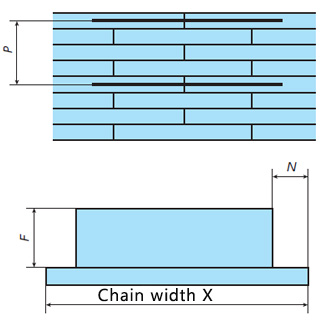

Flight dimensions
To install the flights, determine the following dimensions:
- Flight installation spacing P: Can be installed from 50.8mm
Please contact us if you would like to install each link. - Flight height F:
Choose from 50.8mm or 76.2mm - ・Indent N:
Necessary to support the chain with rollers on return-way
17mm, 34mm, 51mm - *With an indent of 0mm, the chain cannot be supported by rollers on return-way.
- *Note) Flight specifications will be quoted on a case-by-case basis.
