Plastic modular chain WT3109-W type
- チェーンピッチ
31.75mm - For straight running
- Closed type
- WT3100 series ideal for human conveyors
- Compatible with low-floor human conveyors (conveyor height 250mm or less)
Features
-
- Low-profile type (minimum conveyor height 220mm) conveyor compatible
Recommended conditions: Chain width 1200mm or less, conveyor length 30m or less, load 100kg/m or less.
Ideal for light-duty human conveyors that transport only workers and tool carts.

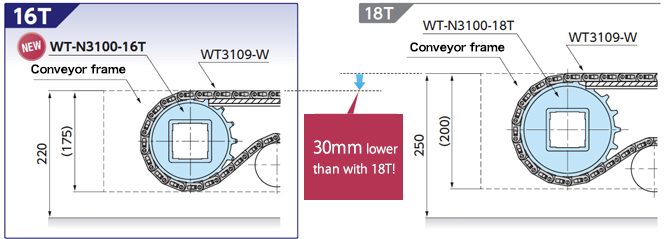

WT3109-W type low-floor conveyor cross section (reference example)
Note: To achieve a low-floor conveyor (minimum conveyor height 220 mm), it is necessary to consider not only the chain but also the frame strength, etc. Therefore, we recommend using the product under the above conditions.
-
- The special unevenness on the top surface of the chain provides an anti-slip effect.
The shape of the chain makes it less likely to slip or get caught when working on the top surface.
-

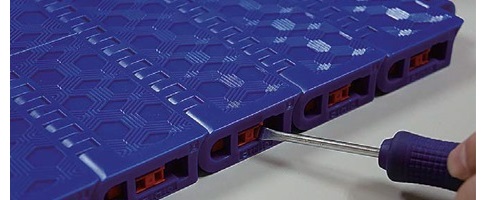

- Uses a sliding plug to prevent pins from coming out
Chain cut and connect splicing is easy, allowing for partial chain replacement and reduced maintenance time.
Note: When considering using this chain and applicable sprockets, please confirm the usage conditions (application, transported material, conveyor length, atmosphere, speed, temperature, etc.) and contact us.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | ○ | ● | ● | △ | △ | △ | △ |
| Medium | △ | △ | ○ | ● | ● | △ | △ | △ | △ |
| Small | △ | △ | ○ | ○ | ○ | △ | △ | △ | △ |
Purpose
- ■ Personnel transport (man conveyor)
- ■ Cart transport
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 31.75 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| - | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | - |
| Model | WT3109-W |
|
|
| Chain width mm | 300～ |
| Organizational Unit | Every 100mm |
