Plastic modular chain WT6306-W type
- チェーンピッチ
63.5mm - For straight running
- Open type
- Strong type
- A chain for heavy loads and long conveyor length with the highest allowable tension in the history of Plastic modular chain
- Ideal for use on heavy load, conveyor length conveyors in vehicle assembly and inspection processes.
Features
-
- The highest allowable tension in the history of Tsubaki Plastic modular chain
Its excellent load-bearing elongation performance (rigidity) also makes it effective in suppressing pulsation.
Because it is an all-plastic chain, it is approximately 25% lighter than other companies' products (stainless steel pin specifications).
Comparison of allowable tension with conventional products
-
・Can be used to transport heavy objects
Suitable for transporting automobiles, etc.
-
・Compatible with conveyor length conveyors over 100m conveyor length
Long conveyor length conveyor length 100m can be transported under the following conditions.

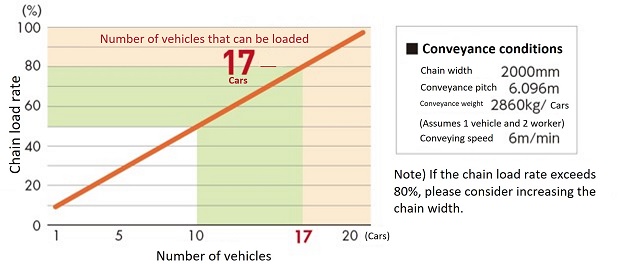

Loading capacity -allowable tension table
-
- The special unevenness on the top surface of the chain provides an anti-slip effect.
The shape of the chain makes it less likely to slip or get caught when working on the top surface.
-

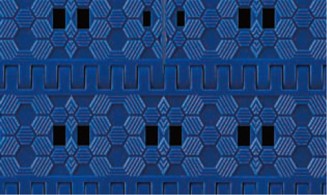

- Drainage holes on the top of the plate prevent water from pooling
It can be used in environments where water splashes, such as shower testers.
-

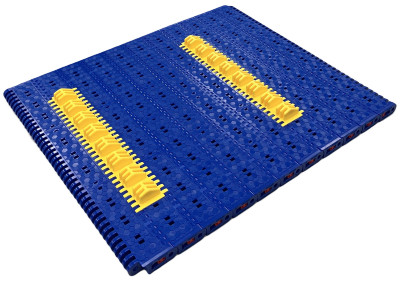

・We also offer wheel chock links to support vehicle positioning.
When combined with the main module, it provides positioning support for the vehicle.
To enhance visibility, a highly noticeable yellow color has been adopted for the exterior.
Furthermore, the wheel chocks are available in two heights, 12.5mm and 25mm, allowing you to choose the one that best suits your needs.
The position and spacing of the wheel chock links will need to be discussed on a case-by-case basis.
Wheel chock height 12.5mm
The gentle semicircular shape makes it easy for the car to climb up smoothly.

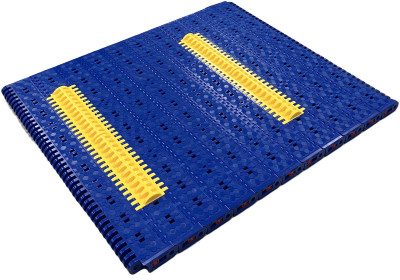

Wheel chock height 25mm
To give a clearer sense of the car passing over the wheel chock, we have also added a 25mm high type to our lineup.
In addition, the wheel chock shape is designed to be trapezoidal to ensure a smooth ride.
Note: When considering using this chain and applicable sprockets, please confirm the usage conditions (application, transported material, conveyor length, atmosphere, speed, temperature, etc.) and contact us.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | ○ | ● | ● | △ | △ | △ | △ |
| Medium | △ | △ | ○ | ● | ● | △ | △ | △ | △ |
| Small | △ | △ | ○ | ○ | ○ | △ | △ | △ | △ |
Purpose
- ■Vehicle + worker transport
- ■ Vehicle assembly process
- ■ Inspection process for completed vehicles (including shower tester)
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 63.5 |
|---|---|
| Purpose | For straight running |
| Chain Type | Open type |
| Strong type | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | - |
| Model | WT6306-W |
|
|
| Chain width mm | 400～ |
| Organizational Unit | Every 100mm |
