Bearing Bush Chain

製品写真
  • A conveyor chain for high-precision positioning.
  • A needle bearing is used between the pin and bushing to minimize wear and elongation.
  • Suitable for positioning, tactile operation, and other transport purposes.
  • Ambient temperature: -20℃ to 60℃

*Please also consider the "Screw Lock Link," a connecting link that makes connection and disconnection easy.

バナー画像

Catalogs and Instruction Manuals

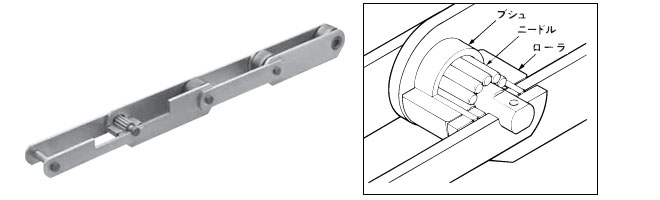

Structure

Structure

Product List

※Click to display detailed information

* Maximum allowable load is a value calculated based on our design standards and is the calculated strength. Unless otherwise specified, Maximum allowable load is used when selecting Large size conveyor chain.
This value varies depending on the manufacturer and is not a guaranteed value.

*Please contact us for average tensile strength.

Metric pitch

size Roller
Type		 Pitch Roller
Outer diameter		 Inner link
Inner width
75mm 100mm 150mm 200mm 250mm 300mm Φmm mm
RF03 R RF03075R-NB --- --- --- --- --- 31.8 16.1
RF05 R --- RF05100R-NB --- --- --- --- 40 22
RF10 R --- --- RF10150R-NB --- --- --- 50.8 30
RF12 R --- --- --- RF12200R-NB --- --- 65 37.1
RF17 R --- --- --- RF17200R-NB --- --- 80 51.4
RF26 R --- --- --- --- RF26250R-NB --- 100 57.2
RF36 R --- --- --- --- --- RF36300R-NB 125 66.7
*We may be able to produce pitches other than those listed above. Please contact us. Return to top of page
