Special Large size conveyor chain FBXA specifications

製品写真
  • By adding wear prevention measures between the bushing and roller to the FB specification, an even longer life is achieved.
  • *This chain is exclusively for bucket elevators.

*Please also consider the "Screw Lock Link," a connecting link that makes connection and disconnection easy.

バナー画像

Catalogs and Instruction Manuals

Structure and Features

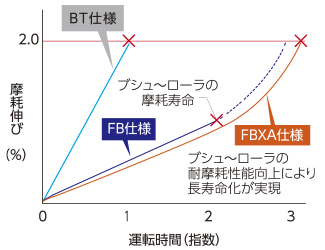

摩耗寿命比較
  • In addition to the FB specification structure, a special mechanism in the roller section improves the wear resistance between the pin, bushing and roller.
  • -Specialized for bucket elevators.
  • *Compared to our experimental results. Actual results may differ depending on usage conditions, etc.

・Video content

Product List

※Click to display detailed information

* Maximum allowable load is a value calculated based on our design standards and is the calculated strength. Unless otherwise specified, Maximum allowable load is used when selecting Large size conveyor chain.
This value varies depending on the manufacturer and is not a guaranteed value.

*Please contact us for average tensile strength.

Metric pitch

size Roller
Type		 Pitch Roller
Outer diameter		 Inner link
Inner width
100mm 125mm 150mm 200mm 250mm 300mm 450mm Φmm mm
RF10 M RF10100M-FBXA RF10125M-FBXA RF10150M-FBXA --- --- --- --- 38.1 24.8
RF12 S --- --- --- RF12200S-FBXA RF12250S-FBXA --- --- 34.9 34.8
M --- --- --- RF12200M-FBXA RF12250M-FBXA --- --- 38.1
RF17 S --- --- --- RF17200S-FBXA RF17250S-FBXA RF17300S-FBXA --- 40.1 49.2
M --- --- --- RF17200M-FBXA RF17250M-FBXA RF17300M-FBXA --- 44.5
RF26 S --- --- --- RF26200S-FBXA RF26250S-FBXA RF26300S-FBXA RF26450S-FBXA 44.5 51.7
M --- --- --- RF26200M-FBXA RF26250M-FBXA RF26300M-FBXA RF26450M-FBXA 50.8
*Pitches other than those listed above may be available. Please contact us for details.
Please contact us for inch sizes. Return to top of page
