Axle Bearing Roller

Product Photos
  • Axle Bearing Roller has cylindrical bearing built into the roller.
  • Ideal for wheels and guide rollers for moving, transferring and transporting heavy objects.
  • We offer a lineup of grease-resistant, grease-free, water-resistant, and heat-resistant specifications.

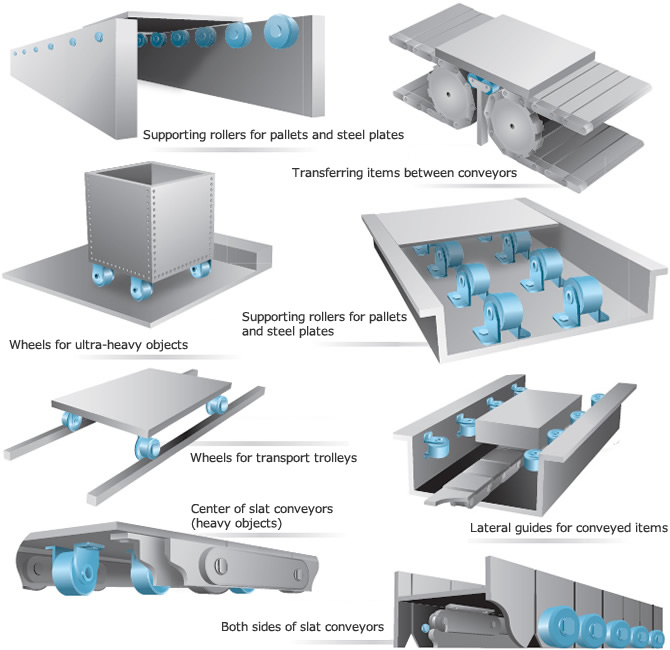

Purpose

Purpose

Wide variety

  • - Grease specification: Grease specification that can be used for a wide range of purposes
  • - Grease-free specification: Grease-free specification ideal for use in environments where lubrication is not possible and for reducing lubrication maintenance.
  • -Water-resistant: Can be used in wet environments without greasing
  • - Heat resistant: Heat resistant up to 150°C
  • ・Standard type: For all-purpose use
  • - Double flange roller type: Prevents meandering when used alone
  • - Tapered roller type: for use with channel rails
  • - Urethane lining type: For soundproofing and preventing scratches on floors
  • *We can also manufacture special shapes such as special dimensions, irregular external shapes, and multiple strand types according to your request.

List of Axle Bearing Roller

Grease specifications

  • Friction coefficient: 0.03
  • Operating temperature: -20~80℃
  • Lubrication: Grease packed

Grease-free

  • Friction coefficient: 0.03
  • Operating temperature: 0~50℃
  • Lubrication: No lubrication
    (However, anti-rust oil is applied at the time of delivery.)

Water-resistant

  • Friction coefficient: 0.03
  • Operating temperature: 0~50℃
  • Lubrication: No lubrication
    (However, anti-rust oil is applied at the time of delivery.)

Heat-resistant specifications

  • Friction coefficient: 0.03
  • Operating temperature: -20~150℃
  • Lubrication: Heat-resistant grease packed
    (with grease nipple)
JBR
R roller type		 Roller outer diameter: Φ31.8 to Φ125
Allowable load: 1.96 to 15.7 kN		 Roller outer diameter: Φ31.8 to Φ125
Allowable load: 1.96 to 15.7 kN		 Roller outer diameter: Φ31.8 to Φ125
Allowable load: 1.37 to 11.0 kN		 Roller outer diameter: Φ31.8 to Φ125
Allowable load: 1.96 to 15.7 kN
JBF
F roller type		 Roller outer diameter: Φ31.8 to Φ125
Allowable load: 1.27 to 9.81 kN		 Roller outer diameter: Φ31.8 to Φ125
Allowable load: 1.27 to 9.81 kN		 Roller outer diameter: Φ31.8 to Φ125
Allowable load: 1.27 to 9.81 kN		 Roller outer diameter: Φ31.8 to Φ125
Allowable load: 1.27 to 9.81 kN
JBFF
Double flanged roller		 Roller outer diameter: Φ31.8 to Φ80.0
Allowable load: 1.27 to 6.86 kN		 Roller outer diameter: Φ31.8 to Φ80.0
Allowable load: 1.27 to 6.86 kN		 Roller outer diameter: Φ31.8 to Φ80.0
Allowable load: 1.27 to 6.86 kN		 Roller outer diameter: Φ31.8 to Φ80.0
Allowable load: 1.27 to 6.86 kN
JBTF
5° tapered
F roller type		 Roller outer diameter: Φ31.8 to Φ80.0
Allowable load: 1.27 to 6.86 kN		 Roller outer diameter: Φ31.8 to Φ80.0
Allowable load: 1.27 to 6.86 kN		 Roller outer diameter: Φ31.8 to Φ80.0
Allowable load: 1.27 to 6.86 kN		 Roller outer diameter: Φ31.8 to Φ80.0
Allowable load: 1.27 to 6.86 kN
JBUR
Urethane Roller		 Roller outer diameter: Φ40.0 to Φ100
Allowable load: 0.29 to 2.94 kN
*Using temperature: 0 to 50℃		 Roller outer diameter: Φ40.0 to Φ100
Allowable load: 0.29 to 2.94 kN
*Using temperature: 0 to 50℃

Catalogs and Instruction Manuals

Model number display example

JBR03 N - 1
｜
size		 ｜
Specification Code
No symbol: Grease specification
N: Grease-free specification
W: Water-resistant
H: Heat-resistant		 ｜
Shaft type
1:1 type
2:2 type

Product List

※Click to display detailed informationOpen all Close all

Standard form

size&
Roller type		 Shaft type Supported specifications Allowable Load Water-resistant
Allowable Load
Grease specifications Grease-free
specification		 Water-resistant Heat-resistant specifications kN kN
JBR03 Type 1 JBR03-1 JBR03N-1 JBR03W-1 JBR03H-1 1.96 1.37
Type 2 JBR03-2 JBR03N-2 JBR03W-2 ---
JBR05 Type 1 JBR05-1 JBR05N-1 JBR05W-1 JBR05H-1 3.04 2.13
Type 2 JBR05-2 JBR05N-2 JBR05W-2 ---
JBR10 Type 1 JBR10-1 JBR10N-1 JBR10W-1 JBR10H-1 5.49 3.84
Type 2 JBR10-2 JBR10N-2 JBR10W-2 JBR10H-2
JBR12 Type 1 JBR12-1 JBR12N-1 JBR12W-1 JBR12H-1 8.34 5.84
Type 2 JBR12-2 JBR12N-2 JBR12W-2 JBR12H-2
JBR17 Type 1 JBR17-1 JBR17N-1 JBR17W-1 JBR17H-1 9.81 6.87
Type 2 JBR17-2 JBR17N-2 JBR17W-2 JBR17H-2 14.1 9.87
JBR26 Type 1 JBR26-1 JBR26N-1 JBR26W-1 JBR26H-1 12.7 8.89
Type 2 JBR26-2 JBR26N-2 JBR26W-2 JBR26H-2 19.6 13.7
JBR36 Type 1 JBR36-1 JBR36N-1 JBR36W-1 JBR36H-1 15.7 11.0
Type 2 JBR36-2 JBR36N-2 JBR36W-2 JBR36H-2 27.5 19.3
JBF03 Type 1 JBF03-1 JBF03N-1 JBF03W-1 JBF03H-1 1.27 0.89
Type 2 JBF03-2 JBF03N-2 JBF03W-2 ---
JBF05 Type 1 JBF05-1 JBF05N-1 JBF05W-1 JBF05H-1 1.96 1.37
Type 2 JBF05-2 JBF05N-2 JBF05W-2 ---
JBF10 Type 1 JBF10-1 JBF10N-1 JBF10W-1 JBF10H-1 3.43 2.4
Type 2 JBF10-2 JBF10N-2 JBF10W-2 JBF10H-2
JBF12 Type 1 JBF12-1 JBF12N-1 JBF12W-1 JBF12H-1 5.49 3.84
Type 2 JBF12-2 JBF12N-2 JBF12W-2 JBF12H-2
JBF17 Type 1 JBF17-1 JBF17N-1 JBF17W-1 JBF17H-1 6.86 4.8
Type 2 JBF17-2 JBF17N-2 JBF17W-2 JBF17H-2 9.81 6.87
JBF26 Type 1 JBF26-1 JBF26N-1 JBF26W-1 JBF26H-1 8.83 6.18
Type 2 JBF26-2 JBF26N-2 JBF26W-2 JBF26H-2 13.7 9.59
JBF36 Type 1 JBF36-1 JBF36N-1 JBF36W-1 JBF36H-1 9.81 6.87
Type 2 JBF36-2 JBF36N-2 JBF36W-2 JBF36H-2 18.6 13.0
Back to top of this page

Double flange roller type

size&
Roller type		 Shaft type Supported specifications Allowable Load Water-resistant
Allowable Load
Grease specifications Grease-free
specification		 Water-resistant Heat-resistant specifications kN kN
JBFF03 Type 1 JBFF03-1 JBFF03N-1 JBFF03W-1 JBFF03H-1 1.27 0.89
Type 2 JBFF03-2 JBFF03N-2 JBFF03W-2 ---
JBFF05 Type 1 JBFF05-1 JBFF05N-1 JBFF05W-1 JBFF05H-1 1.67 1.17
Type 2 JBFF05-2 JBFF05N-2 JBFF05W-2 ---
JBFF10 Type 1 JBFF10-1 JBFF10N-1 JBFF10W-1 JBFF10H-1 2.75 1.93
Type 2 JBFF10-2 JBFF10N-2 JBFF10W-2 JBFF10H-2
JBFF12 Type 1 JBFF12-1 JBFF12N-1 JBFF12W-1 JBFF12H-1 3.63 2.54
Type 2 JBFF12-2 JBFF12N-2 JBFF12W-2 JBFF12H-2
JBFF17 Type 1 JBFF17-1 JBFF17N-1 JBFF17W-1 JBFF17H-1 6.86 4.8
Type 2 JBFF17-2 JBFF17N-2 JBFF17W-2 JBFF17H-2
Back to top of this page

Tapered roller type

size&
Roller type		 Shaft type Supported specifications Allowable Load Water-resistant
Allowable Load
Grease specifications Grease-free
specification		 Water-resistant Heat-resistant specifications kN kN
JBTF03 Type 1 JBTF03-1 JBTF03N-1 JBTF03W-1 JBTF03H-1 1.27 0.89
Type 2 JBTF03-2 JBTF03N-2 JBTF03W-2 ---
JBTF05 Type 1 JBTF05-1 JBTF05N-1 JBTF05W-1 JBTF05H-1 1.96 1.37
Type 2 JBTF05-2 JBTF05N-2 JBTF05W-2 ---
JBTF10 Type 1 JBTF10-1 JBTF10N-1 JBTF10W-1 JBTF10H-1 3.43 2.4
Type 2 JBTF10-2 JBTF10N-2 JBTF10W-2 JBTF10H-2
JBTF12 Type 1 JBTF12-1 JBTF12N-1 JBTF12W-1 JBTF12H-1 5.49 3.84
Type 2 JBTF12-2 JBTF12N-2 JBTF12W-2 JBTF12H-2
JBTF17 Type 1 JBTF17-1 JBTF17N-1 JBTF17W-1 JBTF17H-1 6.86 4.8
Type 2 JBTF17-2 JBTF17N-2 JBTF17W-2 JBTF17H-2 9.81 6.87
Back to top of this page

Urethane lined roller type

size&
Roller type		 Shaft type Supported specifications Allowable Load
Grease specifications Grease-free
specification		 kN
JBUR03 Type 1 JBUR03-1 JBUR03N-1 0.29
Type 2 JBUR03-2 JBUR03N-2
JBUR05 Type 1 JBUR05-1 JBUR05N-1 0.59
Type 2 JBUR05-2 JBUR05N-2
JBUR10 Type 1 JBUR10-1 JBUR10N-1 0.98
Type 2 JBUR10-2 JBUR10N-2
JBUR12 Type 1 JBUR12-1 JBUR12N-1 1.47
Type 2 JBUR12-2 JBUR12N-2
JBUR17 Type 1 JBUR17-1 JBUR17N-1 2.94
Type 2 JBUR17-2 JBUR17N-2
Back to top of this page
