Product Info　Plastic modular chain

Wide conveying surface increases production capacity

Plastic modular chain is a type of conveyor belt that can achieve a wide conveying surface by combining plastic modular links like bricks, and is available in wide and mold-to-width types.

Chain types such as "closed type," "open type," "net type," "flight type," "rubber type," and "magnet type" can be selected according to the application and shape of the transported goods.

We also have a wide range of conveyor peripheral parts, such as dedicated sprockets, idlers, Plastic rail, chain guide parts, and bearing units.

proservice logo

Learn more

table of contents

Plastic modular chain Related Information

Features of Plastic modular chain

Common Features

  • Feature 1: All parts are made of plastic, making it lightweight and easy to handle. >>See details
  • Feature 2: Chain can be easily cut and connect, allowing for partial repairs and reduced maintenance time. >>See details
  • Feature 3: A wide range of layouts are possible with the extensive lineup >>See details
×
(You can move it by dragging it)

All parts are made of plastic, making them lightweight and easy to handle

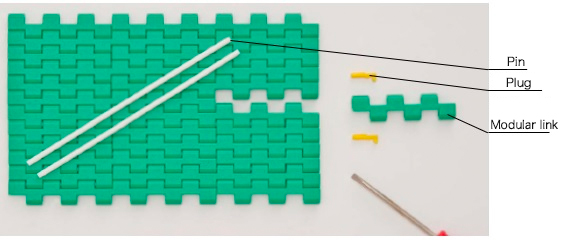

Plastic modular chain are made up of three plastic components: "module links," "pins," and "plugs," and are much lighter than metal chains.

Plastic modular chain
×
(You can move it by dragging it)

Chain can be easily cut and connect, allowing for partial repairs and reduced maintenance time.

No special tools are required for disconnection and connection, making the process easy. Please refer to the instruction manual for each product for instructions on how to disassemble and connect each part.

Wide type pinning method mold-to-width type pinning method
Slide plug plug Snap attachment Slit pin Special stepped plastic pin
Slide plug plug Snap attachment Slit pin Special stepped plastic pin
×
(You can move it by dragging it)

A wide range of layouts are possible thanks to the extensive lineup

It can be used in a variety of layouts, environments and locations, including not only horizontal conveyance but also inclined conveyance, 90-degree, 180-degree and S-curve conveyance, forward and reverse conveyance, and shower equipment.

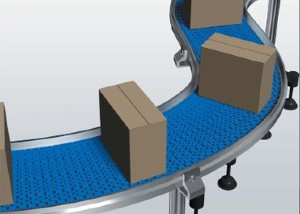

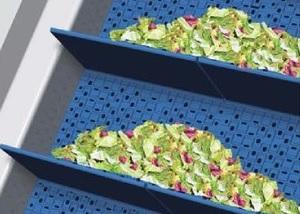

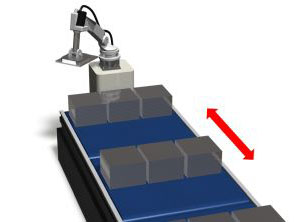

Inclined conveyance S-curve conveyance Forward and reverse transport
Inclined conveyance S-curve conveyance Forward and reverse transport

Features of the wide and mold-to-width types

Wide conveying surface increases production capacity

By combining plastic modules of different widths like bricks, the width of the chain can be configured as desired.

allowable tension of Plastic modular chain is structurally proportional to the chain width, making it possible to obtain great tensile strength.

Chain width and pitch vary depending on the product. Please check the individual product pages.

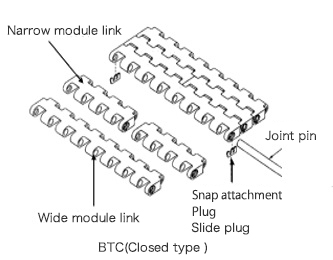

The wide type of Plastic modular chain can be adjusted not only in length but also in width.

Wide Type
Wide conveying surface increases production capacity

Chain Type

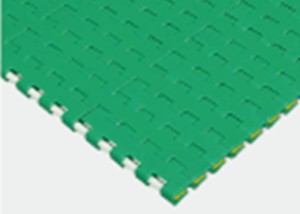

Closed type

Closed type
  • - The top surface of the plate is smooth and has no holes
  • - Lineup of magnet types with magnets built into the chain
  • - Non-slip type ideal for transporting personnel is also available

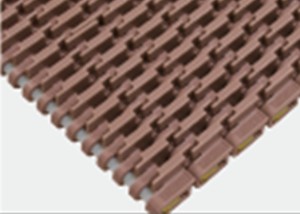

Raised rib type

Raised rib type
  • ・When used in conjunction with a transfer plate, it prevents items from being pulled or falling over when transferring to or from a conveyor or at the entrance or exit of a machine.
  • ・Large perforated plate structure provides excellent drainage.

Open type

Open type
  • - There is a hole on the top surface of the plate
  • - Superior cleaning performance compared to closed types, ideal for draining and cooling applications

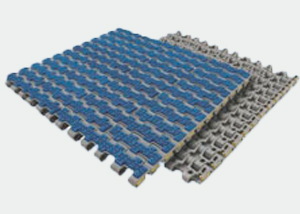

Rubber type

Rubber type
  • - High friction type with rubber two-color molding (integral molding) on the conveying surface
  • ・The inclined conveyance of the plate upper surface prevents the case and other conveyed items from slipping.

Net Type

Net Type
  • - There is a hole on the top surface of the plate
  • - Superior cleaning performance compared to closed types, ideal for draining and cooling applications
  • - There are types with a larger opening due to the hinge structure and types with a long hole based on the closed type.

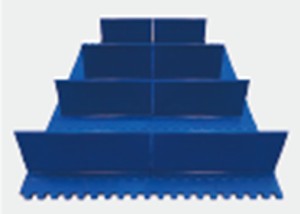

Flight Type

Flight Type
  • ・Incline transport of boxes, cases, loose items, etc. is possible
  • ・Flight height and installation intervals can be changed upon request

Wide type list

Chains from the same series have the same chain pitch value.

×
(You can move it by dragging it)

WT0400 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 4.5
Purpose For straight running
Chain Type Closed type
-
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features -
Model WT0405-W
Chain width mm 90～945
Organizational Unit Every 45mm
×
(You can move it by dragging it)

WT0700 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 7.5
Purpose For straight running
Chain Type Closed type
-
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features -
Model WT0705-W
Chain width mm 50～2000
Organizational Unit Every 50mm
×
(You can move it by dragging it)

WT1300 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 13.1
Purpose For straight running
Chain Type Open type
-
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features -
Model WT1306-W
Chain width mm 50～3200
Organizational Unit Every 50mm
×
(You can move it by dragging it)

WT1500 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 15
Purpose For straight running
Chain Type Closed type Open type
-
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features - RN specifications Meandering prevention attachment available Meandering prevention attachment available
For 90 degree conversion transfer		 Meandering prevention attachment available
For 90 degree conversion transfer
RN specifications		 -
Model WT1505-K WT1505RN-K WT1505G-K WT1505GTO-K WT1505GTORN-K WT1506-K
Chain width mm 76.2～3733.8 152.4～3733.8 235.6～3740.8 76.2～3733.8
Organizational Unit Every 76.2 mm
×
(You can move it by dragging it)

WT1510 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 15
Purpose For straight running
Chain Type Closed type Open type
- Rubber type -
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features - Meandering prevention attachment available -
Model WT1515-W WT1515G-W WT1515VG-W WT1516-W
Chain width mm 50～2300 100～2300 50～2300
Organizational Unit Every 50mm
Chain pitch mm 15
Purpose For straight running
Chain Type Closed type Open type Closed type Open type
Flight Type
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features - Includes float-preventive tabs
Model WT1515F-W WT1516F-W WT1515T-F-W WT1516T-F-W
Chain width mm 50～2300 100～2300
Organizational Unit Every 50mm
×
(You can move it by dragging it)

BT5 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 15
Purpose For straight running
Chain Type Net Type Closed type
-
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features - Meandering prevention attachment available - Meandering prevention attachment available
Model BTN5 BTN5-A BTC5 BTC5-A
Chain width mm 76～3648
Organizational Unit Every 76mm
×
(You can move it by dragging it)

BT6 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 19.05
Purpose For straight running
Chain Type Closed type
-
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features - RN specifications Includes float-preventive tabs Includes float-preventive tabs
RN specifications
Model BTC6 BTC6RN BTC6-T BTC6RN-T
Chain width mm 76.2～2514.6 152.4～2514.6
Organizational Unit Every 76.2 mm
Chain pitch mm 19.05
Purpose For straight running
Chain Type Open type Net Type
- Perforated type -
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features - RN specifications -
Model BTO6 BTO6RN BTCP6 BTN6
Chain width mm 76.2～2514.6
Organizational Unit Every 76.2 mm
×
(You can move it by dragging it)

WT1900 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 19.05
Purpose For straight running
Chain Type Raised rib type
-
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features -
Model WT1907-K
Chain width mm 228.6～3835.4
Organizational Unit Every 76.2 mm
×
(You can move it by dragging it)

BT8 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 25.4
Purpose For straight running
Chain Type Closed type
- Magnet type
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features - Meandering prevention attachment available -
Model BTC8 BTC8-A BTM8H
Chain width mm 76.2～2514.6 152.4～
Organizational Unit Every 76.2 mm Every 152.4 mm
×
(You can move it by dragging it)

WT2250 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 25.4
Purpose For straight running
Chain Type Open type Closed type
- Flight Type Rubber type
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features -
Model WT2250FG WT2250FG Flight Type WT2250VG
Chain width mm 85～
Organizational Unit Every 85mm
Starting in July 2026, some model numbers will undergo specification changes or sales will be discontinued.
Please click here for details.
×
(You can move it by dragging it)

WT2500 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 25.4
Purpose For straight running
Chain Type Closed type Open type
-
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features -
Model WT2505-K WT2506-K
Chain width mm 76.2～
Organizational Unit Every 76.2 mm
×
(You can move it by dragging it)

WT2510 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 25.4
Purpose For straight running
Chain Type Closed type
- Flight Type
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features - Meandering prevention attachment available -
Model WT2515-W WT2515G-W WT2515F-W
Chain width mm 85～3230 170～3230
Organizational Unit Every 85mm
×
(You can move it by dragging it)

WT2520 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 25.4
Purpose For straight running
Chain Type Closed type
- Rubber type
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features -
Model WT2525-K WT2525VG-K
Chain width mm 76.2～2362.2
Organizational Unit Every 76.2 mm
×
(You can move it by dragging it)

WT2700 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 27.2
Purpose For straight running
Chain Type Closed type Open type
-
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features -
Model WT2705-K WT2706-K
Chain width mm 228.6～3835.4
Organizational Unit Every 76.2 mm
×
(You can move it by dragging it)

WT3000 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 30
Purpose For straight running
Chain Type Closed type
-
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features - Meandering prevention attachment available
Model WT3005-K WT3005G-K
Chain width mm 76.2～3733.8 152.4～3733.8
Organizational Unit Every 76.2 mm
×
(You can move it by dragging it)

WTU3010 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 30
Purpose For curved transport
Chain Type Closed type
-
Main body chain specifications -
Pin Type -
Pin Material Special engineering plastics stainless steel
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features -
Model WTU3015T-K WTU3015T-K-SUSP
Chain width mm 228.6～762.0
Organizational Unit Every 76.2 mm
×
(You can move it by dragging it)

WT3080 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 30
Purpose For straight running
Chain Type Open type
-
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features - Meandering prevention attachment available
Model WT3086-K WT3086G-K
Chain width mm 170～
Organizational Unit Every 85mm
×
(You can move it by dragging it)

WT3100 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 31.75
Purpose For straight running
Chain Type Closed type
-
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features -
Model WT3109-W
Chain width mm 300～
Organizational Unit Every 100mm
×
(You can move it by dragging it)

WT3810 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 38
Purpose For straight running
Chain Type Open type
-
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features -
Model WT3816-K
Chain width mm 200～
Organizational Unit Every 100mm
×
(You can move it by dragging it)

WT3820 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 38.1
Purpose For straight running
Chain Type Raised rib type
-
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features -
Model WT3827-K
Chain width mm 457.2～
Organizational Unit Every 152.4 mm
×
(You can move it by dragging it)

WT3830 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 38.1
Purpose For straight running
Chain Type Closed type
-
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features - Includes float-preventive tabs
Model WT3835-K WT3835RN-K WT3835-T WT3835TRN-K
Chain width mm 152.4～
Organizational Unit Every 76.2 mm
×
(You can move it by dragging it)

BT16 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 50.8
Purpose For straight running
Chain Type Closed type
Strong type
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features -
Model BTH16
Chain width mm 400～
Organizational Unit Every 100mm
×
(You can move it by dragging it)

WT5700 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 57.15
Purpose For straight running
Chain Type Raised rib type
-
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features -
Model WT5707-K
Chain width mm 457.2～
Organizational Unit Every 152.4 mm
×
(You can move it by dragging it)

WT6300 series wide type

Lineup

*Click on the format to display detailed information.

Chain pitch mm 63.5
Purpose For straight running
Chain Type Open type
Strong type
Main body chain specifications -
Pin Type -
Pin Material -
Pin Shape -
Top plate thickness mm -
Pusher Material -
Other features -
Model WT6306-W
Chain width mm 400～
Organizational Unit Every 100mm
