Sprockets for Water Treatment Chain
- Chain life can be greatly affected by the combination with the sprocket.
- Tsubakimoto Chain has developed tooth block type gears with consideration for corrosion resistance and wear resistance, and we also manufacture gears in various materials to meet various customer requests.
Product List
Sprockets for sludge collectors: ACP, ACR, and ACS types
In addition to the one-piece type, we also offer a lineup of replaceable tooth types (block and ring replacement teeth).
Since there is no need to disassemble the shaft, replacement work hours are significantly reduced while also reducing parts costs and waste.
This contributes to improved maintenance efficiency, cost reduction, and waste reduction.

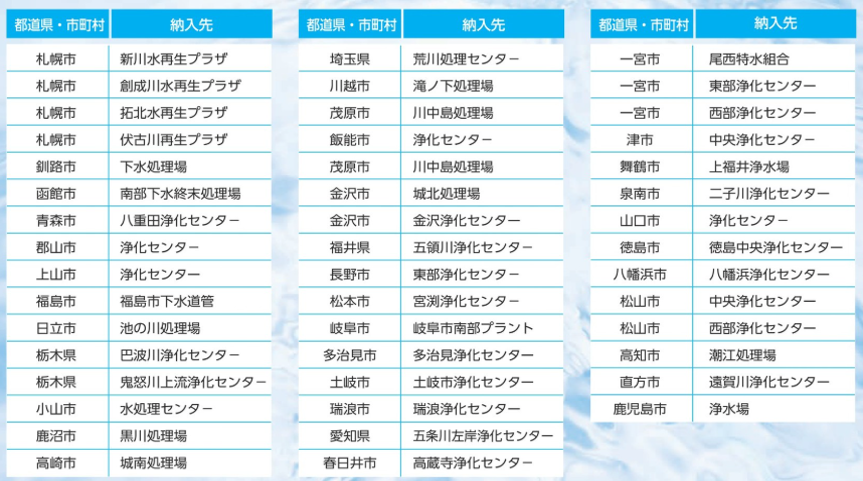

・下水道事業団、民間開発技術審査保障報告書の登録商品です。納入実績多数。

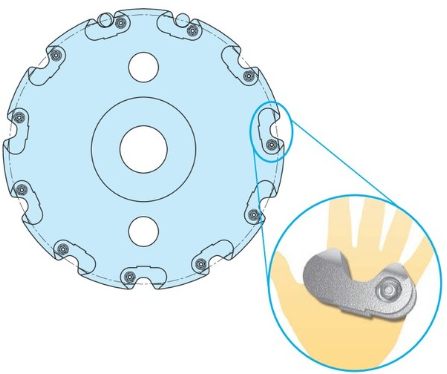

· Only the teeth can be replaced without removing it from the shaft. Mass is also reduced by approximately 30%. Lightweight design makes transportation and handling easier (cannot be used when stuck).
・If replacement of the main body is not necessary, further cost reduction, shorter delivery, and reduced waste
Model number:
ACP04152/P～、ACR8□□～、ACS□□□□□～
size :
ACP04152
ACR810～ACR819
ACS13～ACS35
Water Screen sprocket JAC type
This is a sprocket for Water Screen Chain JAC-type used in water screens, drainage machines, etc.
In addition to the one-piece type, we also offer a lineup of replaceable tooth types (replaceable ring teeth), which significantly reduces replacement work hours and reduces parts costs and waste by replacing only the sprocket or worn part without the need to disassemble the shaft, contributing to improved maintenance efficiency, cost reduction, and waste reduction.
Model number:
JAC□□□□□～
size :
JAC08 ton to JAC26 ton
JAC6205
Water treatment conveyor sprocket BF type
This is a sprocket for the BF type drive chain used in water treatment facilities.
In addition to the one-piece type, we also offer a lineup of two-piece (C-split type) and replaceable tooth type (ring-type replaceable teeth).
The replacement time is significantly reduced, and only the sprocket or worn part can be replaced without disassembling the shaft.
This contributes to improved maintenance efficiency, cost reduction, and waste reduction.
Model number:
BF□□□～
size :
BF120～BF240
Water treatment conveyor sprocket ACRD type
This is a sprocket for ACRD type drive chains used in water treatment facilities.
In addition to the one-piece type, we also offer a lineup of two-piece (C-split type) and replaceable tooth type (ring-type replaceable teeth).
This significantly reduces replacement labor and reduces parts costs and waste by replacing only the sprocket or worn part without disassembling the shaft, contributing to improved maintenance efficiency, cost reduction, and waste reduction.
Model number:
ACRD□□～
size :
ACRD08～ACRD17
